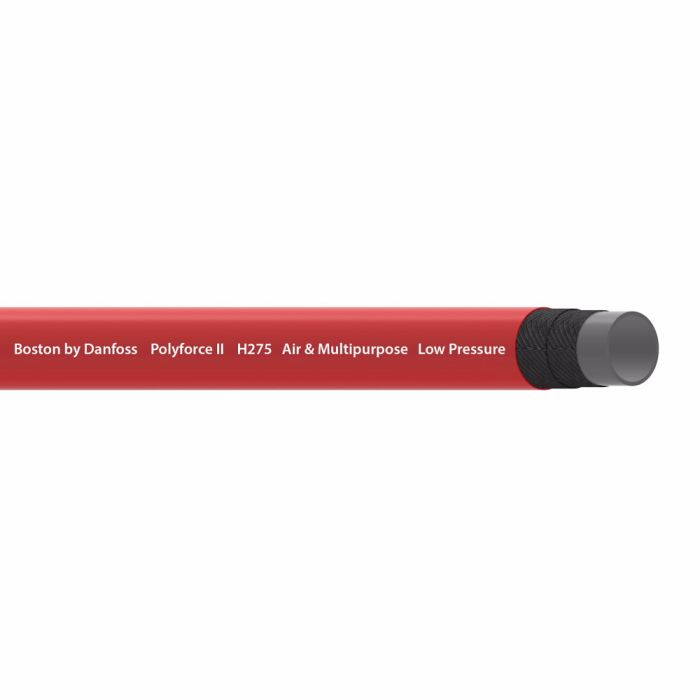

DANFOSS / EATON POLYFORCE RED

Description & Features

The Eaton Polyforce Red is a premium choice for low-pressure air and water applications. Constructed with a single ply braid and a PVC cover it offers remarkable durability.

Abrasion resistance: Premium

Color: Red

Cover Style: Pin-Pricked

Minimum Bend Radius: 2.5

Min. Working Temp: -10

Qualified Hose Fittings: E Z 265 P 1A Barbed inserts Quick acting or long shank Quick disconnect

Certifications: SAE J517

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00115Q19353	Application General purpose, low pressure, air and water.	Certifications SAE J517	Color Red	Conductivity 30	Construction 1 Ply Braid	Cover Material PVC	Cover Style Pin-Pricked	Dash Size -12	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 2.50	Minimum Bend Radius 2.5	Minimum Working Temperature -10	NMFC 70	Product Width 1.03	Qualified Hose Fittings E, Z, 265 P, 1A, Barbed inserts, Quick acting or long shank, Quick disconnect	Reinforcement Material Textile	Sub Brand None	Supplier Part Number H27512RD-500R	Tube Material Polyvinyl Chloride (PVC)	Product Weight 0.11 lbs

Product Questions & Answers (2)

Question by: Phil W on Jul 11, 2025, 8:37 AM

got a low-pressure air line setup in the shop. is this Polyforce Red hose meant for air and water or is it more of a hydraulic thing

Answer by: Customer Support on Jul 12, 2025, 9:39 PM

For low-pressure service, it fits right in for general-purpose air and water use. It is built with a single ply braid reinforcement and a PVC tube and cover, so it is not positioned as a high-pressure hydraulic hose in this description.

Question by: Travis B on Dec 14, 2025, 5:44 PM

Reckon this hose would be alright for hooking up to my air compressor?

Answer by: Customer Support on Dec 16, 2025, 6:32 AM

This Eaton Polyforce Red hose is indeed suitable for low-pressure air applications, among other general uses. It's built with a single ply braid and PVC cover, making it plenty durable for that kind of work.
