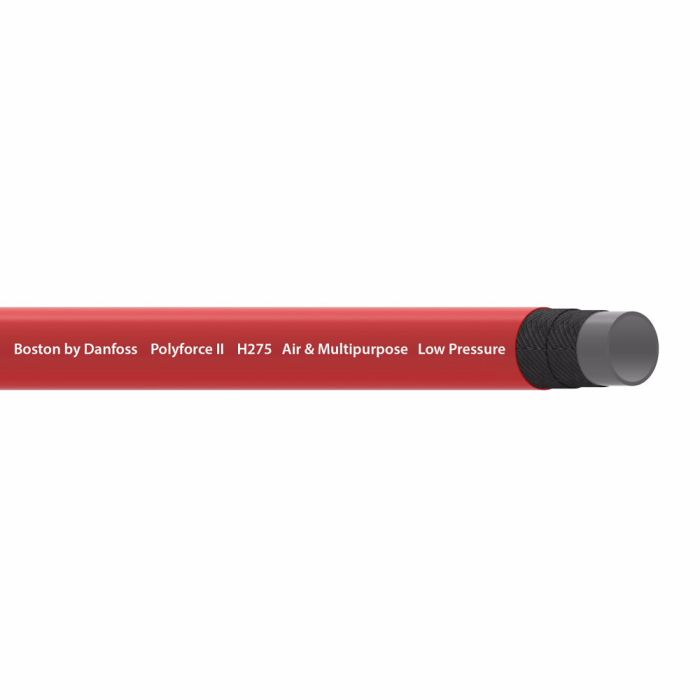

DANFOSS / EATON POLYFORCE II RED 11/4 100FT

Description & Features

Rated for general purpose air and water service, the Danfoss / Eaton Polyforce II Red 11/4 100Ft is a low-pressure industrial hose built for broad-ranging light-duty applications across industrial facilities. The 1-1/4 inch (Dash -20) hose is supplied in a 100-foot length, making it a practical stock choice for high-use environments.

Construction centers on a polyvinyl chloride tube and cover with a single-ply textile braid reinforcement. The red PVC cover is pin-pricked and rated for premium abrasion resistance, while the conductive design helps manage static buildup in applicable settings. Compatible fittings include E, Z, 265P, 1A, barbed inserts, quick-acting or long shank, and quick disconnect configurations. The hose meets SAE J517 certification and carries a minimum bend radius of 3 inches, with a minimum working temperature of -10°F.

SKU: H27520RD-100

Supplier Part Number (MPN): H27520RD-100

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00115X00592	Application General purpose, low pressure, air and water.	Certifications SAE J517	Color Red	Conductivity 30	Construction 1 Ply Braid	Cover Material PVC	Cover Style Pin-Pricked	Dash Size -20	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 3	Minimum Bend Radius 3	Minimum Working Temperature -10	NMFC 70	Product Width 1.69	Qualified Hose Fittings E, Z, 265 P, 1A, Barbed inserts, Quick acting or long shank, Quick disconnect	Reinforcement Material Textile	Sub Brand None	Supplier Part Number H27520RD-100	Tube Material Polyvinyl Chloride (PVC)	Product Weight 0.20 lbs

Product Questions & Answers (1)

Question by: Lyle H on Dec 1, 2025, 3:22 PM

What's the lowest temp this hose can handle without gettin' brittle on me?

Answer by: Customer Support on Dec 3, 2025, 7:44 AM

This hose stays flexible down to -10°F, so it should hold up in colder conditions without any trouble.
