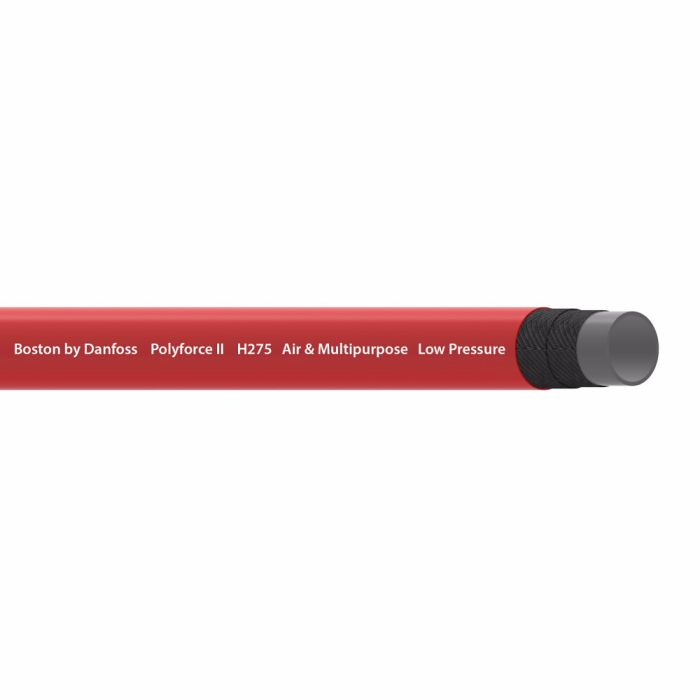

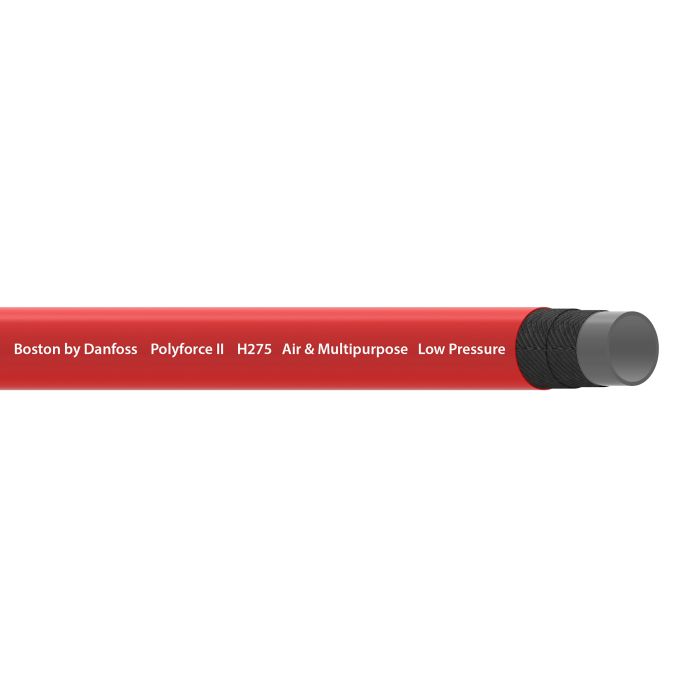

Danfoss / Eaton Polyforce II RED 100FT

Description & Features

Designed for general purpose air and water service, this -24 dash size hose handles low-pressure applications where flexibility and durability are priorities. The Danfoss / Eaton Polyforce II Red 100Ft features a Polyvinyl Chloride tube and cover with a single-ply textile braid reinforcement, giving it a balance of light weight and reliable service life. The pin-pricked PVC cover supports conductive performance and offers premium abrasion resistance in demanding environments.

Rated to SAE J517 and built to work across a temperature range starting at -10°F, this hose is compatible with a broad selection of fittings, including E, Z, 265P, 1A, barbed inserts, quick-acting or long-shank, and quick-disconnect types. With a minimum bend radius of 3.5 inches and a product width of 1.94 inches, it suits a range of routing configurations in industrial air and fluid handling setups.

SKU: H27524RD-100

Supplier Part Number (MPN): H27524RD-100

Specifications

Abrasion Resistance 28	Application General purpose, low pressure, air and water.	Certifications SAE J517	Color Red	Conductivity 30	Construction 1 Ply Braid	Cover Material PVC	Cover Style Pin-Pricked	Dash Size -24	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 3.50	Minimum Bend Radius 3.5	Minimum Working Temperature -10	NMFC 70	Product Width 1.94	Qualified Hose Fittings E, Z, 265 P, 1A, Barbed inserts, Quick acting or long shank, Quick disconnect	Reinforcement Material Textile	Sub Brand None	Supplier Part Number H27524RD-100	Tube Material Polyvinyl Chloride (PVC)	Product Weight 0.23 lbs

Product Questions & Answers (1)

Question by: Kurt A on Sep 18, 2025, 3:48 PM

What kind of fittings work with this hose? I've got some barbed inserts laying around, would those be okay?

Answer by: Customer Support on Sep 20, 2025, 8:09 AM

This hose is qualified to work with a broad selection of fittings, including E, Z, 265P, 1A, barbed inserts, quick-acting or long-shank, and quick-disconnect types.
