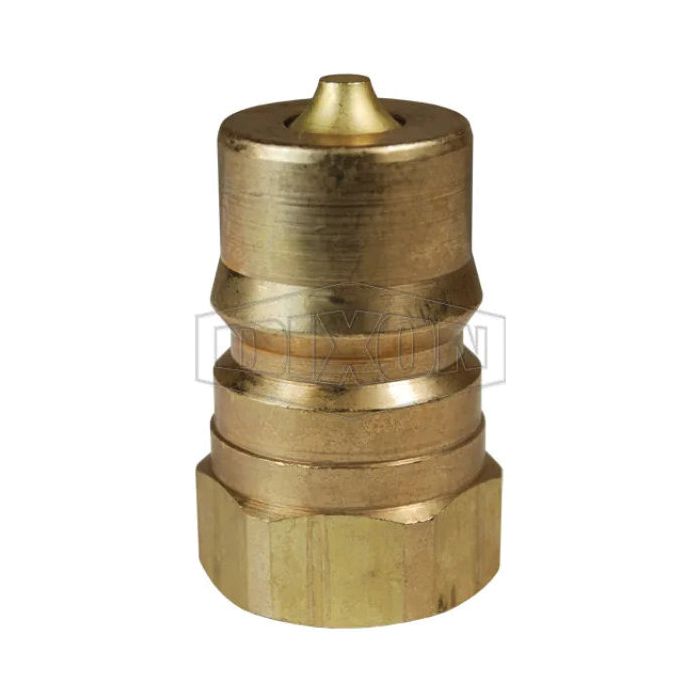

1/4 ISO-B Nipple, 1/4 NPTF, Brass 100002

Ask A Question

Description & Features

Constructed from brass, this 1/4 ISO-B Nipple, 1/4 NPTF is a male quick-connect nipple designed for use in ISO-B (Pioneer-style) hydraulic coupling systems. The 1/4 NPTF thread provides a dry-seal connection that resists leakage under pressure without the need for additional thread sealant. Brass construction makes it well suited for applications where corrosion resistance and compatibility with hydraulic fluids, water-based media, and light petroleum products are required.

Sourced from Dixon Valve & Co, this fitting is a practical choice for connecting hydraulic lines in mobile equipment, agricultural machinery, and industrial fluid transfer applications where ISO-B interchange compatibility is specified.

SKU: H2F2-B

Supplier Part Number (MPN): H2F2-B

Specifications

Brand
DIXON
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, Quick-Disconnect
Connection Type 1
Quick Disconnect
Connection Type 2
Female NPTF
Dimensions
0.83 in OD x 1.55 in L
Fitting Type
Plug
Hex Size
3/4 in
Material
Brass
Material Construction
Brass
Maximum Operating Pressure
3000 psi
Operating Temperature
-40 to 250 deg F
Series
H Series
Thread Size
1/4-18

Product Questions & Answers (1)

Question by: Troy H on Mar 23, 2026, 12:24 PM
Will this here fitting work alright with regular hydraulic fluid?
Answer by: Customer Support on Mar 24, 2026, 8:58 PM
Brass construction makes it compatible with hydraulic fluids. It's also a good choice where you're using water-based media or light petroleum products.
