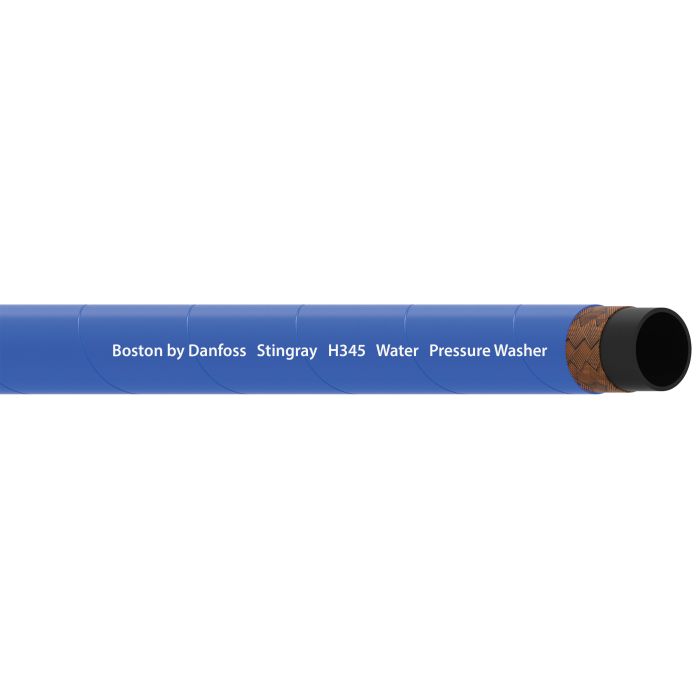

DANFOSS / EATON BULK HOSE HIGH PRESSURE

Description & Features

Rated for hydraulic and pressure wash applications, the Danfoss / Eaton Bulk Hose High Pressure is a dash-8 blue hose built for demanding industrial fluid transfer. The tube is constructed from nitrile, with a vinyl nitrile cover and a single-ply wire braid reinforcement, a combination suited to both hydraulic circuits and pressure wash environments where abrasion resistance and reliable containment are required.

The hose carries MSHA approval and is rated conductive, making it appropriate for use in regulated environments. A minimum bend radius of 3.5 inches and a minimum working temperature of -40°F support flexible routing in cold-environment installations. Lay line printing is applied via ink jet. Compatible fitting series include Z Series and 1A. With a validated impulse cycle life of 150,000 cycles, this hose is designed for sustained service under repeated pressure cycling.

SKU: H34508-500R

Supplier Part Number (MPN): H34508-500R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00115X00620	Application Hydraulics, pressure wash.	Color Blue	Compliances MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Vinyl Nitrile	Dash Size -8	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 3.50	Minimum Bend Radius 3.5	Minimum Working Temperature -40	NMFC 70	Product Width 0.78	Qualified Hose Fittings Z Series, 1A	Reinforcement Material Wire	Sub Brand None	Supplier Part Number H34508-500R	Tube Material Nitrile	Product Weight 0.26 lbs

Product Questions & Answers (1)

Question by: Bobby F on Oct 20, 2025, 11:22 AM

What's the temp range on this hose? Gotta make sure it can handle the winters up here.

Answer by: Customer Support on Oct 22, 2025, 11:00 AM

The minimum working temperature for this Danfoss/Eaton hose is -40°F, so it should hold up just fine in cold conditions.
