Bulk Hose Spiral Reinfor

Description & Features

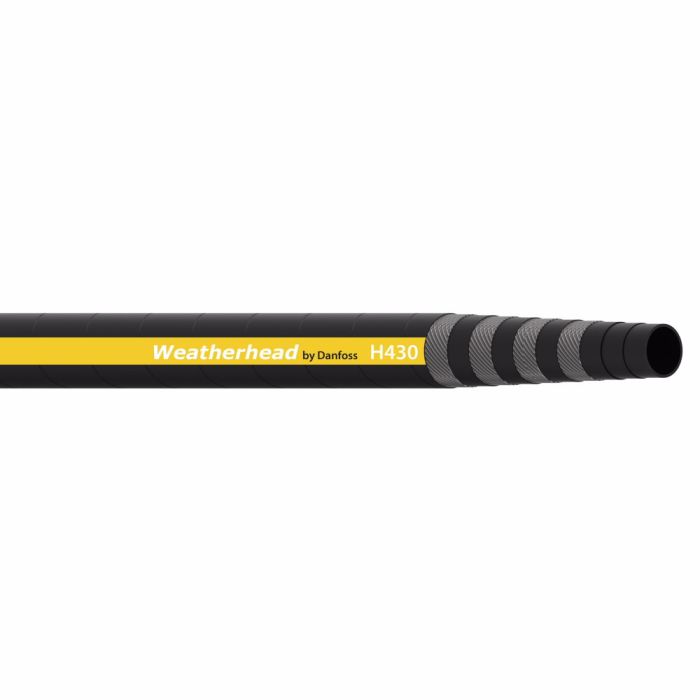

The Weatherhead by Danfoss/Eaton H430 Series rubber hydraulic spiral hose is constructed with a synthetic rubber tube and cover, and reinforced with four spiral plies of wire. This Bulk Hose Spiral Reinfor is designed for hydraulic systems using petroleum and water-based fluids in general industrial applications.

This hose assembly provides maximum durability under harsh operating conditions, and its robust construction is able to withstand the highest pressures. The system engineering extends hose assembly life. It is MSHA approved, ABS certified, and meets USCG and DNV compliances. This hose also meets EN856 Type R12, SAE 100R12, and EN856 4SP certifications. It has an impulse cycle life of 1,000,000 cycles, and a minimum bend radius of 5.91". It can be used with 430 U and 4S qualified hose fittings.

SKU: H43016-100

Supplier Part Number (MPN): null

Specifications

Abrasion Resistance 28	Application Hydraulic system service with petroleum and water based fluids, for general industrial use	Certifications EN856 Type R12\|SAE 100R12\|EN856 4SP	Class WEB-ITEM	Color Black	Compliances MSHA Approved\|ABS Certified\|USCG\|DNV	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 1000000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 5.91	Minimum Bend Radius 5.91	Minimum Working Temperature -40	Product Width 1.52	Qualified Hose Fittings 430 U, 4S	Reinforcement Material Wire	Supplier Part Number null	Supplier Part Number H43016-100	Tube Material Synthetic Rubber	Product Weight 0.72 lbs

Product Questions & Answers (1)

Question by: Frank C on Jan 5, 2026, 4:23 PM

Reckon this hose'll hold up alright in a hydraulic system on a farm tractor?

Answer by: Customer Support on Jan 7, 2026, 7:43 AM

Designed for hydraulic systems using petroleum and water-based fluids, this hose handles general industrial applications and should work well on a farm tractor. Its robust construction can also withstand high pressures.
