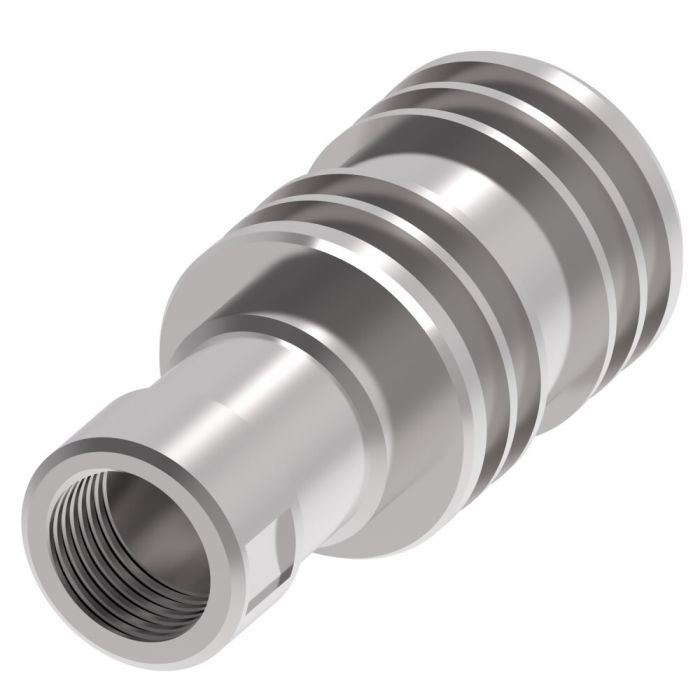

Designed for demanding fluid transfer applications across agriculture, construction, oil and gas, railway, and general hydraulic systems, the Danfoss / Eaton Socket is a 3/4-inch female half quick disconnect coupling from the Aeroquip Gromelle H5000 Series. The pull-to-connect end type allows rapid coupling and decoupling without special tools, while the 3/4-inch NPT port provides a secure threaded connection on the mating end.
Constructed from carbon steel with nitrile seals, this socket is rated for a minimum working temperature of -4°F and supports flow rates up to 14.53 gallons per minute. The ball lock internal connection and 2-way valve design deliver reliable shutoff performance, and the coupling exceeds ISO 16028 operating pressure requirements. With a female-to-female end gender configuration and broad fluid compatibility, this socket is well suited to mobile equipment, industrial machinery, and process environments including food processing, electronics, and laboratory applications.
SKU: HA0524100
Supplier Part Number (MPN): HA0524100
|
Alternate Part Numbers
MINO-00015X13880
|
Application
Automobile, Agriculture, Construction, Oil and Gas, Railway, Aeronautics, Food processing, Iron and Steel Industry, Electronics, Laboratories, General hydraulic applications
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.75
|
End Type 1
Pull to Connect
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
14.53 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-4
|
Net Pack Quantity Units
EA
|
Port Size
3/4
|
Product Material
Carbon Steel
|
Product Width
1.89
|
Seal Material
Nitrile
|
Sub Brand
Gromelle
|
Supplier Part Number
HA0524100
|
Valve Type
2 way
|
Product Weight
1.27 lbs
|
