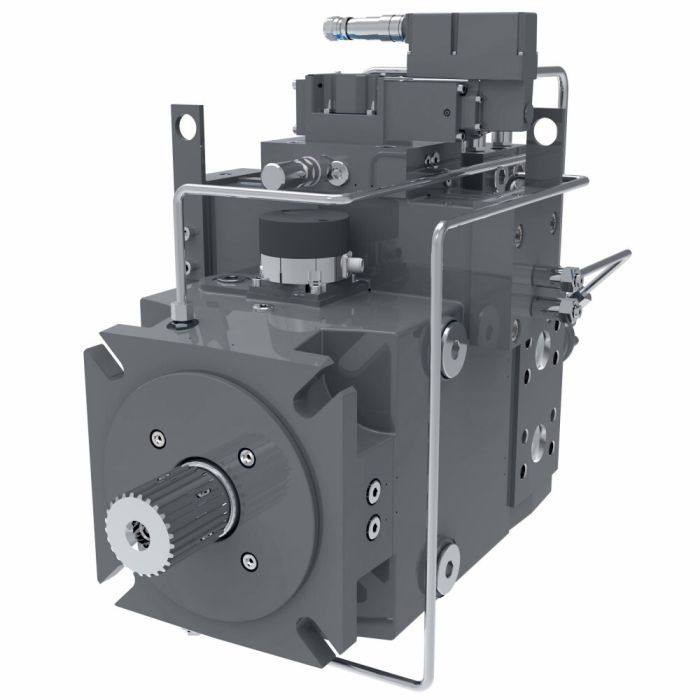

VICKERS PVXS-180M04R00C1R01SVVADF000A0K0

Ask A Question

Description & Features

The Vickers PVXS-180M04R00C1R01SVVADF000A0K0 is a variable displacement, open circuit axial piston pump from the Hydrokraft X Series, designed for demanding industrial hydraulic applications. Viton seals support compatibility with a range of hydraulic fluids, while the modular design allows for flexible configuration across different system layouts.

Typical applications include primary metals processing, power units, test stands, and mixer drives, environments where consistent performance and controllability are priorities. The X Series architecture delivers fast response times and reduced noise levels, making it well suited to installations where cycle speed and acoustic performance are factors in equipment selection.

SKU: HC806062058046

Supplier Part Number (MPN): HC806062058046

Specifications

Brand
Danfoss
Basic Standard
Metric
Configuration
Single
Control Type
Pressure Compensator
Dimensions
22.28 in L x 12.62 in W x 14.86 in H
Drive Shaft Seal Configuration
Single Shaft Seal
Drive Shaft Type
Straight Keyed
Housing Color
Jet Black
Housing Material
Iron
Inlet Type
Code 61 Flange
Main Port
SAE Port Metric Bolts
Maximum Displacement Set
Maximum Displacement Adjustment Screw
Maximum Operating Pressure
6000 psi
Mounting Flange
ISO 3019/2 160A2SW
Mounting Type
Flange
Outlet Type
Code 62 Flange
Pressure Control Options
Proportional Relief Valve and Electronic Card
Rotation Direction
Clockwise
Seal Material
FKM
Series
X Series
Special Features
Without Special Features
Thru Drive Options
SAE C
Yoke Displacement Zone
Single Side Center A
Yoke Position Indicator
Visual Indicator

Product Questions & Answers (1)

Question by: Brenda E on Jun 30, 2025, 1:24 PM
What sort of stuff is this pump typically hooked up to?
Answer by: Customer Support on Jul 2, 2025, 6:38 AM
This Vickers pump is typically found running primary metals processing, power units, test stands, and mixer drives.
