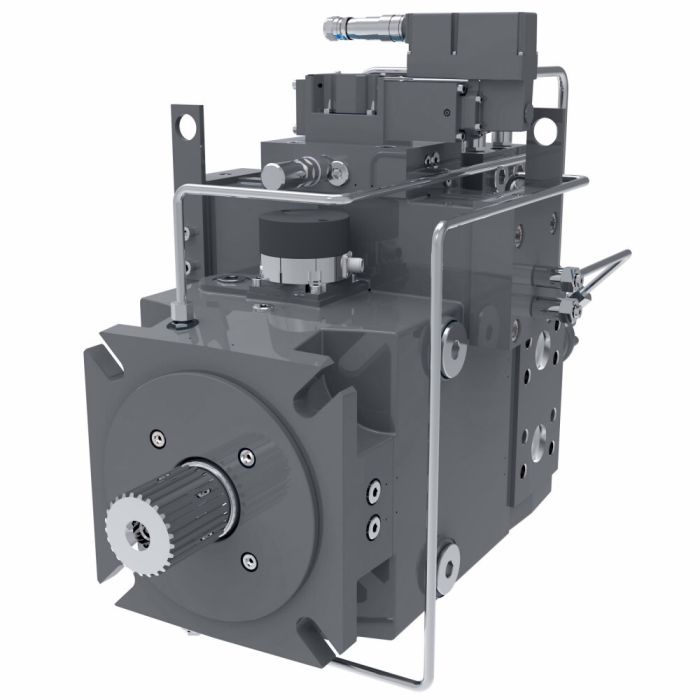

VICKERS PVXS-250M06R0001R01SV0ALR000A2F0

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers PVXS-250M06R0001R01SV0ALR000A2F0 is a variable displacement open circuit piston pump from the Hydrokraft X Series, developed under the Danfoss/Eaton product family. With FKM seals and a modular design, this pump suits applications where system configuration flexibility and reliable performance are priorities.

Fast response times make it well suited for test stands and mixer drives, while its reduced noise output is particularly relevant in primary metals and power unit installations. The modular construction supports integration flexibility across a range of open circuit hydraulic configurations.

SKU: HC806072038606

Supplier Part Number (MPN): HC806072038606

Specifications

Brand
Danfoss
Additional Functions
Pressure Limiter Override (LR)
Basic Standard
Metric
Configuration
Single
Control Type
Power Limiter Control
Dimensions
27.34 in L x 12.79 in W x 14 in H
Drive Shaft Seal Configurations
Single Shaft Seal
Drive Shaft Type
Straight Keyed
Housing Color
Jet Black
Housing Material
Iron
Inlet Type
Code 61 Flange
Main Port
SAE Port Metric Bolts
Maximum Displacement Set
Maximum Displacement Adjustment Screw
Maximum Operating Pressure
6000 psi
Mounting Flange
ISO 3019/2 200A2SW
Mounting Type
Flange
Outlet Type
Code 62 Flange
Pressure Control Options
Remote Port
Rotation Direction
Clockwise
Seal Material
FKM
Series
X Series
Special Features
Without Special Features
V-Valve Pilot Oil Sup
Solenoid Valve
Yoke Displacement Zone
Single Side Center A
Yoke Position Indicator
Without Position Indicator

Product Questions & Answers (1)

Question by: Larry R on Dec 25, 2025, 12:37 PM
Reckon this would be alright for a power unit application, or is it overkill?
Answer by: Customer Support on Dec 27, 2025, 6:16 AM
This Vickers pump is indeed suitable for power units, especially where noise reduction is a priority. Its design also lends itself well to primary metals applications, mixer drives and test stands.
