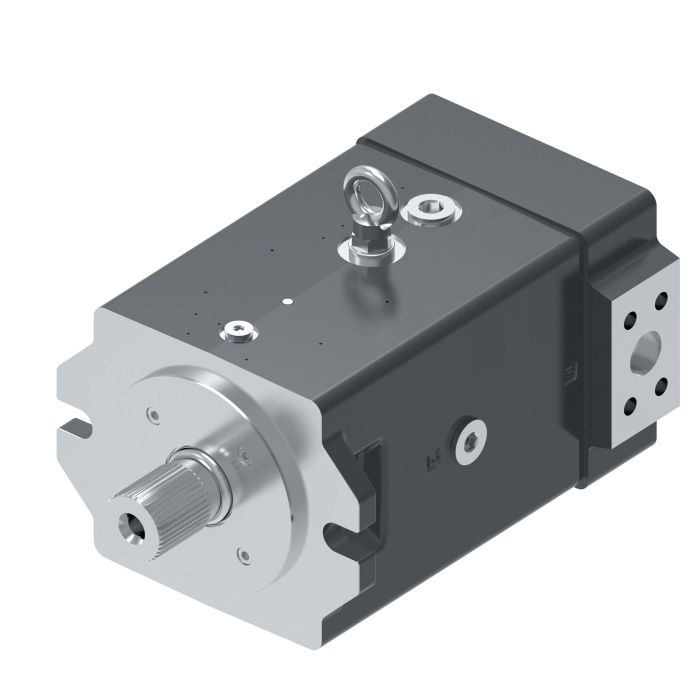

main product photo

MFWS-250M07B001R02SV0A00

Ask A Question

Description & Features

Designed for demanding fixed-displacement applications, the MFWS-250M07B001R02SV0A00 is a W Series axial piston motor from Danfoss Power Solutions, marketed under the Hydrokraft sub-brand. Built with oversized shaft bearings, it supports extended service life and through-drive capability, making it well suited to high-cycle industrial environments where bearing loads are a primary concern.

FKM seals provide reliable fluid compatibility across a range of hydraulic media. The motor is engineered to handle contaminant exposure, offering resistance to dirt and debris in less-controlled environments. Typical applications include pulp and paper processing, chemical pump drives, primary metals handling, marine winch systems, and mixer drives, reflecting the flexibility of the W Series platform across varied industrial sectors.

SKU: HC806073050301

Supplier Part Number (MPN): HC806073050301

Specifications

Brand
Danfoss
Basic Standard
Metric
Color
Jet Black
Configuration
Single
Control Type 1
No Control
Dimensions
21.18 in L x 9.21 in W x 11.22 in H
Drive Shaft Seal Configuration
Single Shaft Seal
Main Port
SAE Port Metric Bolts
Maximum Displacement Set
Maximum Displacement Adjustment Screw
Mounting Flange
ISO 3019/2-200B4HW
Mounting Type
Flange
Port Location
Side
Rotation Direction
Reversible
Seal Material
FKM
Series
W Series
Shaft Type
Splined
Special Features
Without Special Features
Yoke Displacement Zone
Single Side Center A
Yoke Position Indicator
Without Position Indicator

Product Questions & Answers (1)

Question by: Glen H on Nov 18, 2025, 4:57 PM
I've got a pretty dirty shop. How well does this motor hold up to dust and grime?
Answer by: Customer Support on Nov 20, 2025, 4:05 PM
Resistance to dirt and debris is engineered into this Hydrokraft W Series motor, which should help it perform reliably even in less-controlled, dirtier environments.
