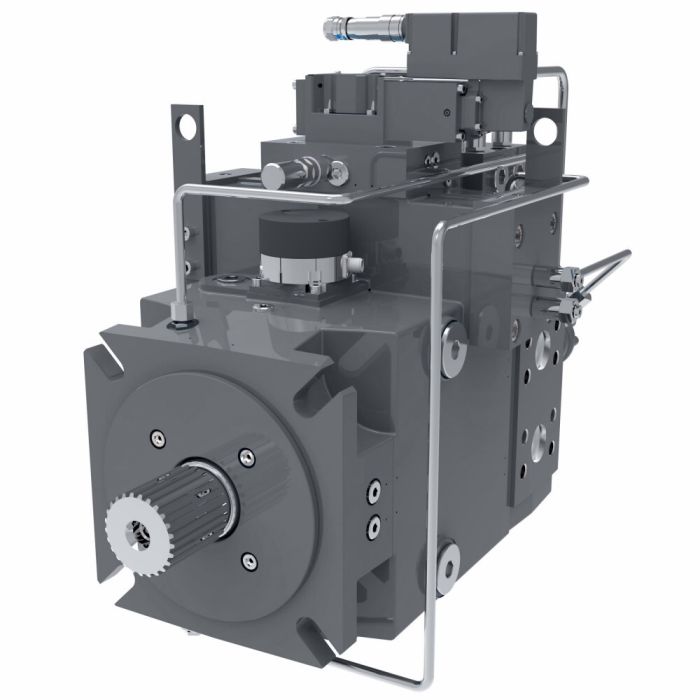

main product photo

VICKERS PVWS-360M07R0001R01SV0ALR000A200

Ask A Question

Description & Features

The Vickers PVWS-360M07R0001R01SV0ALR000A200 variable open circuit pump is part of the Hydrokraft W Series, designed for demanding applications such as primary metals power units, marine cranes, thrusters, large presses and forges, and recycling shears. It features fast response times and a modular design for flexibility.

This Eaton / Danfoss Hydrokraft pump reduces noise levels and utilizes Viton seals for durability and reliability in harsh environments. With a width of 17.05 inches, this Vickers pump offers robust performance for industrial hydraulic systems.

SKU: HC806172055501

Supplier Part Number (MPN): HC806172055501

Specifications

Brand
Danfoss
Additional Functions
Pressure Limiter Override (LR)
Basic Standard
Metric
Configuration
Single
Control Type
Power Control
Dimensions
22.24 in L x 17.05 in W x 18.11 in H
Drive Shaft Seal Configuration
Single Shaft Seal
Drive Shaft Type
Straight Keyed
Housing Color
Jet Black
Housing Material
Iron
Inlet Type
Code 61 Flange
Main Port
SAE Port Metric Bolts
Maximum Displacement Set
Maximum Displacement Adjustment Screw
Mounting Flange
ISO 3019/2-200B4HW
Mounting Type
Flange
Outlet Type
Code 62 Flange
Pressure Control Options
Includes Pilot Relief Valve and Remote Port for SP
Rotation Direction
Clockwise
Seal Material
FKM
Series
W Series
Special Features
Without Special Features
Yoke Displacement Zone
Single Side Center A for DF, LR, SP. ST, DP and ES/No Pressure Sensor One-Side for PQ Control
Yoke Position Indicator
Without Position Indicator

Product Questions & Answers (1)

Question by: Sherry F on Dec 16, 2025, 8:30 AM
Reckon this pump could handle runnin' near constant in a metal recycling setup?
Answer by: Customer Support on Dec 18, 2025, 6:02 AM
The Vickers PVWS-360M07R0001R01SV0ALR000A200 is designed for demanding applications, including recycling shears, so it should be well-suited for near-constant operation in that environment.
