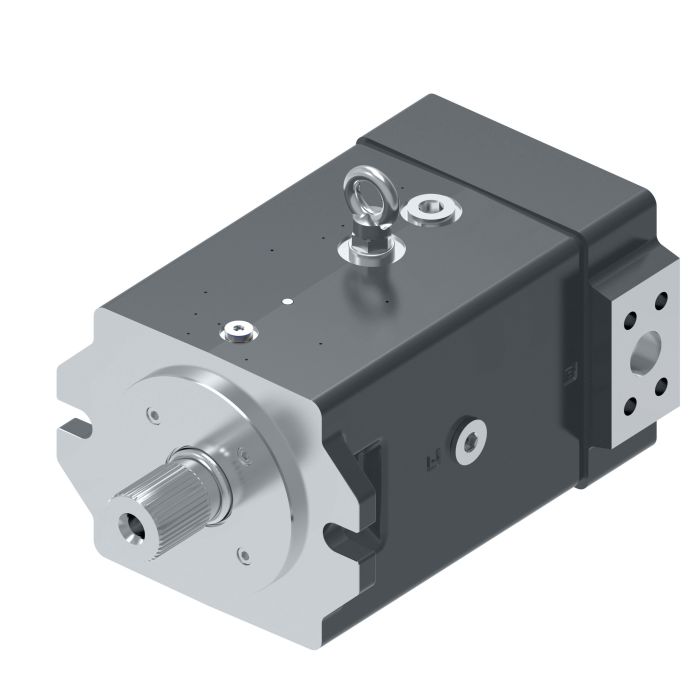

HYDROKRAFT MFWS-360M07B001R02SV0A00000A0

Ask A Question

Description & Features

The Hydrokraft W Series Fixed Axial Piston Motor is designed for demanding industrial applications such as pulp and paper processing, chemical pump drives, marine winches, mixers, and primary metals. Engineered for durability, this motor features oversized shaft bearings, enhancing longevity and through-drive capability. Its resistance to dirt and debris ensures reliable performance in harsh environments.

Manufactured by Danfoss Power Solutions, this fixed series motor utilizes an axial style and is constructed with high-quality materials, including FKM seal material, to withstand rigorous use. With a product width of 9.37 inches, it offers a compact solution while maintaining robust functionality. The Hydrokraft MFWS-360M07B001R02SV0A00000A0 delivers flexibility and adaptability, making it suitable for a wide range of industrial applications.

SKU: HC806173000100

Supplier Part Number (MPN): HC806173000100

Specifications

Brand
Danfoss
Basic Standard
Metric
Color
Jet Black
Configuration
Single
Control Type 1
No Control
Dimensions
21.18 in L x 9.37 in W x 11.22 in H
Drive Shaft Seal Configuration
Single Shaft Seal
Main Port
SAE Port Metric Bolts
Maximum Displacement Set
Maximum Displacement Adjustment Screw
Mounting Flange
ISO 3019/2-200B4HW
Mounting Type
Flange
Port Location
Side
Rotation Direction
Reversible
Seal Material
FKM
Series
W Series
Shaft Type
Splined
Special Features
Without Special Features
Yoke Displacement Zone
Single Side Center A
Yoke Position Indicator
Without Position Indicator

Product Questions & Answers (1)

Question by: Stan R on Feb 20, 2026, 5:03 PM
Hey, this Hydrokraft motor looks like it could be a good fit for a project I'm working on. What kind of stuff is it typically used for?
Answer by: Customer Support on Feb 22, 2026, 6:45 AM
Application-wise, this Hydrokraft W Series fixed axial piston motor is often found in demanding industrial settings. Think pulp and paper processing, chemical pump drives, marine winches, mixers, and even primary metals applications.
