HE2000 Series BARNES HE2000 Tube Kit (1QT A DWN W)

Description & Features

Designed for use with the Concentric HE2000 Series power unit platform, the HE2000 Series Barnes HE2000 Tube Kit (1QT A DWN W) supports both repair of existing units and custom unit assembly. These kits are compatible with the full HE2000 Series lineup, which accommodates AC and DC motor configurations, including 12V and 24V series and compound wound DC motors, and single or three-phase AC motors rated for 115V, 230V, and 460V.

The HE2000 Series supports W Series pressure-balanced gear pumps and GC Series fixed-clearance gear pumps, with cartridge-style relief valves and optional pressure-compensated flow regulators for controlled lowering speeds between 1 and 4 gpm. Recommended system cleanliness is ISO 4406 level 18/14 or better, with petroleum-based fluids in the 80–288 SSU viscosity range and an operating temperature range of -13°F to 175°F. Catalog number C1MN24 applies to this kit.

SKU: 1300943

Supplier Part Number (MPN): 1300943

Alternate Part Numbers: C1MN24

Specifications

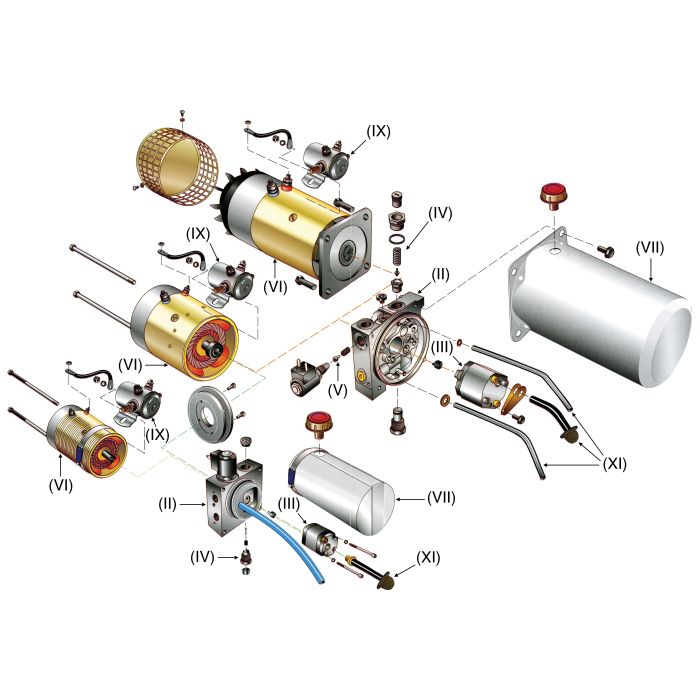

Brand Concentric Rockford Inc	Brand Concentric Rockford	Pack Size 1.00	UOM EA	Key (XI)	Supplier Part Number 1300943	Alternate Part Numbers Alternate Part Number C1MN24	Product Weight 0.33 lbs

Similar Products

Part Number	Key	Product Description
1300878	(XI)	CONCENTRIC AB BARNES TUBE KIT. STEEL. FO
1300899	(VII)	BARNES HE2000 RESERVOIR 1.9L KIT
1300908	(VII)	BARNES HE2000 RESERVOIR KIT
1300943	(XI)	BARNES HE2000 TUBE KIT (1QT A DWN W)
1303649	(II)	CONCENTRIC/HALDEX HE2000 ADAPTER
1303650	(II)	CONCENTRIC AB BARNES ADAPTER KIT FOR BAR
1303661	(IV)	BARNES HE2000 RELIEF VALVE 1500-2500 PSI
2330004	(XV)	HALDEX LEAD WIRE
1303534	(II)	BARNES HE2000 - SOLENOID RELEASE VALVE A
1303549	(II)	BARNES HE2000 - ADAPTER KIT AC MOTOR
1303570	(XIV)	CONCENTRIC/HALDEX DOUBLE ACTING PENDANT

Product Questions & Answers (4)

Question by: Lyle W on Nov 27, 2025, 4:58 PM

got a HE2000 power unit on the bench. is this tube kit actually meant for that series, or am i about to order the wrong thing

Answer by: Customer Support on Nov 29, 2025, 8:14 AM

For the Concentric HE2000 Series power units, this is the matching tube kit, catalog number C1MN24 (supplier part 1300943). The HE2000 line uses the same adapter size across all HE2000 units, so you are not juggling different adapter sizes within that series.

Question by: Rick H on Jan 29, 2026, 6:44 PM

got a piece of equipment that runs outdoors in the winter. how cold can these HE2000 units handle

Answer by: Customer Support on Jan 31, 2026, 6:32 AM

Minimum recommended operating temperature sits right at -13 degrees Fahrenheit. You will also want to ensure your cold start viscosity stays at or below 9000 SSU when firing it up in freezing weather.

Question by: Rod F on Jun 15, 2025, 9:33 PM

got an HE2000 power unit i’m messing with, is this tube kit meant for repair work or more for building a custom setup

Answer by: Customer Support on Jun 17, 2025, 11:42 AM

For HE2000 Series power units, these tube kits are used either to repair or modify an existing unit, or to build a custom HE2000 Series power unit from the ground up.

Question by: Troy J on Apr 13, 2025, 8:34 AM

trying to figure out if this tube kit works for building a custom power unit from scratch, or is it strictly a repair part?

Answer by: Customer Support on Apr 14, 2025, 9:27 PM

Both, actually. These kits are set up to either repair or modify existing HE2000 Series power units, or to build a custom HE2000 Series unit from the ground up. If you're putting something together from scratch, the Model Code is the recommended tool for figuring out which kit fits your configuration.
