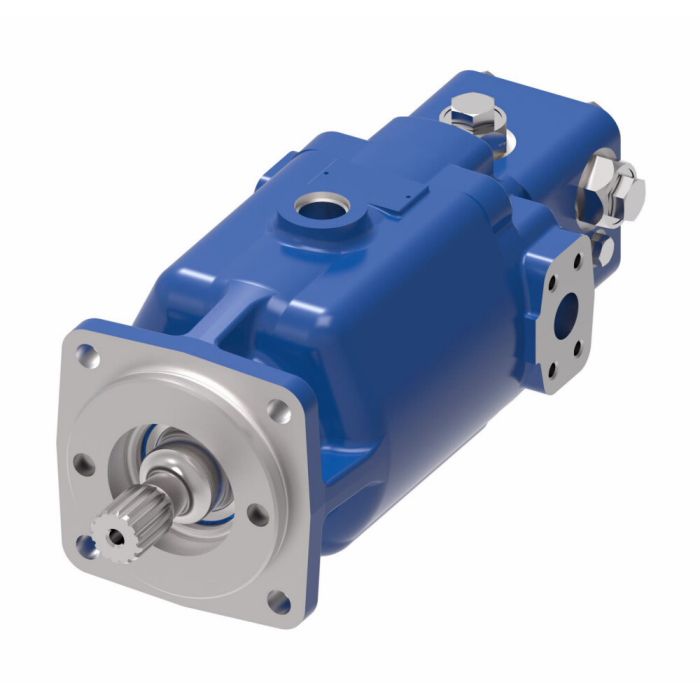

Heavy Duty Hydrostatic Motor, 3.32 cu in/rev, SAE C 4-Bolt Mounting Flange, 14T SAE C Splined Shaft, 1 Inch Code 61 Ports, 3000.00 PSI High Pressure Relief

The Eaton Char-Lynn Heavy Duty Hydrostatic Motor is engineered for demanding industrial applications, offering a displacement of 3.32 cubic inches per revolution. This robust motor features a SAE C 4-bolt mounting flange and a 14T SAE C splined shaft, ensuring secure and efficient power transmission. Rated for high pressure relief up to 3000 PSI, it is designed to withstand challenging environments while maintaining optimal performance. The motor's compact design and dynamic machine control capabilities make it Pro-FX ready, providing flexibility in various configurations.

Constructed with high-strength cast iron housings, this motor delivers superior noise damping and wall strength, while its advanced cylinder barrel design supports high speed and pressure applications. The bi-metal bearing plate combines steel for durability with bronze for enhanced bearing properties, ensuring a long service life. Suitable for use in systems with fluid viscosities ranging from 80 to 180 SSU, this motor is ideal for use requiring a speed rating of up to 4510 RPM.

SKU: 0003333-015

Supplier Part Number (MPN): 3333-015

Alternate Part Numbers: C1MH45
