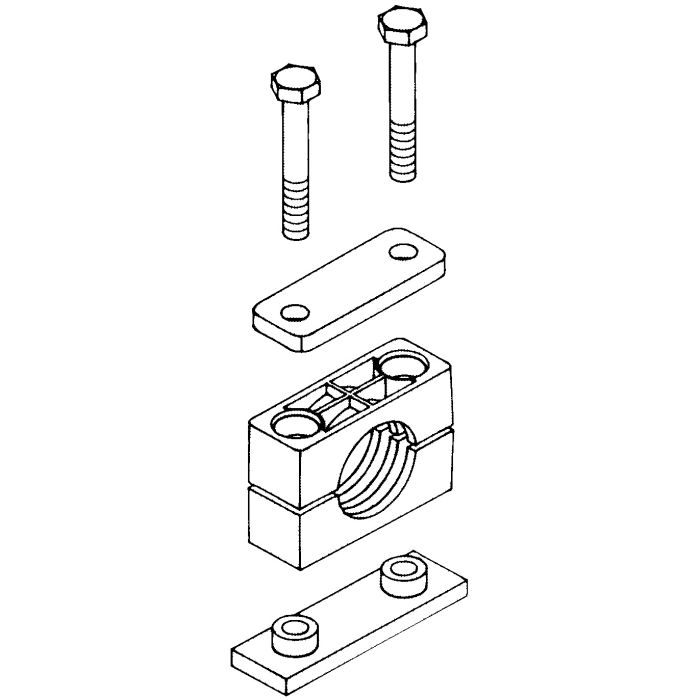

Heavy Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 26.9 mm mm Size

Description & Features

This Stauff Heavy Series Support Clamp is constructed from polypropylene for durability and corrosion resistance. Designed to support pipes and tubes with a 26.9 mm outer diameter, this support clamp is suitable for use in a variety of hydraulic applications.

Features include a single weld plate and hex head bolts with a cover plate for secure and easy installation. Recommended spacing for pipes from 3/4" is 5 feet.

SKU: STNA29288

Specifications

B2 1.18	Body I.D. Profiled	Group 4s	H2 2.80	H3 1.27	I1 2.77	Materials Polypropylene	Package Qty. 1	Pipe Size 0.75	Size 26.9 mm	Thread Sealant No	Product Weight 0.85 lbs

Product Questions & Answers (1)

Question by: Hubert C on Dec 19, 2025, 4:38 PM

What size pipe is this clamp meant for? Just want to make sure it'll fit what I'm working with.

Answer by: Customer Support on Dec 20, 2025, 5:15 PM

This Stauff clamp is designed to support pipes or tubes with a 26.9 mm (0.75 inch) outer diameter.
