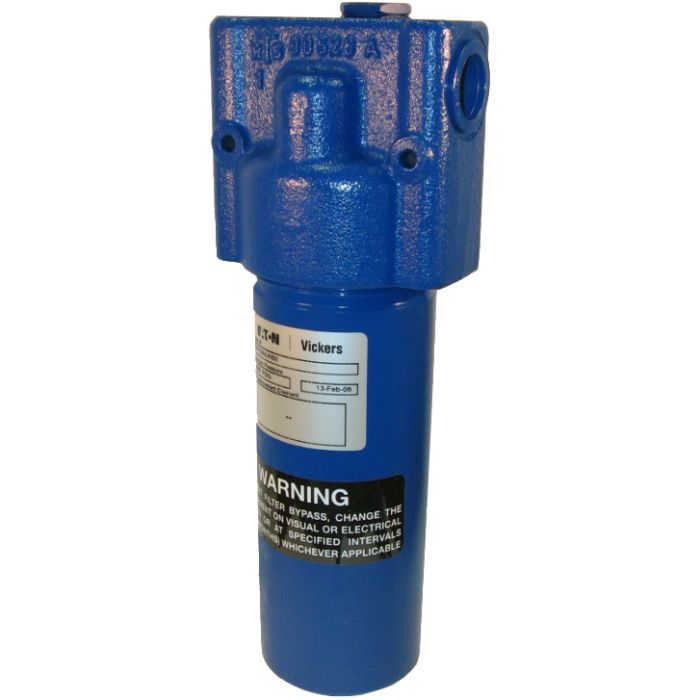

HF2P Series Pressure Filters, Up To 24 GPM & 4000 PSI

Description & Features

Application	For use in pressure lines of mobile and industrial hydraulic systems. Any mounting position is permitted, but vertical is preferred for easier servicing.
Element	(C-Pak Elements): High performance absolute rated 5-layer media featuring proprietary Vickers glass micro fiber media with special resin binder placed between non woven synthetic diffuser layers, with upstream and downstream epoxy coated carbon steel mesh upstream & downstream support. (H-Pak Elements): Similar to C-Pak except 304 stainless steel mesh upstream & downstream support, and heavier core tubes and media support for non-bypass applications.
Element Collapse Rating	250 PSID (C-Pak). 3000 PSID (H-Pak).
Features	Designed to comply with ANSI specifications and ISO cleanliness standard. Visual, electrical and electrical indicators with lamp options. Conforms to HF2 specifications. Compact design for use with servo and proportional valves. Manifold mounting option. Fatigue rated to 3000 PSI for maximum reliability. High efficiency replacement elements in standard configurations to meet Target Cleanliness Levels. High collapse elements available for non-bypass applications.
Flow Rating	12 GPM (4 inch element). 24 GPM (8 inch element).
Fluids & Seals	Compatible with most petroleum oil, water glycol, oil-in-water and water-in-oil fluids. Buna-N seals are standard. Viton® seals are available for phosphate ester fluids.
Indicators	Filter head is machined (and plugged) for optional differential pressure indicator. Indicator styles available: Visual and Electrical.
Materials	Ductile iron head. Carbon steel bowl.
Maximum Operating Pressure	4000 PSI.
Temperature Range	-15° F to 250°F.

Products

Model Number	Part Number	Rated Flow	Element	Length	Bypass Spring	Includes	Features	Price	Action
HF2P1SA4JNB2 HF2P Series Pressure Filter	255AS10026A	24	None (Select below)	8 inch	43	None

Product Questions & Answers (1)

Question by: Debbie B on Jun 26, 2025, 7:21 PM

Will this filter work with water glycol fluids, or do I need a special version?

Answer by: Customer Support on Jun 28, 2025, 10:14 AM

These filters are compatible with water glycol fluids when using the standard Buna-N seals. Viton seals are available if you're using phosphate ester fluids, though.
