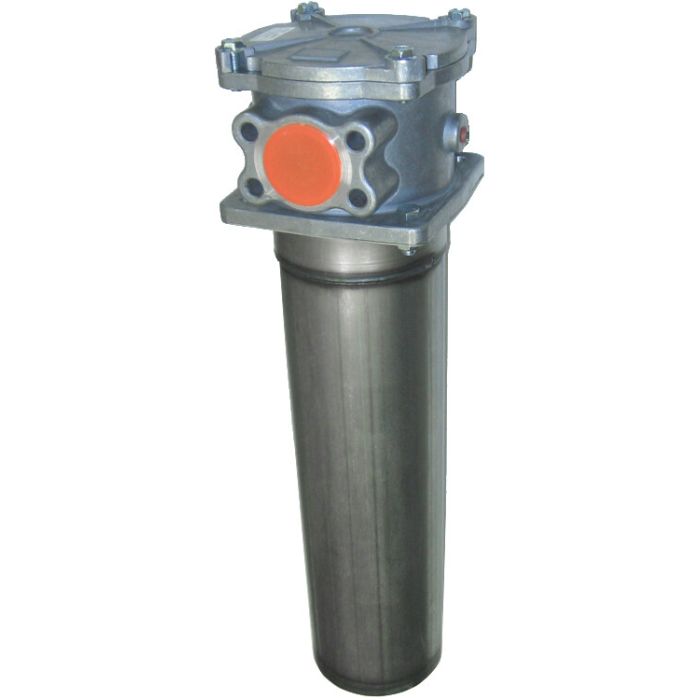

HF4RT Series In-Tank Return Filter, 9 inch 5 Micron Absolute C-pak Element, Ports, Up To GPM

Ask A Question

Description & Features

Designed to comply with ANSI specifications and ISO cleanliness standards the Vickers HF4RT1SD313SDBC05 in-tank return filter is a high-performance solution for mobile and industrial hydraulic systems. Its 9-inch element length combined with a 5-micron absolute-rated C-pak element ensures superior filtration efficiency.

Constructed with an aluminum head and cover and a carbon steel bowl the filter has a maximum operating pressure of 100 PSI and can operate in temperatures ranging from -25deg; F to 250deg;F. It is suitable for use with petroleum-based fluids and most water glycol oil-in-water and water-in-oil fluids with Buna-N seals as standard.

The filter head is designed with a secondary port that allows filtration of a second return line without additional fittings or can be used as a filtered fill port. It features an SAE-24 St.Thread port size and offers a rated flow of 50 GPM for the 9-inch element. Optional gauge and electrical switch options are available to monitor element loading. The filter's in-tank configuration minimizes space requirements and potential system leakage points.

MPN: HF4RT1SD313SDBC05

Supplier Part Number: 253AS12886A

Specifications

Brand
EATON
Cleanliness Level
18/16/14 or Better
Element
5 um Absolute C-pak
grp Element
C-Pak Elements: High-Performance Absolute Rated 5-Layer Media Featuring Proprietary Vickers Glass Micro Fiber Media with Special Resin Binder Placed Between Non Woven Synthetic Diffuser Layers, with Epoxy-Coated Carbon Steel Mesh Upstream and Downstream S
grp Fluids Seals
Suitable for Use with Petroleum Based and Most Water Glycol, Oil-in-water and Water-in-oil Fluids, Buna-N Seals are Standard, Synthetic Fluids Require Optional Viton® Seals
grp Indicators
Filter Head Is Drilled and Tapped 1/8 NPT (and Plugged) For Optional Pressure Gauge or Switch
grp Materials
Aluminum Head and Cover, Carbon Steel Bowl
Head Material
Aluminum
Head Type
Dual
Housing Finish
Epoxy-Coated
Housing Material
Aluminum/Carbon Steel
Media Type
Glass Fiber Fleece
Model
HF4RT1SD313SDBC05
Mounting Type
In-Tank
Port Connection Type
UN Threaded
Port Size
1.875-12
Seal Material
Buna-N
Series
HF4RT Series

Similar Products

Model Number Part Number Rated Flow Element Length Bypass Spring Includes Features Price Action
HF4RT Series In-Tank Return Filter, 23 inch 5 Micron Absolute C-pak Element, Ports, Up To GPM

HF4RT1SD4GB6XXBC05 HF4RT Series In-Tank Return Filter

1VFTM00043

100

5 Micron Absolute C-pak

23 inch

43

0-160 PSI Gauge

No Secondary Port

Product Questions & Answers (2)

Question by: Merle M on Jan 20, 2026, 7:30 PM
filter says it handles petroleum fluids, what about water glycol mix? got a system running that type and trying to figure out if this'll hold up
Answer by: Customer Support on Jan 22, 2026, 6:21 AM
Water glycol fluids are compatible with this filter when paired with the standard Buna-N seals it comes with. Same goes for oil-in-water and water-in-oil fluids. The one exception to watch for is synthetic fluids, those require upgrading to Viton seals, which are available as an option. Stick with petroleum-based or water-mix fluids and the standard configuration handles it fine.
Question by: Roy B on Oct 21, 2025, 11:40 AM
i’ve got a return line setup and i’m tight on room in the tank, what’s the main benefit of this HF4RT in-tank style filter?
Answer by: Customer Support on Oct 22, 2025, 5:31 PM
In a return line where space is at a premium, the in-tank layout helps keep the assembly compact and cuts down on potential external leak points since more of the filter is contained in the reservoir.
