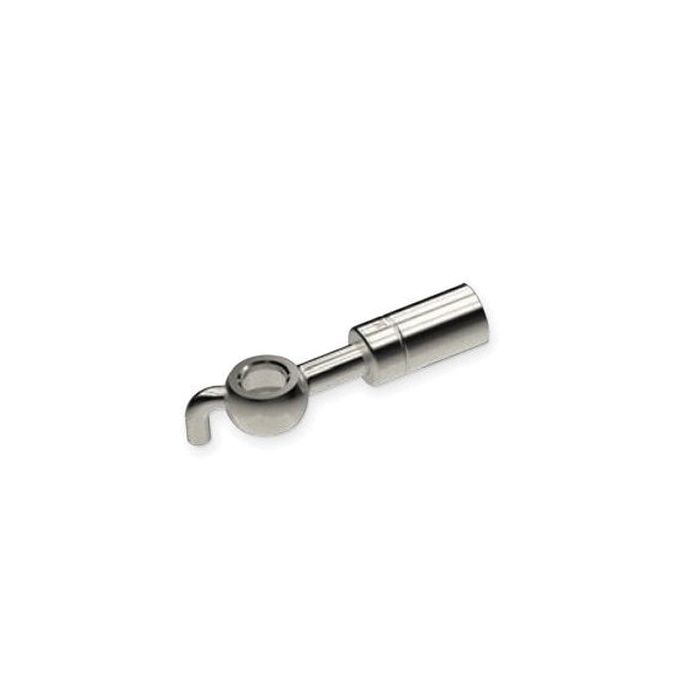

FITTING - BANJO 10 X 10MM

Description & Features

Designed for hydraulic line connections requiring a compact, low-profile fitting, the Brakequip Fitting - Banjo 10 x 10mm provides a reliable 360-degree rotational connection suited to tight-clearance installations. The banjo-style design allows fluid passage through a hollow bolt arrangement, making it a practical choice where directional flexibility and space constraints are a consideration.

With a 10mm port and 10mm thread sizing, this fitting is well matched to small-bore hydraulic circuits commonly found in mobile equipment, brake systems, and hydraulic control lines. Supplied by Brakequip, a recognised name in hydraulic and brake line components.

SKU: HFB523

Supplier Part Number (MPN): HFB523

Specifications

Brand BrakeQuip®	Connection Type Banjo	Dimensions 18 mm W x 10 mm THK

Product Questions & Answers (1)

Question by: Todd C on Jun 8, 2025, 9:26 PM

Got a tight spot on a small hydraulic brake line where I need a fitting that can swivel around without fighting me. This banjo style work for that kind of setup?

Answer by: Customer Support on Jun 10, 2025, 2:53 PM

Banjo fittings are built exactly for that situation. The 360-degree rotational connection lets you adjust the line angle after the bolt is in place, which saves a lot of grief when clearance is tight and you can't easily reposition the line itself. With a 10mm port and 10mm thread, it fits right into small-bore hydraulic and brake circuits without needing adapters or extra hardware in most cases.
