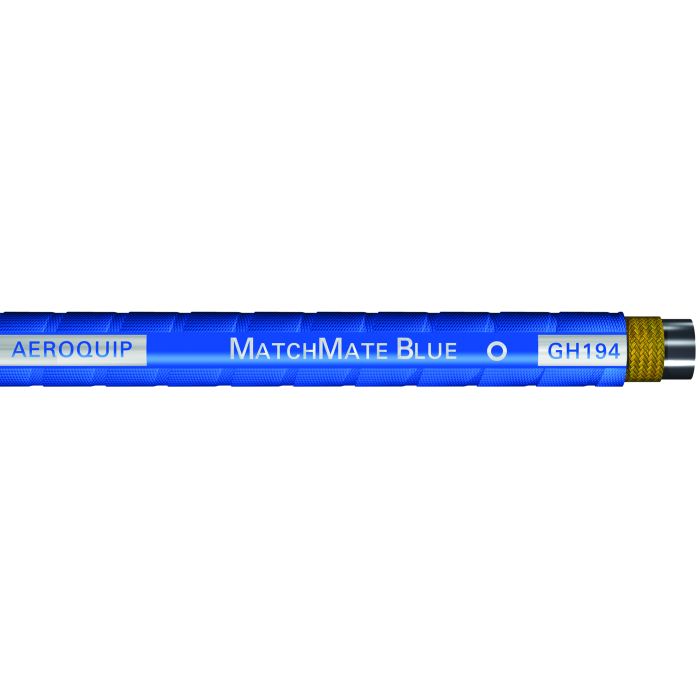

HI-IMPULSE Matchmate Blue Single Wire Braid SAE 100R1AT Type S Hose

Description & Features

Application	Petroleum and fire-resistant hydraulic fluids, fuel and lubricating oils, gasoline, water and other industrial fluids. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on
Construction	AQP elastomer tube, single wire braid reinforcement and blue AQP elastomer cover.
Temperature Range	–40°F to +300°F.

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Burst Pressure	Minimum Bend Radius	Reel Qty (ft)	Price	Action
GH194-6 HI-IMPULSE Blue Single Wire Hose	0.38	0.69	3000		4.92	450-550
GH194-8 HI-IMPULSE Blue Single Wire Hose	0.5	0.81	2500		7.09	350-450
