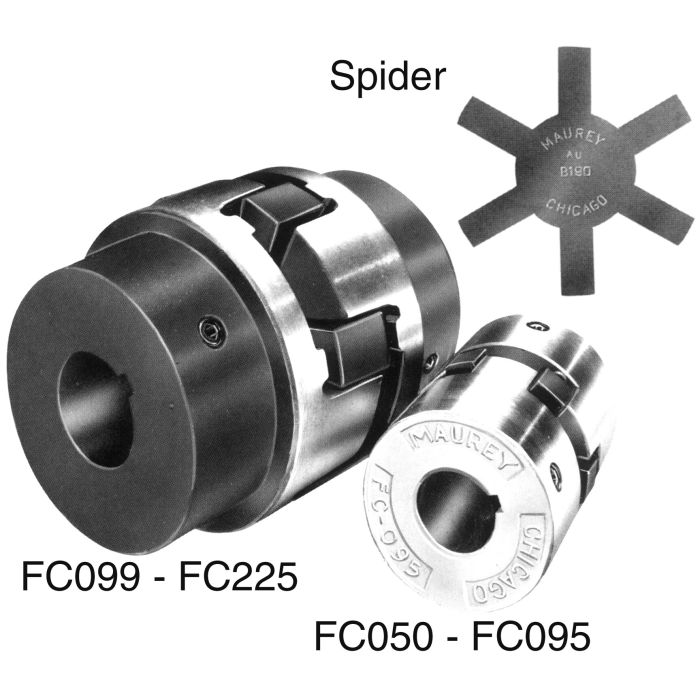

Hi-Q Coupling Half, 1.13 Inch Bore, 1/4 Inch Key

Description & Features

The Hi-Q Coupling Half 1.13 Inch Bore 1/4 Inch Key by Maurey Manufacturing Co features a precision-ground and rust-resistant design. This coupling prevents metal-to-metal contact while compensating for minor angular and centerline misalignments.

Engineered for fast installation this coupling half is made from sintered metal designed to couple hydraulic pumps to electric motors with maximum efficiency.

With a bore of 1.125 inches and a key of 1/4 inch it offers horsepower ratings of 3.2 for Buna-N and 5.0 for Urethane. The coupling maintains performance within a temperature range of -20F to 180F for Buna-N and -80F to 180F for Urethane. It supports a maximum angular offset of 1 and a parallel offset of 0.015 inches. This product is also listed under catalog number C1EP71.

MPN: L095-1-1/8

Specifications

Brand maurey	Coupling Size L095	For Use With Hi-Q® Flexible Couplings	Horsepower Rating Buna-N: 3.2 hp, Urethane: 5.0 hp	Material Steel	Sg Materials FC050-FC095 - Sintered Metal, FC099-FC225 - Machined Cast Iron	Sg Temperature Range -20 to 180 deg F Buna-N Spider, -80 to 180 deg F Urethane Spider

Similar Products

Model Number	Coupling Size	Bore Diameter	Price	Action
FC095-1 Hi-Q Coupling Halv	L095
FC100-5/8 Hi-Q Coupling Halv	L100
FC100-1-3/8 Hi-Q Coupling Halv	L100
L100-1 Hi-Q Coupling Halv	L100
FC095-1/2-W-1/8K Hi-Q Coupling Halv	L095
FC100-3/4 Hi-Q Coupling Halv	L100
FC100-1-1/8 Hi-Q Coupling Halv	L100
FC110-7/8 Hi-Q Coupling Halv	L110
FC100-7/8 Hi-Q Coupling Halv	L100
FC095-3/4 Hi-Q Coupling Halv	L095
FC100-1/2 Hi-Q Coupling Halv	L100
FC110-1-1/8 Hi-Q Coupling Halv	L110
FC110-3/4 Hi-Q Coupling Halv	L110
FC095-1/2	L095
L100-1-1/4	L100
L110 X 1 5/8	L110
L110-1	L110
