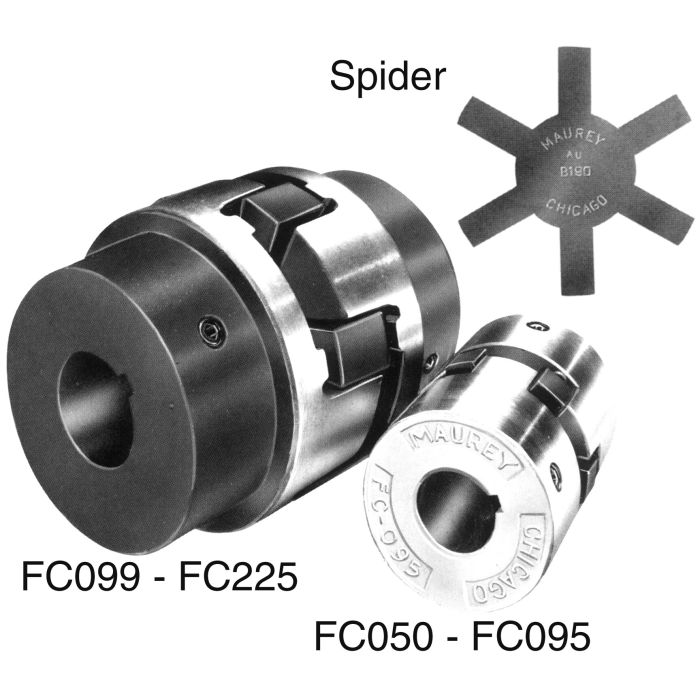

Hi-Q Coupling Half, 0.50 Inch Bore, 1/8 Inch Key

Description & Features

Manufactured by Maurey Manufacturing Co, the Hi-Q Coupling Half with a 0.50 inch bore and 1/8 inch key is designed for precision in various industrial applications.

Constructed from sintered metal, the coupling half ensures durability and rust resistance. Featuring a maximum angular offset capability of 1deg; and a parallel offset capability of 0.015 inches, it effectively compensates for minor misalignments.

This high-quality coupling prevents metal-to-metal contact, ensuring smooth operations. It is particularly suited for coupling hydraulic pumps to electric motors, though versatile enough for numerous other uses.

The coupling half supports horsepower ratings of 3.2 for Buna-N and 5.0 for urethane materials. It operates efficiently within a temperature range of -20deg;F to 180deg;F for Buna-N spiders and -80deg;F to 180deg;F for urethane spiders.

Installation is straightforward and quick, with precision-ground and machined parts contributing to operational efficiency.

MPN: L095-1/2-W-1/8K

Specifications

Bore 0.50	Brand Maurey Manufacturing Co	Brand Maurey Manufacturing Co	Pack Size 1.00	UOM EA	Horsepower Rating Buna-N: 3.2, Urethane: 5.0	Key 1/8	Supplier Part Number L095-1/2-W-1/8K	Alternate Part Numbers Alternate Part Number C1FC39, Alternate Part Number FC095-1/2-W-1/8KW, Alternate Part Number L095-1/2-W-1/8K, Alternate Part Number MI-08748835, Alternate Part Number MINO-00544X98020	Product Weight 0.93 lbs

Similar Products

Model Number	Bore	Key	Horsepower Rating
FC095-3/4 Hi-Q Coupling Halv	0.75	3/16	Buna-N: 3.2, Urethane: 5.0
FC100-1-1/8 Hi-Q Coupling Halv	1.125	1/4	Buna-N: 7.2, Urethane: 11.9
FC100-3/4 Hi-Q Coupling Halv	0.75	3/16	Buna-N: 7.2, Urethane: 11.9
FC095-1-1/8 Hi-Q Coupling Halv	1.125	1/4	Buna-N: 3.2, Urethane: 5.0
FC100-1-3/8 Hi-Q Coupling Halv	1.375	5/16	Buna-N: 7.2, Urethane: 11.9
FC100-1/2 Hi-Q Coupling Halv	0.5	--	Buna-N: 7.2, Urethane: 11.9
FC100-5/8 Hi-Q Coupling Halv	0.625	3/16	Buna-N: 7.2, Urethane: 11.9
FC100-7/8 Hi-Q Coupling Halv	0.875	3/16	Buna-N: 7.2, Urethane: 11.9
FC110-1-1/8 Hi-Q Coupling Halv	1.125	1/4	Buna-N: 13.1, Urethane: 28.8
FC110-3/4 Hi-Q Coupling Halv	0.75	3/16	Buna-N: 13.1, Urethane: 28.8
FC110-7/8 Hi-Q Coupling Halv	0.875	3/16	Buna-N: 13.1, Urethane: 28.8
FC095-1 Hi-Q Coupling Halv	1	1/4	Buna-N: 3.2, Urethane: 5.0
L100-1 Hi-Q Coupling Halv	1		Buna-N: 7.2, Urethane: 11.9

Product Questions & Answers (4)

Question by: Gene E on Dec 21, 2025, 8:44 PM

what's the horsepower limit on one of these if I'm running a hydraulic pump off a standard 1800 RPM electric motor?

Answer by: Customer Support on Dec 23, 2025, 3:36 PM

At 1800 RPM driving a hydraulic pump, the rating is 3.2 HP with a Buna-N spider and 5.0 HP with a urethane spider. Those numbers already account for a service factor of 1.5, so they reflect real working conditions rather than theoretical maximums. If your motor falls outside that speed, the rating will shift, but at 1800 RPM those are your numbers.

Question by: Dean H on Feb 3, 2026, 5:09 PM

trying to match up a coupling half i’ve already got, is this one a 1/2 inch bore with a 1/8 keyway?

Answer by: Customer Support on Feb 5, 2026, 7:02 AM

It matches a 0.50 inch bore and a 1/8 inch key, and the supplier part number is L095-1/2-W-1/8K.

Question by: Denise C on Jun 22, 2025, 8:46 AM

got a 1/2 inch shaft with a 1/8 keyway. is this coupling half the right fit or am i missin somethin

Answer by: Customer Support on Jun 24, 2025, 6:40 AM

Fit comes down to the bore and key size, and this one is set up for a 0.50 inch bore with a 1/8 inch key. It is the Hi-Q coupling half style used in flexible couplings, so it matches that shaft size and key requirement as stated.

Question by: Carl R on Jan 15, 2026, 8:11 PM

what's the temperature range on this thing if i'm running a urethane spider versus the buna-n? trying to figure out which setup makes more sense for where we're using it

Answer by: Customer Support on Jan 17, 2026, 6:15 AM

Buna-N spiders are rated from -20°F up to 180°F, so they cover most standard shop and equipment room conditions just fine. Urethane spiders give you a wider cold-side range, starting at -80°F, with the same 180°F ceiling on the high end. If your application sees any kind of extreme cold, the urethane is the better call. For typical indoor pump and motor setups that don't get especially cold, either material will get the job done within that upper limit.
