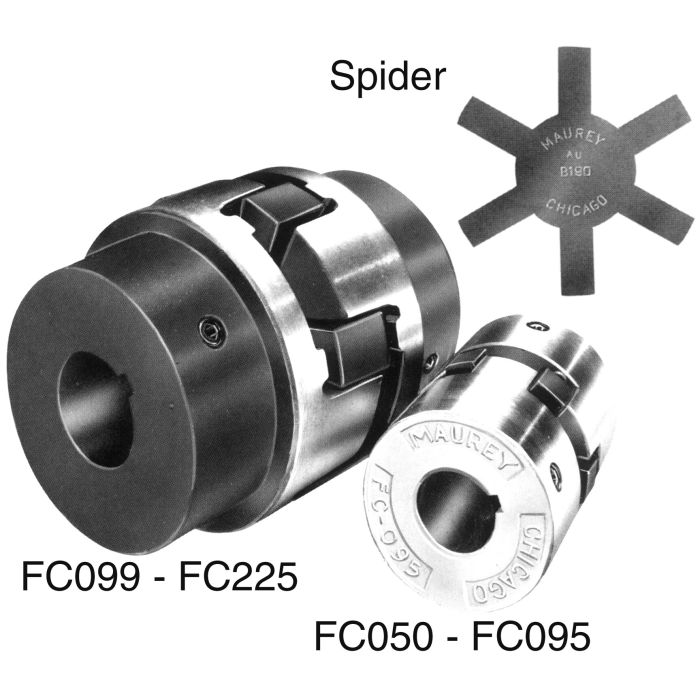

Hi-Q Coupling Half, 0.63 Inch Bore, 3/16 Inch Key

Ask A Question

Description & Features

The MAUREY MANUFACTURING CO Hi-Q Coupling Half 0.63 Inch Bore 3/16 Inch Key is expertly crafted for coupling hydraulic pumps to electric motors with versatility for various other applications.

With a bore size of 0.625 inches and a 3/16 inch key this coupling half ensures optimal performance. Accommodating minor angular and center line misalignments it offers maximum angular offset capability of 1 and parallel offset capability of 0.015 inches.

The coupling is available with horsepower ratings of 7.2 for Buna-N and 11.9 for Urethane and operates effectively within temperature ranges of -20F to 180F for Buna-N and -80F to 180F for Urethane. The precision-ground and machined parts are rust-resistant ensuring durability and reliability.

Typical use cases include coupling hydraulic pumps to electric motors. The coupling half allows for quick installation and prevents metal-to-metal contact maintaining system integrity.

Constructed from sintered metal for models FC050-FC095 and machined cast iron for models FC099-FC225 this reliable component is designed to meet rigorous industrial standards.

Note that horsepower ratings are based on driving hydraulic pumps at 1800 RPM with a service factor of 1.5.

MPN: L100X5/8

Supplier Part Number: L100X5/8

Specifications

Bore
0.63
Brand
Maurey Manufacturing Co
Brand
Maurey Manufacturing Co
Pack Size
1.00
UOM
EA
Horsepower Rating
Buna-N: 7.2, Urethane: 11.9
Key
3/16
Supplier Part Number
L100X5/8
Alternate Part Numbers
Alternate Part Number C1CQ96, Alternate Part Number L100-5/8, Alternate Part Number L100X5/8, Alternate Part Number MI-00507071, Alternate Part Number MINO-00544K23084
Product Weight
1.70 lbs

Similar Products

Model Number Bore Key Horsepower Rating Price Action
Hi-Q Coupling Half, 0.50 Inch Bore, 1/8 Inch Key

FC095-1/2-W-1/8K Hi-Q Coupling Halv

0.5

1/8

Buna-N: 3.2, Urethane: 5.0

Hi-Q Coupling Half, 0.75 Inch Bore, 3/16 Inch Key

FC095-3/4 Hi-Q Coupling Halv

0.75

3/16

Buna-N: 3.2, Urethane: 5.0

Hi-Q Coupling Half, 1.13 Inch Bore, 1/4 Inch Key

FC100-1-1/8 Hi-Q Coupling Halv

1.125

1/4

Buna-N: 7.2, Urethane: 11.9

Hi-Q Coupling Half, 0.75 Inch Bore, 3/16 Inch Key

FC100-3/4 Hi-Q Coupling Halv

0.75

3/16

Buna-N: 7.2, Urethane: 11.9

Hi-Q Coupling Half, 1.13 Inch Bore, 1/4 Inch Key

FC095-1-1/8 Hi-Q Coupling Halv

1.125

1/4

Buna-N: 3.2, Urethane: 5.0

Hi-Q Coupling Half, 1.38 Inch Bore, 5/16 Inch Key

FC100-1-3/8 Hi-Q Coupling Halv

1.375

5/16

Buna-N: 7.2, Urethane: 11.9

Hi-Q Coupling Half, 0.50 Inch Bore, -- Inch Key

FC100-1/2 Hi-Q Coupling Halv

0.5

--

Buna-N: 7.2, Urethane: 11.9

Hi-Q Coupling Half, 0.88 Inch Bore, 3/16 Inch Key

FC100-7/8 Hi-Q Coupling Halv

0.875

3/16

Buna-N: 7.2, Urethane: 11.9

Hi-Q Coupling Half, 1.13 Inch Bore, 1/4 Inch Key

FC110-1-1/8 Hi-Q Coupling Halv

1.125

1/4

Buna-N: 13.1, Urethane: 28.8

Hi-Q Coupling Half, 0.75 Inch Bore, 3/16 Inch Key

FC110-3/4 Hi-Q Coupling Halv

0.75

3/16

Buna-N: 13.1, Urethane: 28.8

Hi-Q Coupling Half, 0.88 Inch Bore, 3/16 Inch Key

FC110-7/8 Hi-Q Coupling Halv

0.875

3/16

Buna-N: 13.1, Urethane: 28.8

Hi-Q Coupling Half, 1.00 Inch Bore, 1/4 Inch Key

FC095-1 Hi-Q Coupling Halv

1

1/4

Buna-N: 3.2, Urethane: 5.0

Hi-Q Coupling Half, 1.00 Inch Bore, Inch Key

L100-1 Hi-Q Coupling Halv

1

Buna-N: 7.2, Urethane: 11.9

Product Questions & Answers (1)

Question by: Cody W on May 29, 2025, 5:50 PM
What size bore does this coupling half have?
Answer by: Customer Support on May 31, 2025, 7:24 AM
This coupling half has a bore size of 0.625 inches.
