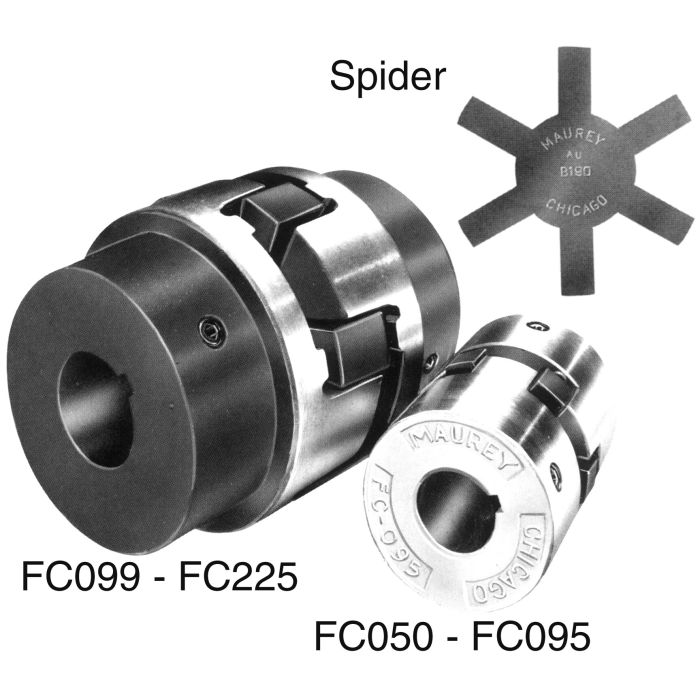

Hi-Q Coupling Half, 0.88 Inch Bore, 3/16 Inch Key

Description & Features

Engineered for a diverse range of applications Hi-Q Coupling Half 0.88 Inch Bore 3/16 Inch Key effectively couples hydraulic pumps to electric motors. Precision ground and machined components ensure reliability and rust resistance making it suitable for various operational requirements.

Constructed from high-quality machined cast iron this coupling prevents metal-to-metal contact and compensates for minor misalignments. It supports a maximum angular offset of 1 and a maximum parallel offset of 0.015 inches facilitating smooth performance.

Features fast installation and a broad temperature range with Buna-N Spider operating between -20F to 180F and Urethane Spider from -80F to 180F.

Horsepower rating: Buna-N 7.2 HP Urethane 11.9 HP.

Typically employed within industrial settings this coupling half offers dependable performance and durability.

Supplier Part Number: L100-7/8

Specifications

Bore 0.88	Brand Maurey Manufacturing Co	Brand Maurey Manufacturing Co	Pack Size 1.00	UOM EA	Horsepower Rating Buna-N: 7.2, Urethane: 11.9	Key 3/16	Supplier Part Number L100-7/8	Alternate Part Numbers Alternate Part Number C1CQ97, Alternate Part Number L100-7/8, Alternate Part Number MI-00507073, Alternate Part Number MINO-00544K23088	Product Weight 2.00 lbs

Similar Products

Model Number	Bore	Key	Horsepower Rating
FC095-1/2-W-1/8K Hi-Q Coupling Halv	0.5	1/8	Buna-N: 3.2, Urethane: 5.0
FC095-3/4 Hi-Q Coupling Halv	0.75	3/16	Buna-N: 3.2, Urethane: 5.0
FC100-1-1/8 Hi-Q Coupling Halv	1.125	1/4	Buna-N: 7.2, Urethane: 11.9
FC100-3/4 Hi-Q Coupling Halv	0.75	3/16	Buna-N: 7.2, Urethane: 11.9
FC095-1-1/8 Hi-Q Coupling Halv	1.125	1/4	Buna-N: 3.2, Urethane: 5.0
FC100-1-3/8 Hi-Q Coupling Halv	1.375	5/16	Buna-N: 7.2, Urethane: 11.9
FC100-1/2 Hi-Q Coupling Halv	0.5	--	Buna-N: 7.2, Urethane: 11.9
FC100-5/8 Hi-Q Coupling Halv	0.625	3/16	Buna-N: 7.2, Urethane: 11.9
FC110-1-1/8 Hi-Q Coupling Halv	1.125	1/4	Buna-N: 13.1, Urethane: 28.8
FC110-3/4 Hi-Q Coupling Halv	0.75	3/16	Buna-N: 13.1, Urethane: 28.8
FC110-7/8 Hi-Q Coupling Halv	0.875	3/16	Buna-N: 13.1, Urethane: 28.8
FC095-1 Hi-Q Coupling Halv	1	1/4	Buna-N: 3.2, Urethane: 5.0
L100-1 Hi-Q Coupling Halv	1		Buna-N: 7.2, Urethane: 11.9

Product Questions & Answers (2)

Question by: Tammy F on Jul 3, 2025, 3:11 PM

Got a hydraulic pump I'm trying to mate up to an electric motor and wondering if this coupling half will handle that kind of setup?

Answer by: Customer Support on Jul 5, 2025, 6:16 AM

Coupling hydraulic pumps to electric motors is exactly what this part is built around. The Hi-Q half is machined cast iron, so it holds up well in industrial use, and it compensates for minor misalignments which is a real help when you're lining up a pump and motor in the field. Just keep in mind the angular offset tolerance is 1 degree and the parallel offset tops out at 0.015 inches, so your alignment still needs to be reasonably close before you button everything up.

Question by: Gary R on Jun 10, 2025, 11:45 AM

got a 7/8 shaft with a 3/16 keyway, is this the right coupling half or am i off a size

Answer by: Customer Support on Jun 11, 2025, 9:52 PM

This one matches a 0.875 inch (7/8) bore and a 3/16 inch key, so it lines up with a 7/8 shaft that uses a 3/16 key.
