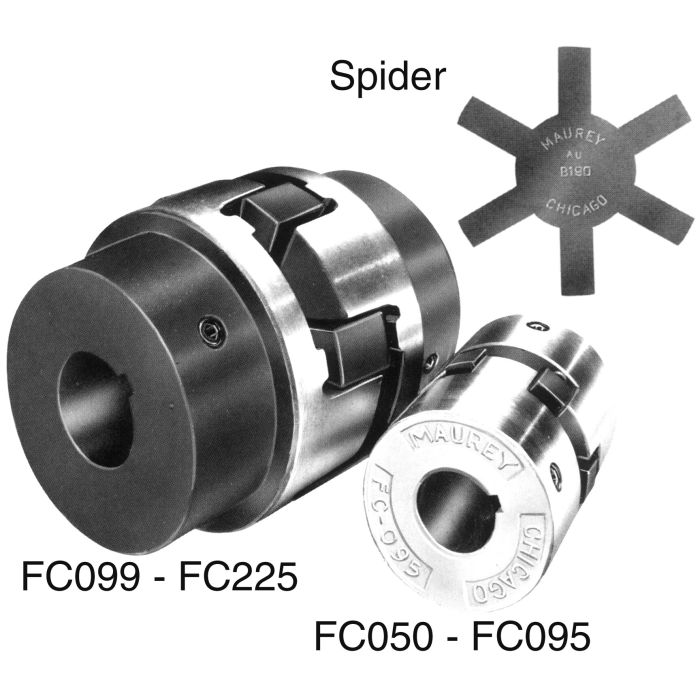

Hi-Q Coupling Half, 0.75 Inch Bore, 3/16 Inch Key

Description & Features

Designed for high-precision applications this coupling half features a 0.75 inch bore and a 3/16 inch key. Manufactured by Maurey Manufacturing Co it provides an optimal solution for coupling hydraulic pumps to electric motors.

Made from durable materials the coupling prevents metal-to-metal contact ensuring longevity and consistent performance. The coupling's design includes precision ground and machined parts that are resistant to rust offering reliability in demanding environments. The Maurey Hi-Q Coupling Half simplifies installations and compensates for minor angular and center line misalignments with a maximum angular offset capability of 1 and a maximum parallel offset capability of 0.015 inches.

With horsepower ratings of 13.1 for Buna-N and 28.8 for Urethane this coupling half supports robust operational needs. It is versatile and can be used across a wide range of industrial applications. The temperature range extends from -20F to 180F for Buna-N Spider and -80F to 180F for Urethane Spider making it suitable for diverse operational environments.

Supplier Part Number: L110X3/4

Specifications

Brand maurey	Coupling Size L110	For Use With Hi-Q® Flexible Couplings	Horsepower Rating Buna-N: 13.1 hp, Urethane: 28.8 hp	Material Steel	Sg Materials FC050-FC095 - Sintered Metal, FC099-FC225 - Machined Cast Iron	Sg Temperature Range -20 to 180 deg F Buna-N Spider, -80 to 180 deg F Urethane Spider
