Hi-Q Coupling Half, 0.88 Inch Bore, 3/16 Inch Key

Description & Features

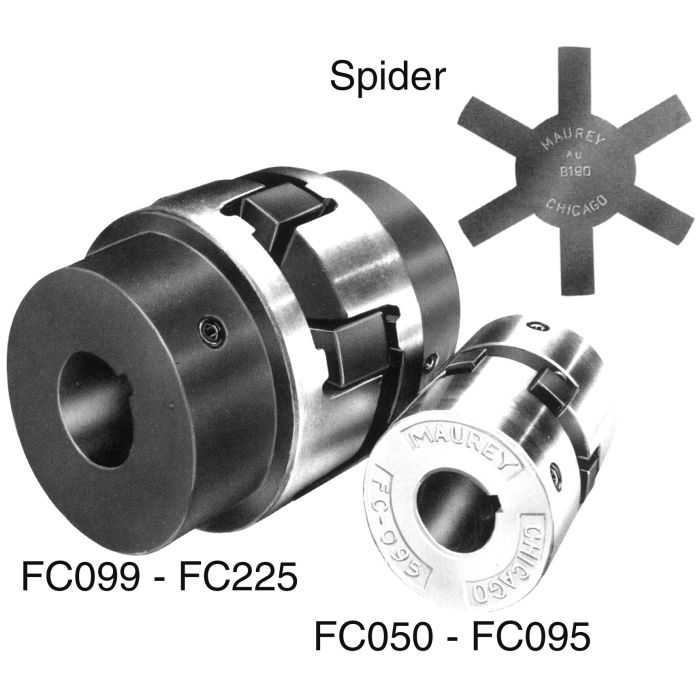

This Hi-Q Coupling Half from Maurey Manufacturing features a 0.88 inch bore and a 3/16 inch key, designed to prevent metal-to-metal contact and compensate for minor angular and center line misalignments.

Common applications include coupling hydraulic pumps to electric motors. The coupling is precision machined and rust resistant for fast installation. It is rated to 13.1 HP with a Buna-N spider and 28.8 HP with a Urethane spider, based on driving hydraulic pumps at 1800 RPM.

SKU: FC110-7/8

Supplier Part Number (MPN): L11078

Alternate Part Numbers: C1EP79

Specifications

Bore 0.88	Brand Maurey Manufacturing Co	Brand Maurey Manufacturing Co	Pack Size 1.00	UOM EA	Horsepower Rating Buna-N: 13.1, Urethane: 28.8	Key 3/16	Supplier Part Number L110-7/8	Alternate Part Numbers Alternate Part Number C1EP79	Product Weight 3.32 lbs

Similar Products

Model Number	Bore	Key	Horsepower Rating
FC095-1/2-W-1/8K Hi-Q Coupling Halv	0.5	1/8	Buna-N: 3.2, Urethane: 5.0
FC095-3/4 Hi-Q Coupling Halv	0.75	3/16	Buna-N: 3.2, Urethane: 5.0
FC100-1-1/8 Hi-Q Coupling Halv	1.125	1/4	Buna-N: 7.2, Urethane: 11.9
FC100-3/4 Hi-Q Coupling Halv	0.75	3/16	Buna-N: 7.2, Urethane: 11.9
FC095-1-1/8 Hi-Q Coupling Halv	1.125	1/4	Buna-N: 3.2, Urethane: 5.0
FC100-1-3/8 Hi-Q Coupling Halv	1.375	5/16	Buna-N: 7.2, Urethane: 11.9
FC100-1/2 Hi-Q Coupling Halv	0.5	--	Buna-N: 7.2, Urethane: 11.9
FC100-5/8 Hi-Q Coupling Halv	0.625	3/16	Buna-N: 7.2, Urethane: 11.9
FC100-7/8 Hi-Q Coupling Halv	0.875	3/16	Buna-N: 7.2, Urethane: 11.9
FC110-1-1/8 Hi-Q Coupling Halv	1.125	1/4	Buna-N: 13.1, Urethane: 28.8
FC110-3/4 Hi-Q Coupling Halv	0.75	3/16	Buna-N: 13.1, Urethane: 28.8
FC095-1 Hi-Q Coupling Halv	1	1/4	Buna-N: 3.2, Urethane: 5.0
L100-1 Hi-Q Coupling Halv	1		Buna-N: 7.2, Urethane: 11.9
