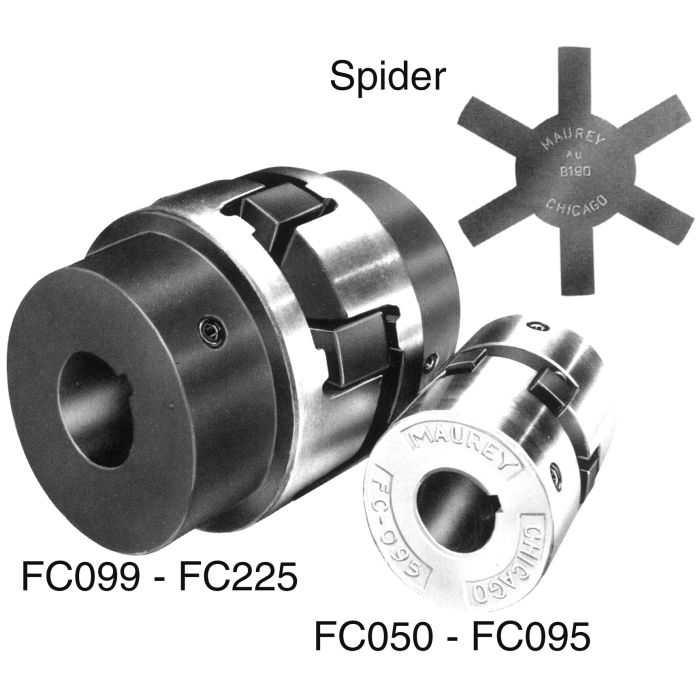

Hi-Q Coupling Half, 1.00 Inch Bore, Inch Key

The Hi-Q Coupling Half 1.00 Inch Bore Inch Key by Maurey Manufacturing Co is designed for effective coupling of hydraulic pumps to electric motors with a 1-degree maximum angular offset capability and up to 0.015 inches of parallel offset capability. Its construction utilizes superior materials such as sintered metal and machined cast iron ensuring durability and resistance to rust.

Important features include the prevention of metal-to-metal contact and the ability to compensate for minor angular and center line misalignments which is critical in maintaining operational efficiency. Efficient and fast installation is a highlight of this product supported by precision-ground and machined parts.

The coupling's horsepower ratings vary based on the material of the spider with Buna-N rated at 7.2 HP and Urethane rated at 11.9 HP. The temperature range for the Buna-N Spider is -20F to 180F and for the Urethane Spider -80F to 180F ensuring versatile application in various environmental conditions.

This coupling typically facilitates hydraulic pumps and electric motor connections but is adaptable for a wide array of industrial uses.

MPN: L100-1

Supplier Part Number: L100-1
