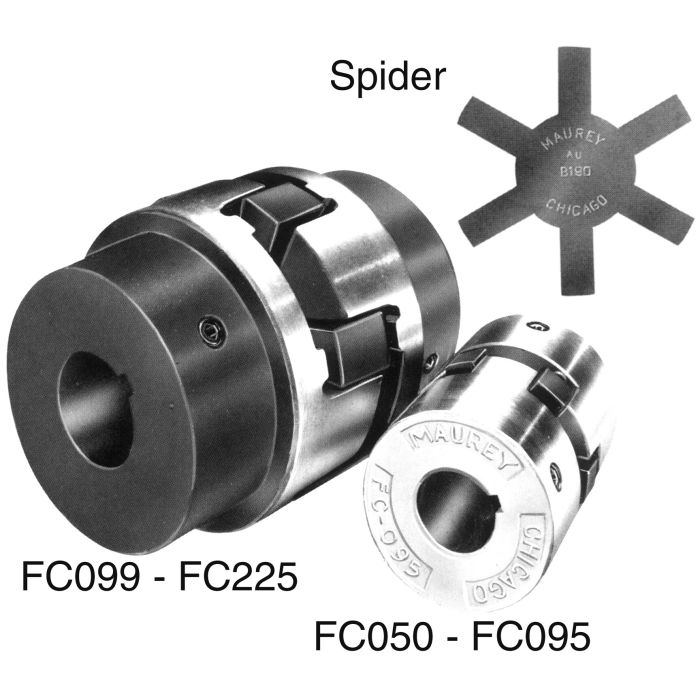

Hi-Q Coupling Spider, Buna-N, For Use With FC075 Coupling Sizes

Ask A Question

Description & Features

Designed for reliability and precision, this coupling spider is constructed from durable Buna-N material, ensuring optimal performance in various industrial applications.

Typically used to connect hydraulic pumps to electric motors, this coupling spider compensates for minor angular and center line misalignments, preventing metal-to-metal contact and ensuring smooth operation.

With a maximum angular offset capability of 1deg; and a maximum parallel offset capability of 0.015 inches, the coupling offers flexibility and precision in alignment.

Installation is straightforward, and the parts are rust-resistant and precision-ground for enhanced durability.

Ideal for use in environments with temperatures ranging from -20deg;F to 180deg;F, this coupling spider ensures consistent performance under varying conditions.

MPN: C1CL38

Supplier Part Number: B075

Specifications

Brand
maurey
Coupling Size
L075
For Use With
Hi-Q® Flexible Couplings
Material
NBR
Sg Materials
FC050-FC095 - Sintered Metal, FC099-FC225 - Machined Cast Iron
Sg Temperature Range
-20 to 180 deg F Buna-N Spider, -80 to 180 deg F Urethane Spider

Similar Products

Model Number Coupling Size Price Action
Hi-Q Coupling Spider, Urethane, For Use With FC099-FC100 Coupling Sizes

U100 Hi-Q Coupling Spider

L099, L100

Hi-Q Coupling Spider, Urethane, For Use With FC110 Coupling Sizes

U110 Hi-Q Coupling Spider

L110

Hi-Q Coupling Spider, Urethane, For Use With FC090-FC095 Coupling Sizes

U090 Hi-Q Coupling Spider

L090

Product Questions & Answers (3)

Question by: Hank B on Jan 5, 2026, 10:18 AM
Will this spider fit my FC075 coupling, or do I need a different size?
Answer by: Customer Support on Jan 7, 2026, 6:48 AM
This Hi-Q coupling spider is specifically made for use with FC075 coupling sizes. So, yeah, it should fit your FC075 coupling just fine.
Question by: Danny C on Dec 27, 2025, 8:50 PM
got an FC075 coupling on a pump and motor setup. is this the right spider for it?
Answer by: Customer Support on Dec 29, 2025, 8:28 PM
This Buna-N spider is meant for use with FC075 coupling sizes, so it matches that coupling size.
Question by: Todd K on Jan 25, 2026, 11:58 AM
what's the temperature range on the buna-n spider? got an application that runs pretty warm and want to make sure it holds up
Answer by: Customer Support on Jan 27, 2026, 6:22 AM
Buna-N material on this spider is rated from -20°F up to 180°F. Long as your operating temps stay under that 180°F ceiling, you're in good shape. If you're running hotter than that regular basis, the urethane version handles the same upper limit but drops way lower on the cold end, so material choice really comes down to your specific conditions.
