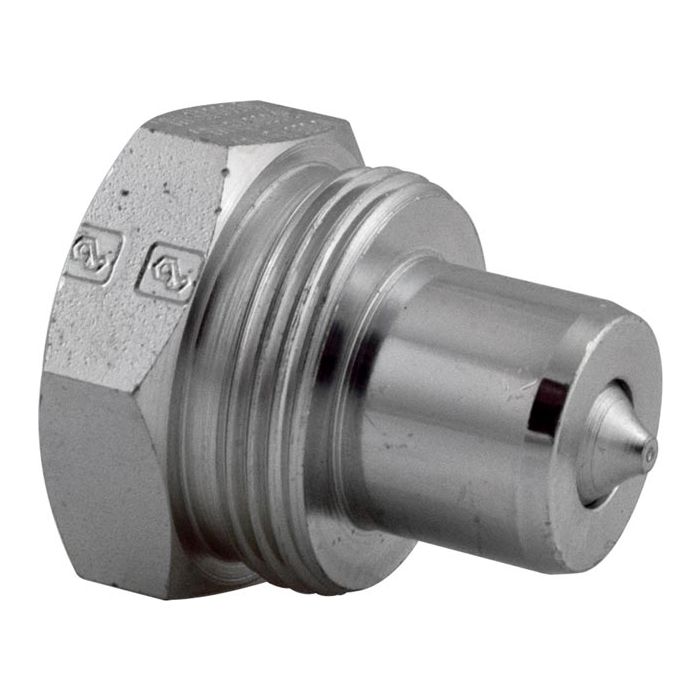

High-Flow Coupler, Male Half, , 2500.00 cu in Max Flow Capacity

Description & Features

The ENERPAC High-Flow Coupler is designed for high force hydraulics applications delivering up to 2500.00 cu in Max Flow Capacity.

As a standard component on most Enerpac cylinders it is highly recommended for use on all Enerpac pumps and cylinders where space and porting allow. This male half coupler includes a versatile "2-in-1" dust cap suitable for both male and female coupler halves.

Manufactured for maximum operating pressures up to 10 000 PSI it ensures reliable performance under demanding conditions. This hydraulic coupler should only be pressurized when fully connected and never coupled or uncoupled under pressure adhering to best safety practices.

Supplier Part Number: CH604

Specifications

Accessories Dust Cap: CD-411	Brand Enerpac	Brand Enerpac	Pack Size 1.00	UOM EA	Includes Male Half	Length --	Maximum Flow Capacity 2500	Alternate Part Numbers Alternate Part Number 20012450, Alternate Part Number C1CN37, Alternate Part Number CH604, Alternate Part Number MI-00983481, Alternate Part Number MINO-00284X21625	Supplier Part Number CH604	Product Weight 0.29 lbs

Similar Products

Model Number	Maximum Flow Capacity	Includes	Thread 1	Accessories	Length	Price	Action
C-604 High-Flow Coupler	2500	Complete Set		Dust Cap: CD-411	2.72
CH-604 High-Flow Coupler	2500	Male Half		Dust Cap: CD-411	--

Product Questions & Answers (3)

Question by: Donna M on Feb 3, 2026, 3:17 PM

Reckon this coupler will fit my Enerpac cylinder okay? Just wanna make sure before I order.

Answer by: Customer Support on Feb 5, 2026, 12:14 PM

Recommended for use on all Enerpac pumps and cylinders where space and porting permits, this high-flow coupler is standard equipment on most Enerpac cylinders.

Question by: Brett R on Jan 24, 2026, 8:56 PM

got a male high-flow coupler on an Enerpac cylinder already. is this CH-604 basically that same standard piece?

Answer by: Customer Support on Jan 26, 2026, 6:29 AM

On a lot of Enerpac cylinders, the high-flow coupler is standard equipment, and CH604 is the male half version of that high-flow coupler.

Question by: Jean T on Dec 29, 2025, 4:16 PM

coupler blew off my setup last week and I'm pretty sure it wasn't fully seated before we pressurized it. this the kind that can't be coupled under pressure either, right?

Answer by: Customer Support on Dec 31, 2025, 6:48 AM

Correct on both counts. Pressurizing before the connection is fully made is how most coupler failures happen, and this one is no exception. It should only see pressure once it's completely connected, and you should always bleed the line before breaking the connection. That's not a limitation unique to this coupler, it's just the right way to run any high-pressure hydraulic fitting, but it does matter at 10,000 PSI.
