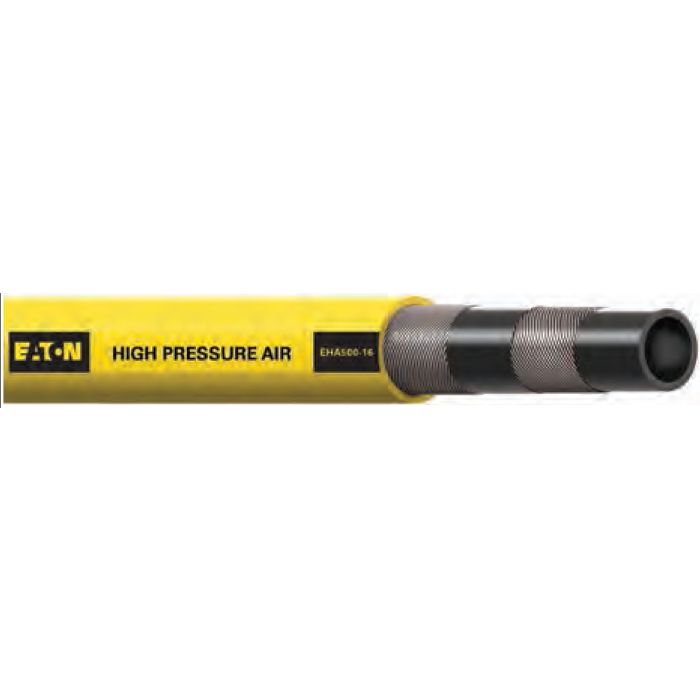

High Pressure Air Hose

Description & Features

Application	High-pressure air service. Markets: oil field equipment, drilling equipment, mining, construction, steel, paper, rental industry. Please review application requirements and limitations found in
Construction	Oil-resistant nitrile blend tube; High-tensile steel wire reinforcement; Pin-pricked, abrasion, ozone, and weather resistant synthetic rubber cover.
Fitting Attachment	Crimp, Swage, or Interlocking clamp.
Fittings	Boss
Fittings & Fitting Attachment Suggestions	Boss, Ground joint, Air hammer, and Air king.
Temperature Range	-40°F to 200°F

Products

Model Number	Color	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Reel Qty (ft)
EHA500-32YW-100 High Pressure Air Hose	Yellow	2	2.6	600	100
EHA500-48YW-100 High Pressure Air Hose	Yellow	3	3.7	600	100
EHA500-64YW-100 High Pressure Air Hose	Yellow	4	4.8	600	100
EHA500-08YW-100 High Pressure Air Hose	Yellow	0.5	0.91	600	100
EHA500-12YW-100 High Pressure Air Hose	Yellow	0.75	1.16	600	100
EHA500-16YW-100 High Pressure Air Hose	Yellow	1	1.42	600	100
EHA500-20YW-100 High Pressure Air Hose	Yellow	1.25	1.69	600	100
EHA500-24YW-100 High Pressure Air Hose	Yellow	1.5	1.97	600	100
EHA500-40YW-100 High Pressure Air Hose	Yellow	2.5	3.15	600	100

Product Questions & Answers (1)

Question by: Daryl R on Oct 13, 2025, 9:51 PM

What kind of fittings work best with this hose, for hooking up to an air compressor?

Answer by: Customer Support on Oct 15, 2025, 7:50 PM

For air compressor connections, Boss, Ground Joint, Air Hammer, and Air King fittings are all suitable, and can be attached via crimp, swage, or interlocking clamp.
