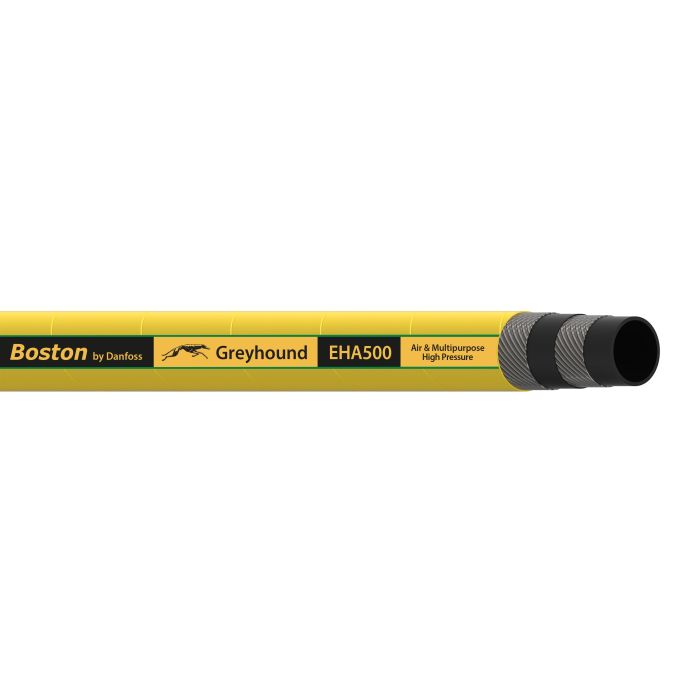

High Pressure Air Hose, Yellow, 1.16 Inch OD, 0.75 Inch ID, Up To 600.00 PSI

Ask A Question

Description & Features

Built for demanding industrial environments, this hose features an oil-resistant nitrile blend tube, high-tensile steel wire reinforcement, and a pin-pricked synthetic rubber cover that resists abrasion, ozone, and weathering. The High Pressure Air Hose, Yellow, 1.16 Inch OD, 0.75 Inch ID, Up To 600.00 PSI is rated for service up to 600 PSI with a minimum bend radius of 3.74 inches, making it well-suited for high-pressure air applications in oil field equipment, drilling, mining, construction, steel, paper, and rental industry settings.

The 0.75-inch ID and 1.16-inch OD hose is supplied in 100-foot reels and has an operating temperature range of -40°F to 200°F. Compatible fitting attachment methods include crimp, swage, and interlocking clamp, with recommended fitting types including Boss, ground joint, air hammer, and Air King. This product is manufactured by Danfoss (Igs).

SKU: EHA500-12YW-100

Supplier Part Number (MPN): EHA500-12YW-100

Alternate Part Numbers: C1MK56

Specifications

Brand
Boston® by Danfoss
Abrasion Resistance
Premium
Cover Material
Styrene-Butadiene Rubber
Dash Size
12
For Use With
Danfoss Quick-Disconnect Hose Fittings
grp Fitting Attachment Suggestions
Boss, Ground Joint, Air Hammer and Air King
grp Fitting Attachments
Crimp, Swage or Interlocking Clamp
grp Fittings
Boss
Hose Color
Yellow
Hose Type
High-Pressure
Inside Diameter
3/4 in
Lay Line Style
Ink Transfer
Nominal Size
3/4 in
Package Form
Reel
Reinforcement
4-Wire Spiral Brass-Plated Steel Wire
Resistance Properties
Abrasion
Segment Code
B
Series
EHA500 Series
Tube Material
Nitrile

Similar Products

Model Number Color Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Reel Qty (ft) Price Action
High Pressure Air Hose, Yellow, 2.60 Inch OD, 2.00 Inch ID, Up To 600.00 PSI

EHA500-32YW-100 High Pressure Air Hose

Yellow

2

2.6

600

100

High Pressure Air Hose, Yellow, 3.70 Inch OD, 3.00 Inch ID, Up To 600.00 PSI

EHA500-48YW-100 High Pressure Air Hose

Yellow

3

3.7

600

100

High Pressure Air Hose, Yellow, 4.80 Inch OD, 4.00 Inch ID, Up To 600.00 PSI

EHA500-64YW-100 High Pressure Air Hose

Yellow

4

4.8

600

100

High Pressure Air Hose, Yellow, 0.91 Inch OD, 0.50 Inch ID, Up To 600.00 PSI

EHA500-08YW-100 High Pressure Air Hose

Yellow

0.5

0.91

600

100

High Pressure Air Hose, Yellow, 1.42 Inch OD, 1.00 Inch ID, Up To 600.00 PSI

EHA500-16YW-100 High Pressure Air Hose

Yellow

1

1.42

600

100

High Pressure Air Hose, Yellow, 1.69 Inch OD, 1.25 Inch ID, Up To 600.00 PSI

EHA500-20YW-100 High Pressure Air Hose

Yellow

1.25

1.69

600

100

High Pressure Air Hose, Yellow, 1.97 Inch OD, 1.50 Inch ID, Up To 600.00 PSI

EHA500-24YW-100 High Pressure Air Hose

Yellow

1.5

1.97

600

100

High Pressure Air Hose, Yellow, 3.15 Inch OD, 2.50 Inch ID, Up To 600.00 PSI

EHA500-40YW-100 High Pressure Air Hose

Yellow

2.5

3.15

600

100

Product Questions & Answers (2)

Question by: Scott M on Aug 19, 2025, 4:36 PM
What kind of fittings work best with this hose?
Answer by: Customer Support on Aug 20, 2025, 9:03 PM
For attaching fittings, you'll want to use crimp, swage, or interlocking clamp methods. Recommended fitting types include Boss, ground joint, air hammer, and Air King.
Question by: Lynn F on Jun 6, 2025, 6:33 AM
trying to snake this through a tight spot, how sharp can i bend it without kinkin it up
Answer by: Customer Support on Jun 8, 2025, 6:03 AM
Minimum bend radius on this hose is 3.74 inches. Staying at or above that bend radius helps keep it from kinking and protects the steel wire reinforcement.
