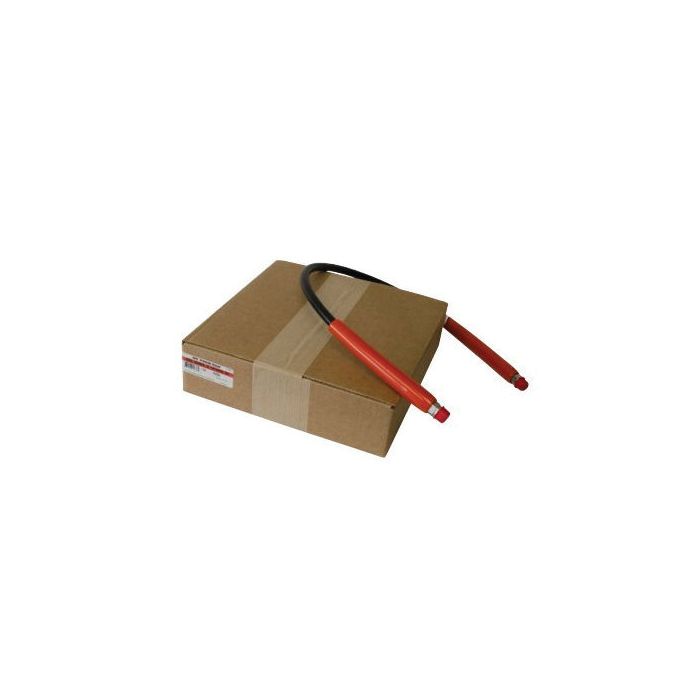

main product photo

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

Ask A Question

Description & Features

Rated for continuous service up to 10,000 psi, this Rubber, Wire-braid Hydraulic Hose Assembly is built for demanding high-pressure hydraulic applications. The hose features a 0.25-inch inner diameter and a 6-foot working length, with 3/8 NPTF fittings on both ends and a plastic hose guard for added protection.

Construction consists of two braids of high-tensile steel wire reinforcement over a rubber core, with an oil- and weather-resistant outer covering. The assembly is Msha approved and complies with Mhi standard IJ100. Each unit ships complete with a coupler and dust cap.

This assembly is part of the Spx High Force Hydraulics product line from Spx Hydraulic Technologies, designed for use in industrial hydraulic systems where reliable high-pressure hose connections are required.

SKU: 9754

Supplier Part Number (MPN): 9754

Alternate Part Numbers: C1JN22, MI-00846469, MINO-00630X06502

Specifications

Brand
Power Team®
Cover Material
Rubber
Fitting Connection Type
FNPT
Fitting Size
3/8 in
grp Non Conductive Hose
For Applications Requiring Electrical Isolation By the Hose, Non-Conductive Hose Has A Leakage Factor of Less Than 50 mA, Considered A Safe Level of Conductivity By SAE Standards, the Covering Is Polyurethane and Colored Orange for Easy Identification As
grp Polyurethane Hose
Made Up of Nylon Core Tube with Polyester Fiber Reinforcement Which Will Withstand the Minimum SAE Bend Radius Without Shortening Service Life, These Hoses Last Up to Seven Times Longer Than Rubber Hose and are Suitable for Continuous Service At Temperatu
grp Rubber Hose
2-Ply Rated Hose Reinforced with Two Braids of High-Tensile Steel Wire, the Rubber Covering Is Oil and Weather-Resistant, These Hoses are MSHA Approved
Guard Type
Plastic
Hose Type
High-Flow
Inside Diameter
1/4 in
Resistance Properties
Oil, Weather
Tube Material
Rubber

Similar Products

Model Number Materials I.D. Fittings Length Guard Type Includes Maximum Operating Pressure Burst Pressure Price Action
Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9756 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

6 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 3 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9733 High Pressure Hose Assembly

Rubber, Wire-braid

0.375 in

3/8 NPTF

3 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 8 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9757 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

8 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9758 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

10 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 12 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9759 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

12 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9760 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

20 ft

Plastic

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9764 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

6 ft

Spring

Coupler & Dust Cap

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 2 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9765 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

2 ft

Spring

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 3 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9766 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

3 ft

Spring

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9767 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

6 ft

Spring

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9769 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

10 ft

Spring

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9771 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

20 ft

Spring

None

10000

20000

Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9775 High Pressure Hose Assembly

Non-Conductive

0.25 in

3/8 NPTF

20 ft

Plastic

None

10000

40000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9777 High Pressure Hose Assembly

Rubber, Wire-braid

0.375 in

3/8 NPTF

10 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9778 High Pressure Hose Assembly

Rubber, Wire-braid

0.375 in

3/8 NPTF

20 ft

Plastic

None

10000

20000

Dual-Line Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 15 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

TWH15 High Pressure Hose Assembly

Dual-Line Non-Conductive

0.25 in

3/8 NPTF

15 ft

Plastic

Coupler & Dust Cap

10000

40000

Dual-Line Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

TWH20 High Pressure Hose Assembly

Dual-Line Non-Conductive

0.25 in

3/8 NPTF

20 ft

Plastic

Coupler & Dust Cap

10000

40000

Dual-Line Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 50 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

TWH50 High Pressure Hose Assembly

Dual-Line Non-Conductive

0.25 in

3/8 NPTF

50 ft

Plastic

Coupler & Dust Cap

10000

40000

Product Questions & Answers (6)

Question by: Troy S on Sep 15, 2025, 8:11 AM
rubber hose rated for 10,000 psi seems high, is that really the working pressure or just burst?
Answer by: Customer Support on Sep 16, 2025, 10:50 AM
10,000 psi is the maximum operating pressure, not burst. Burst pressure on this assembly is rated at 20,000 psi, so there's a 2:1 safety margin built in. The hose itself is reinforced with two braids of high tensile steel wire, which is what gets it to that operating pressure rating. For most high-force hydraulic tool applications, that 10,000 psi working pressure is right in line with what the system demands.
Question by: Chad S on Oct 4, 2025, 6:29 PM
Will this hose hold up to continuous use on my hydraulic press?
Answer by: Customer Support on Oct 6, 2025, 6:00 AM
This hose is rated for an operating pressure of up to 10,000 PSI. It's made with a wire-braid reinforcement and a rubber covering for oil and weather resistance. Whether it's suitable for your specific press depends on the pressure and operating conditions.
Question by: Diane B on Oct 18, 2025, 11:17 AM
got a 3/8 nptf port on both ends, will these fittings match up or am i gonna need adapters
Answer by: Customer Support on Oct 20, 2025, 6:51 AM
With 3/8 NPTF fittings on both ends, it’s set up for connections that are also 3/8 NPTF. If your ports are 3/8 NPTF male and you need a female hose end, that’s the match this assembly is built around.
Question by: Daryl R on Mar 1, 2026, 6:57 PM
trying to swap out an old hose, is this one a 1/4 inch inside diameter with 3/8 NPTF on both ends?
Answer by: Customer Support on Mar 3, 2026, 6:25 AM
It matches a 0.25 inch I.D. hose assembly and it has 3/8 NPTF fittings on both ends, so it lines up with that common size and thread style.
Question by: Pete T on Nov 25, 2025, 3:19 PM
Will this hose hold up if I'm running it pretty much all day, every day?
Answer by: Customer Support on Nov 27, 2025, 11:59 AM
This hose is made with a rubber covering that resists both oil and weather, and it's reinforced with two braids of high-tensile steel wire. It's designed for an operating pressure of up to 10,000 psi.
Question by: Jerry W on Oct 29, 2025, 6:00 PM
does this hose come ready to hook up or do i need to add fittings myself
Answer by: Customer Support on Oct 31, 2025, 7:37 AM
Comes fully assembled with 3/8 NPTF fittings already attached on both ends, plus a coupler and dust cap included. Nothing extra to buy or press on before putting it to work.
