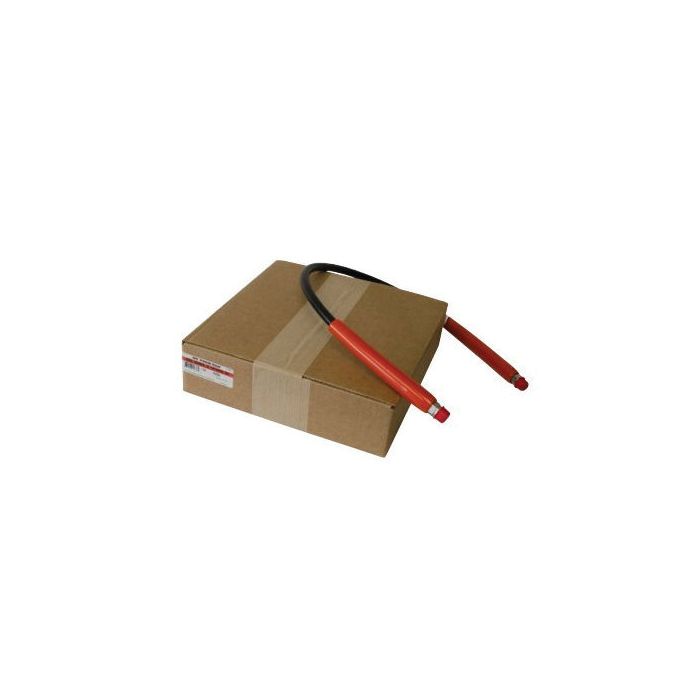

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

Description & Features

This SPX Hydraulic Technologies hose assembly is constructed of rubber and wire braid and features a plastic guard.

This Rubber, Wire-braid Hydraulic Hose Assembly has 3/8 NPTF fittings on both ends, a 0.25 inch ID, and is 6 feet in length. It is designed for a maximum operating pressure of 10000 PSI and complies with MHI standard IJ100.

SKU: 9756

Supplier Part Number (MPN): 9756

Alternate Part Numbers: C1JN23

Specifications

Brand Power Team®	Cover Material Rubber	Fitting Connection Type FNPT	Fitting Size 3/8 in	grp Non Conductive Hose For Applications Requiring Electrical Isolation By the Hose, Non-Conductive Hose Has A Leakage Factor of Less Than 50 mA, Considered A Safe Level of Conductivity By SAE Standards, the Covering Is Polyurethane and Colored Orange for Easy Identification As	grp Polyurethane Hose Made Up of Nylon Core Tube with Polyester Fiber Reinforcement Which Will Withstand the Minimum SAE Bend Radius Without Shortening Service Life, These Hoses Last Up to Seven Times Longer Than Rubber Hose and are Suitable for Continuous Service At Temperatu	grp Rubber Hose 2-Ply Rated Hose Reinforced with Two Braids of High-Tensile Steel Wire, the Rubber Covering Is Oil and Weather-Resistant, These Hoses are MSHA Approved	Guard Type Plastic	Hose Type High-Flow	Inside Diameter 1/4 in	Resistance Properties Oil, Weather	Tube Material Rubber

Similar Products

Model Number	Materials	I.D.	Fittings	Length	Guard Type	Includes	Maximum Operating Pressure	Burst Pressure
9754 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	Coupler & Dust Cap	10000	20000
9733 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	3 ft	Plastic	None	10000	20000
9757 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	8 ft	Plastic	None	10000	20000
9758 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9759 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	12 ft	Plastic	None	10000	20000
9760 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
9764 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	Coupler & Dust Cap	10000	20000
9765 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	2 ft	Spring	None	10000	20000
9766 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	3 ft	Spring	None	10000	20000
9767 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	None	10000	20000
9769 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	10 ft	Spring	None	10000	20000
9771 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	20 ft	Spring	None	10000	20000
9775 High Pressure Hose Assembly	Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	40000
9777 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9778 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
TWH15 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	15 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH20 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH50 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	50 ft	Plastic	Coupler & Dust Cap	10000	40000

Product Questions & Answers (5)

Question by: Rex H on Oct 27, 2025, 6:11 PM

does this hose meet any kind of industry standard, or is it just rated by the manufacturer on their own say-so?

Answer by: Customer Support on Oct 29, 2025, 6:49 AM

It complies with the MHI standard IJ100, so there is an independent benchmark behind the 10,000 psi operating pressure rating. The burst pressure is listed at 20,000 psi, which is double the working pressure. The rubber cover is oil and weather resistant, and the hose construction uses two braids of high tensile steel wire. It also carries MSHA approval, which is required for mining applications but tells you something about the build quality in general.

Question by: Wayne H on Jul 22, 2025, 3:04 PM

What size fittings does this hose have?

Answer by: Customer Support on Jul 24, 2025, 1:30 PM

It comes with 3/8" NPTF fittings on both ends.

Question by: Glen H on Aug 6, 2025, 8:29 AM

hose is rated for 10,000 psi but what happens if pressure spikes above that? is there any headroom built in?

Answer by: Customer Support on Aug 7, 2025, 1:51 PM

Burst pressure on this assembly is 20,000 psi, which puts the safety margin at a 2:1 ratio over the 10,000 psi operating limit. That kind of headroom is pretty standard for wire-braid hose in high-pressure hydraulic work. Normal pressure spikes that stay well below the burst threshold won't cause immediate failure, but running consistently at or near the operating ceiling will wear the hose down faster over time. Keep cycles within the rated operating pressure and you should get solid service life out of it.

Question by: Patty C on Jul 17, 2025, 6:30 AM

What kind of stuff is this hose good for?

Answer by: Customer Support on Jul 18, 2025, 10:48 AM

This rubber, wire-braid hydraulic hose assembly is MSHA approved, so it should be suitable for mining and other heavy-duty applications.

Question by: Roy S on Nov 15, 2025, 12:58 PM

trying to swap out an old hose, are the ends on this one 3/8 NPTF on both sides?

Answer by: Customer Support on Nov 16, 2025, 4:10 PM

It comes with 3/8 NPTF fittings on both ends, and the hose itself is a 1/4 inch ID assembly.
