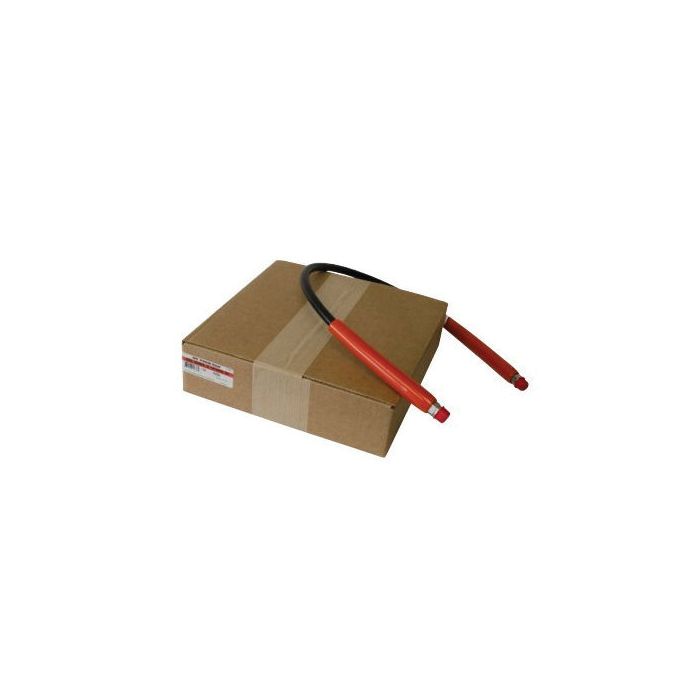

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 8 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

Description & Features

The SPX Hydraulic Technologies Rubber, Wire-braid Hydraulic Hose Assembly is designed for high-pressure applications, offering reliable performance with an internal diameter of 0.25 inches and a length of 8 feet. Reinforced by two braids of high tensile steel wire, this hose can handle up to 10,000 PSI of operating pressure, making it ideal for demanding industrial environments. Its oil and weather-resistant rubber covering ensures durability and longevity in harsh conditions.

Equipped with 3/8" NPTF fittings on both ends, this hydraulic hose assembly complies with MHI standard IJ100. The plastic guard provides additional protection, enhancing the hose's resilience against wear and tear. This product is suitable for use in high-force hydraulic systems where reliability and safety are paramount.

SKU: 9757

Supplier Part Number (MPN): 9757

Alternate Part Numbers: C1KL16

Specifications

Brand Power Team®	Cover Material Rubber	Fitting Connection Type FNPT	Fitting Size 3/8 in	grp Non Conductive Hose For Applications Requiring Electrical Isolation By the Hose, Non-Conductive Hose Has A Leakage Factor of Less Than 50 mA, Considered A Safe Level of Conductivity By SAE Standards, the Covering Is Polyurethane and Colored Orange for Easy Identification As	grp Polyurethane Hose Made Up of Nylon Core Tube with Polyester Fiber Reinforcement Which Will Withstand the Minimum SAE Bend Radius Without Shortening Service Life, These Hoses Last Up to Seven Times Longer Than Rubber Hose and are Suitable for Continuous Service At Temperatu	grp Rubber Hose 2-Ply Rated Hose Reinforced with Two Braids of High-Tensile Steel Wire, the Rubber Covering Is Oil and Weather-Resistant, These Hoses are MSHA Approved	Guard Type Plastic	Hose Type High-Flow	Inside Diameter 1/4 in	Resistance Properties Oil, Weather	Tube Material Rubber

Similar Products

Model Number	Materials	I.D.	Fittings	Length	Guard Type	Includes	Maximum Operating Pressure	Burst Pressure
9754 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	Coupler & Dust Cap	10000	20000
9756 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	None	10000	20000
9733 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	3 ft	Plastic	None	10000	20000
9758 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9759 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	12 ft	Plastic	None	10000	20000
9760 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
9764 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	Coupler & Dust Cap	10000	20000
9765 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	2 ft	Spring	None	10000	20000
9766 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	3 ft	Spring	None	10000	20000
9767 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	None	10000	20000
9769 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	10 ft	Spring	None	10000	20000
9771 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	20 ft	Spring	None	10000	20000
9775 High Pressure Hose Assembly	Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	40000
9777 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9778 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
TWH15 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	15 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH20 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH50 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	50 ft	Plastic	Coupler & Dust Cap	10000	40000

Product Questions & Answers (3)

Question by: Wes B on Feb 12, 2026, 8:43 PM

got a high-pressure power unit that runs 10,000 psi. is this hose assembly actually rated for that, and what’s the burst pressure?

Answer by: Customer Support on Feb 14, 2026, 6:00 AM

For pressure limits, it is rated for 10,000 psi maximum operating pressure, with a 20,000 psi burst pressure.

Question by: Peggy R on May 10, 2025, 12:03 PM

Running a setup that needs 10,000 PSI and I keep burning through hoses. This one rated to handle that pressure continuous, or just as a peak?

Answer by: Customer Support on May 12, 2025, 6:15 AM

10,000 PSI is the rated operating pressure on this hose, not a peak or surge figure. The two braids of high tensile steel wire handle that load as the working rating. Burst pressure sits at 20,000 PSI, so there's a full 2:1 safety margin built in. For demanding hydraulic systems running at that pressure range, this is exactly the kind of hose it's built around.

Question by: Donna A on Dec 6, 2025, 9:26 AM

Reckon this hose will hold up okay running off my power pack for log splitting? It's gotta take a good bit of pressure.

Answer by: Customer Support on Dec 8, 2025, 6:29 AM

This wire-braid reinforced hose assembly is rated for up to 10,000 PSI of operating pressure, so it should handle typical log splitting applications without issue.
