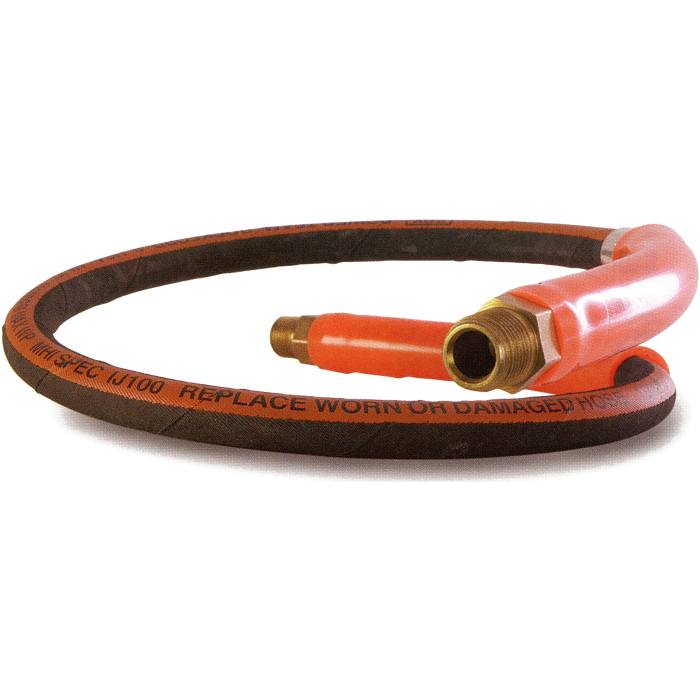

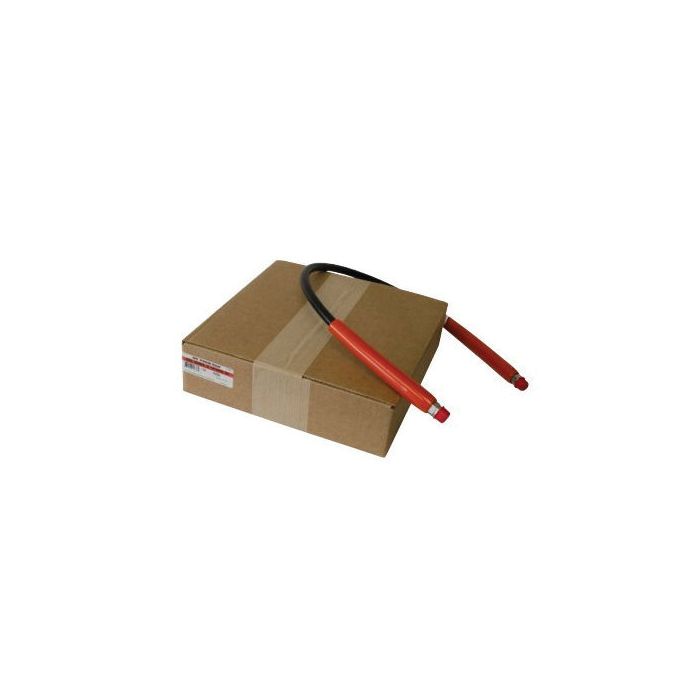

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

Ask A Question

Description & Features

This wire-braid hydraulic hose assembly from SPX Hydraulic Technologies features a 0.25 inch inside diameter and a 10 foot length. The rubber hose is MSHA approved and reinforced with two braids of high tensile steel wire, offering robust performance and durability. It is oil and weather resistant for reliable use in demanding environments.

The rubber, wire-braid hydraulic hose assembly includes 3/8 inch NPTF fittings on both ends and a plastic guard. Designed for a maximum operating pressure of 10000 PSI and a burst pressure of 20000 PSI, it complies with MHI standard IJ100.

SKU: 9758

Supplier Part Number (MPN): 9758

Alternate Part Numbers: C1JN24, MI-01369133, MINO-00630X06533

Specifications

Brand
Power Team®
Cover Material
Rubber
Fitting Connection Type
FNPT
Fitting Size
3/8 in
grp Non Conductive Hose
For Applications Requiring Electrical Isolation By the Hose, Non-Conductive Hose Has A Leakage Factor of Less Than 50 mA, Considered A Safe Level of Conductivity By SAE Standards, the Covering Is Polyurethane and Colored Orange for Easy Identification As
grp Polyurethane Hose
Made Up of Nylon Core Tube with Polyester Fiber Reinforcement Which Will Withstand the Minimum SAE Bend Radius Without Shortening Service Life, These Hoses Last Up to Seven Times Longer Than Rubber Hose and are Suitable for Continuous Service At Temperatu
grp Rubber Hose
2-Ply Rated Hose Reinforced with Two Braids of High-Tensile Steel Wire, the Rubber Covering Is Oil and Weather-Resistant, These Hoses are MSHA Approved
Guard Type
Plastic
Hose Type
High-Flow
Inside Diameter
1/4 in
Resistance Properties
Oil, Weather
Tube Material
Rubber

Similar Products

Model Number Materials I.D. Fittings Length Guard Type Includes Maximum Operating Pressure Burst Pressure Price Action
Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9754 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

6 ft

Plastic

Coupler & Dust Cap

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9756 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

6 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 3 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9733 High Pressure Hose Assembly

Rubber, Wire-braid

0.375 in

3/8 NPTF

3 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 8 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9757 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

8 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 12 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9759 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

12 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9760 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

20 ft

Plastic

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9764 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

6 ft

Spring

Coupler & Dust Cap

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 2 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9765 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

2 ft

Spring

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 3 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9766 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

3 ft

Spring

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9767 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

6 ft

Spring

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9769 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

10 ft

Spring

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9771 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

20 ft

Spring

None

10000

20000

Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9775 High Pressure Hose Assembly

Non-Conductive

0.25 in

3/8 NPTF

20 ft

Plastic

None

10000

40000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9777 High Pressure Hose Assembly

Rubber, Wire-braid

0.375 in

3/8 NPTF

10 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9778 High Pressure Hose Assembly

Rubber, Wire-braid

0.375 in

3/8 NPTF

20 ft

Plastic

None

10000

20000

Dual-Line Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 15 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

TWH15 High Pressure Hose Assembly

Dual-Line Non-Conductive

0.25 in

3/8 NPTF

15 ft

Plastic

Coupler & Dust Cap

10000

40000

Dual-Line Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

TWH20 High Pressure Hose Assembly

Dual-Line Non-Conductive

0.25 in

3/8 NPTF

20 ft

Plastic

Coupler & Dust Cap

10000

40000

Dual-Line Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 50 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

TWH50 High Pressure Hose Assembly

Dual-Line Non-Conductive

0.25 in

3/8 NPTF

50 ft

Plastic

Coupler & Dust Cap

10000

40000

Product Questions & Answers (2)

Question by: Travis E on Aug 12, 2025, 10:23 AM
hose is rated to 10,000 psi but what happens if pressure spikes above that during operation, is there any safety margin built in?
Answer by: Customer Support on Aug 14, 2025, 6:23 AM
Burst pressure on this assembly comes in at 20,000 psi, which is exactly double the rated working pressure of 10,000 psi. That 2:1 ratio gives you a real cushion against pressure spikes that happen during normal hydraulic operation. Just keep in mind the 10,000 psi figure is the max you want to run it at continuously. The burst rating is a safety margin, not a second operating range.
Question by: Billy B on Dec 14, 2025, 1:51 PM
got a press that runs 10,000 psi. is this hose assembly actually rated for that, or is that just the burst number
Answer by: Customer Support on Dec 15, 2025, 4:52 PM
Max operating pressure on this assembly is 10,000 PSI, and the burst pressure is 20,000 PSI. So 10,000 PSI is the working rating, not the burst figure.
