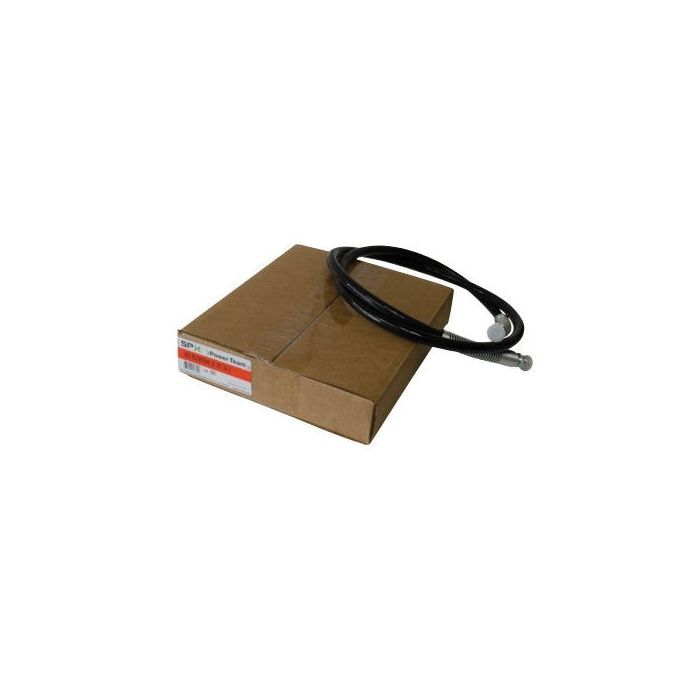

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

Description & Features

Built on a nylon core tube with polyester fiber reinforcement, this Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI is rated for continuous service at temperatures from -40° to 150°F. The polyurethane construction offers significantly longer service life compared to rubber hose alternatives and handles the minimum SAE bend radius without compromising longevity.

Fitted with 3/8 NPTF connections on both ends, the assembly includes a spring guard at the 1/4" ID and ships complete with a coupler and dust cap. Rated to 10,000 psi working pressure with a burst pressure of 20,000 psi, it complies with MHI standard IJ100. Well-suited for high-pressure hydraulic circuits in industrial and mobile equipment applications.

SKU: 9764

Supplier Part Number (MPN): 9764

Alternate Part Numbers: C1JN25

Specifications

Burst Pressure 20000	Brand HYDRAULIC TECH USA LLC(SPX)	Brand Hydraulic Tech USA	Pack Size 1.00	UOM EA	Fittings 3/8 NPTF	Guard Type Spring	I.D. 0.25 in	Includes Coupler & Dust Cap	Length 6 ft	Materials Polyurethane	Maximum Operating Pressure 10000	Alternate Part Numbers Alternate Part Number C1JN25	Supplier Part Number 9764	Product Weight 2.04 lbs

Similar Products

Model Number	Materials	I.D.	Fittings	Length	Guard Type	Includes	Maximum Operating Pressure	Burst Pressure
9754 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	Coupler & Dust Cap	10000	20000
9756 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	None	10000	20000
9733 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	3 ft	Plastic	None	10000	20000
9757 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	8 ft	Plastic	None	10000	20000
9758 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9759 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	12 ft	Plastic	None	10000	20000
9760 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
9764 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	Coupler & Dust Cap	10000	20000
9765 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	2 ft	Spring	None	10000	20000
9766 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	3 ft	Spring	None	10000	20000
9767 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	None	10000	20000
9769 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	10 ft	Spring	None	10000	20000
9771 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	20 ft	Spring	None	10000	20000
9775 High Pressure Hose Assembly	Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	40000
9777 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9778 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
TWH15 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	15 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH20 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH50 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	50 ft	Plastic	Coupler & Dust Cap	10000	40000

Product Questions & Answers (3)

Question by: Scott M on Jul 3, 2025, 7:33 PM

hose says it'll go up to 10,000 psi, is that a continuous working pressure or just a peak they're using for the spec sheet?

Answer by: Customer Support on Jul 5, 2025, 8:59 AM

That 10,000 psi rating is the working pressure, meaning it's what the hose is built to handle in continuous service. Burst pressure sits at 20,000 psi, which gives you a 2:1 safety margin over the working rating. So you're not just looking at a momentary spike tolerance, that 10,000 figure is what the assembly is rated to run at day in and day out.

Question by: Gene C on Jul 25, 2025, 3:47 PM

got a 10,000 psi setup, is this hose assembly actually rated to run that all day or is that just a peak number?

Answer by: Customer Support on Jul 26, 2025, 4:50 PM

For continuous service, it is rated at 10,000 psi working pressure with a 20,000 psi burst pressure. Temperature-wise it is intended for continuous use from -40°F to 150°F.

Question by: Cody C on Mar 8, 2026, 5:26 PM

What's the smallest space I can bend this hose in without messing it up?

Answer by: Customer Support on Mar 9, 2026, 8:21 PM

This hose is built to handle the minimum SAE bend radius without causing any issues with its service life.
