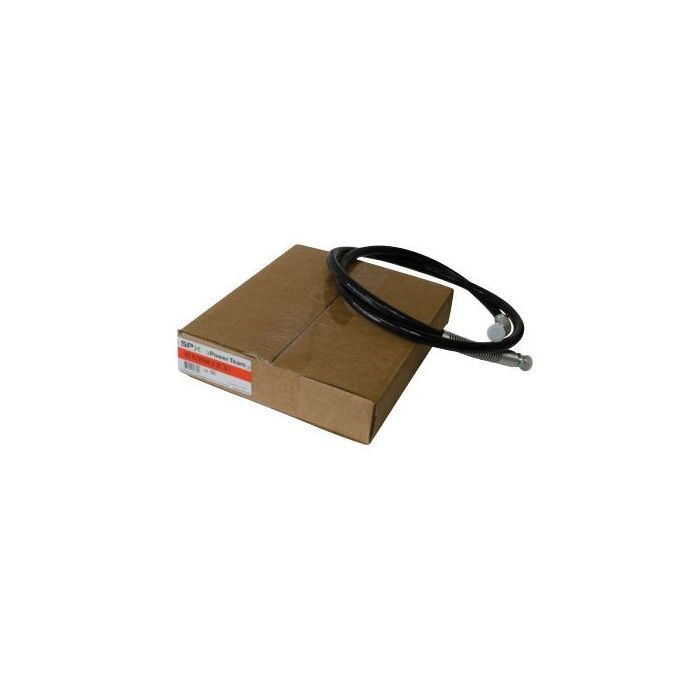

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

Description & Features

Built for demanding high-pressure hydraulic service, the Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI features a nylon core tube with polyester fiber reinforcement, delivering durability well beyond standard rubber hose in continuous-duty applications. Rated to 10,000 psi operating pressure with a 20,000 psi burst rating, the polyurethane construction handles a service temperature range of -40° to 150°F while resisting the wear and flexing that shorten hose service life.

The 0.25 inch ID hose comes pre-fitted with 3/8 NPTF fittings on both ends and is protected by a spring guard suited to the smaller bore size. This assembly complies with MHI standard IJ100, making it a reliable fit for SPX High Force Hydraulics equipment and compatible hydraulic circuits requiring a standardized, ready-to-install hose solution.

SKU: 9769

Supplier Part Number (MPN): 9769

Alternate Part Numbers: C1KL19

Specifications

Burst Pressure 20000	Brand HYDRAULIC TECH USA LLC(SPX)	Brand Hydraulic Tech USA	Pack Size 1.00	UOM EA	Fittings 3/8 NPTF	Guard Type Spring	I.D. 0.25 in	Includes None	Length 10 ft	Materials Polyurethane	Maximum Operating Pressure 10000	Alternate Part Numbers Alternate Part Number C1KL19	Supplier Part Number 9769	Product Weight 2.17 lbs

Similar Products

Model Number	Materials	I.D.	Fittings	Length	Guard Type	Includes	Maximum Operating Pressure	Burst Pressure
9754 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	Coupler & Dust Cap	10000	20000
9756 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	None	10000	20000
9733 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	3 ft	Plastic	None	10000	20000
9757 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	8 ft	Plastic	None	10000	20000
9758 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9759 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	12 ft	Plastic	None	10000	20000
9760 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
9764 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	Coupler & Dust Cap	10000	20000
9765 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	2 ft	Spring	None	10000	20000
9766 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	3 ft	Spring	None	10000	20000
9767 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	None	10000	20000
9769 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	10 ft	Spring	None	10000	20000
9771 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	20 ft	Spring	None	10000	20000
9775 High Pressure Hose Assembly	Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	40000
9777 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9778 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
TWH15 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	15 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH20 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH50 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	50 ft	Plastic	Coupler & Dust Cap	10000	40000

Product Questions & Answers (1)

Question by: Troy P on Apr 23, 2025, 7:07 AM

hose is rated to 10,000 psi but what's the burst pressure on it? running some high-force hydraulic circuits and need to know there's a real safety margin built in

Answer by: Customer Support on Apr 25, 2025, 6:33 AM

Burst pressure on this assembly comes in at 20,000 psi, so you're looking at a 2:1 ratio over the 10,000 psi operating rating. That's a meaningful cushion for demanding hydraulic circuits running continuous duty cycles.
