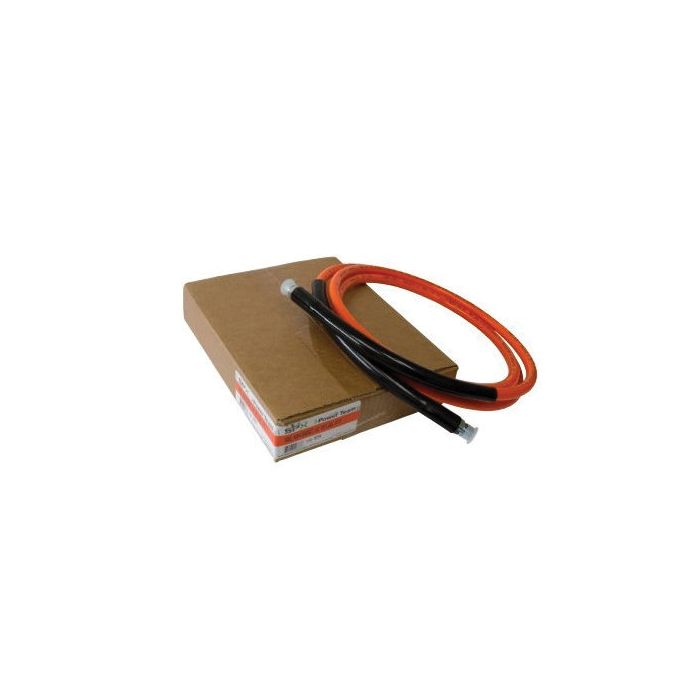

Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

Description & Features

This non-conductive hydraulic hose assembly from SPX Hydraulic Technologies offers a safe level of electrical isolation, with a leakage factor of less than 50 microamperes. Its polyurethane covering is colored orange for easy identification and is non-perforated to prevent moisture ingress.

The 20-foot hydraulic hose has a 0.25-inch inside diameter and features 3/8-inch NPTF fittings on both ends and a plastic guard. It is designed for a maximum operating pressure of 10,000 psi.

SKU: 9775

Supplier Part Number (MPN): 9775

Alternate Part Numbers: C1KL21

Specifications

Brand
Power Team®
Cover Material
Polyurethane
Fitting Connection Type
FNPT
Fitting Size
3/8 in
grp Non Conductive Hose
For Applications Requiring Electrical Isolation By the Hose, Non-Conductive Hose Has A Leakage Factor of Less Than 50 mA, Considered A Safe Level of Conductivity By SAE Standards, the Covering Is Polyurethane and Colored Orange for Easy Identification As
grp Polyurethane Hose
Made Up of Nylon Core Tube with Polyester Fiber Reinforcement Which Will Withstand the Minimum SAE Bend Radius Without Shortening Service Life, These Hoses Last Up to Seven Times Longer Than Rubber Hose and are Suitable for Continuous Service At Temperatu
grp Rubber Hose
2-Ply Rated Hose Reinforced with Two Braids of High-Tensile Steel Wire, the Rubber Covering Is Oil and Weather-Resistant, These Hoses are MSHA Approved
Guard Type
Plastic
Hose Color
Orange
Hose Type
Non-Conductive
Inside Diameter
1/4 in
Resistance Properties
Moisture
Tube Material
Nylon

Similar Products

Model Number Inside Diameter Length Tube Material Price Action
Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9758 High Pressure Hose Assembly

1/4 in

Rubber

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9756 High Pressure Hose Assembly

1/4 in

Rubber

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9769 High Pressure Hose Assembly

1/4 in

Nylon

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9777 High Pressure Hose Assembly

0.38 in

Rubber

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9764 High Pressure Hose Assembly

1/4 in

Nylon

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9754 High Pressure Hose Assembly

1/4 in

Rubber

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9771 High Pressure Hose Assembly

1/4 in

Nylon

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9767 High Pressure Hose Assembly

1/4 in

Nylon

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 2 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9765 High Pressure Hose Assembly

1/4 in

Nylon

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9760 High Pressure Hose Assembly

1/4 in

Rubber

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9778 High Pressure Hose Assembly

0.38 in

Rubber

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 8 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9757 High Pressure Hose Assembly

1/4 in

Rubber

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 3 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9733 High Pressure Hose Assembly

0.38 in

Rubber

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 12 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9759 High Pressure Hose Assembly

1/4 in

Rubber

Product Questions & Answers (3)

Question by: Kent R on Jan 25, 2026, 12:45 PM
hose is orange, is that just for looks or does it actually mean something for how its used on the job?
Answer by: Customer Support on Jan 27, 2026, 9:50 AM
Orange on this hose is intentional and functional. Non-conductive hoses are colored orange specifically so workers and equipment operators can quickly identify them as electrically isolated lines. When you're working around energized equipment, being able to spot that hose at a glance matters a lot for keeping things safe.
Question by: Danny S on Oct 18, 2025, 2:04 PM
Will this hose work with a standard hydraulic pump, or do I need something special?
Answer by: Customer Support on Oct 20, 2025, 7:43 AM
This non-conductive hose assembly is designed to work with any standard hydraulic pump, provided it meets the 10,000 psi maximum operating pressure.
Question by: Vince M on May 21, 2025, 5:14 PM
need a hose that won’t carry stray voltage, is this one actually non-conductive or is that just the jacket color
Answer by: Customer Support on May 23, 2025, 6:33 AM
For electrical isolation, this hose is rated as non-conductive with a leakage factor under 50 microamperes, which is considered a safe level by SAE standards. The orange polyurethane cover is there to help you quickly spot it as the non-conductive style, and the cover is non-perforated to keep moisture from getting in and changing conductivity.
