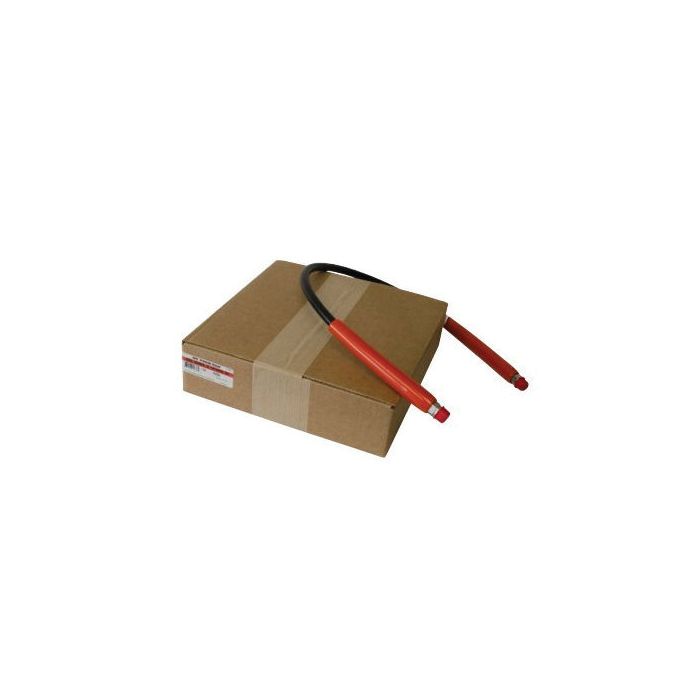

main product photo

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

Ask A Question

Description & Features

This wire-braid hydraulic hose assembly from SPX Hydraulic Technologies features a 0.38 inch inside diameter and is 10 feet in length. The rubber, wire-braid construction ensures durability and reliable performance in demanding hydraulic applications.

This high-pressure hose is equipped with 3/8 NPTF fittings on both ends for secure connections. A plastic guard is included for added protection. This rubber, wire-braid hydraulic hose assembly has a maximum operating pressure of 10000 PSI and a burst pressure of 20000 PSI.

SKU: 9777

Supplier Part Number (MPN): 9777

Alternate Part Numbers: C1JN27

Specifications

Brand
Power Team®
Cover Material
Rubber
Fitting Connection Type
FNPT
Fitting Size
3/8 in
grp Non Conductive Hose
For Applications Requiring Electrical Isolation By the Hose, Non-Conductive Hose Has A Leakage Factor of Less Than 50 mA, Considered A Safe Level of Conductivity By SAE Standards, the Covering Is Polyurethane and Colored Orange for Easy Identification As
grp Polyurethane Hose
Made Up of Nylon Core Tube with Polyester Fiber Reinforcement Which Will Withstand the Minimum SAE Bend Radius Without Shortening Service Life, These Hoses Last Up to Seven Times Longer Than Rubber Hose and are Suitable for Continuous Service At Temperatu
grp Rubber Hose
2-Ply Rated Hose Reinforced with Two Braids of High-Tensile Steel Wire, the Rubber Covering Is Oil and Weather-Resistant, These Hoses are MSHA Approved
Guard Type
Plastic
Hose Type
High-Flow
Inside Diameter
0.38 in
Resistance Properties
Oil, Weather
Tube Material
Rubber

Similar Products

Model Number Materials I.D. Fittings Length Guard Type Includes Maximum Operating Pressure Burst Pressure Price Action
Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9754 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

6 ft

Plastic

Coupler & Dust Cap

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9756 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

6 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 3 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9733 High Pressure Hose Assembly

Rubber, Wire-braid

0.375 in

3/8 NPTF

3 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 8 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9757 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

8 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9758 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

10 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 12 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9759 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

12 ft

Plastic

None

10000

20000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9760 High Pressure Hose Assembly

Rubber, Wire-braid

0.25 in

3/8 NPTF

20 ft

Plastic

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9764 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

6 ft

Spring

Coupler & Dust Cap

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 2 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9765 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

2 ft

Spring

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 3 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9766 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

3 ft

Spring

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 6 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9767 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

6 ft

Spring

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9769 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

10 ft

Spring

None

10000

20000

Polyurethane Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Spring Guard, Up To 10000.00 PSI

9771 High Pressure Hose Assembly

Polyurethane

0.25 in

3/8 NPTF

20 ft

Spring

None

10000

20000

Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9775 High Pressure Hose Assembly

Non-Conductive

0.25 in

3/8 NPTF

20 ft

Plastic

None

10000

40000

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

9778 High Pressure Hose Assembly

Rubber, Wire-braid

0.375 in

3/8 NPTF

20 ft

Plastic

None

10000

20000

Dual-Line Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 15 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

TWH15 High Pressure Hose Assembly

Dual-Line Non-Conductive

0.25 in

3/8 NPTF

15 ft

Plastic

Coupler & Dust Cap

10000

40000

Dual-Line Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

TWH20 High Pressure Hose Assembly

Dual-Line Non-Conductive

0.25 in

3/8 NPTF

20 ft

Plastic

Coupler & Dust Cap

10000

40000

Dual-Line Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 50 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

TWH50 High Pressure Hose Assembly

Dual-Line Non-Conductive

0.25 in

3/8 NPTF

50 ft

Plastic

Coupler & Dust Cap

10000

40000

Product Questions & Answers (3)

Question by: Brett A on May 4, 2025, 8:15 PM
What kind of fluid can I run through this hose?
Answer by: Customer Support on May 6, 2025, 7:15 AM
This SPX Hydraulic Technologies hose assembly is designed for hydraulic applications. The rubber covering is oil and weather resistant.
Question by: Dwight J on Oct 22, 2025, 9:12 PM
rated at 10,000 psi but what's the burst pressure on this thing? trying to figure out how much safety margin we're actually working with before i spec it in
Answer by: Customer Support on Oct 23, 2025, 9:52 PM
Burst pressure on this assembly is 20,000 psi, so you're looking at a 2:1 ratio against the rated operating pressure of 10,000 psi. That's a solid cushion for high-force hydraulic work, and it's consistent with what SPX builds into their rubber wire-braid line. The hose itself is 2-ply construction reinforced with two braids of high tensile steel wire, so the rating isn't just a paper number.
Question by: Glen T on May 14, 2025, 6:01 AM
got a 10,000 psi setup, will this hose handle that all day long or am i pushin it?
Answer by: Customer Support on May 15, 2025, 10:36 AM
Rated operating pressure is 10,000 psi, so it matches a 10K system for normal use. The burst pressure is 20,000 psi, which is a separate safety limit, not a pressure you run it at.
