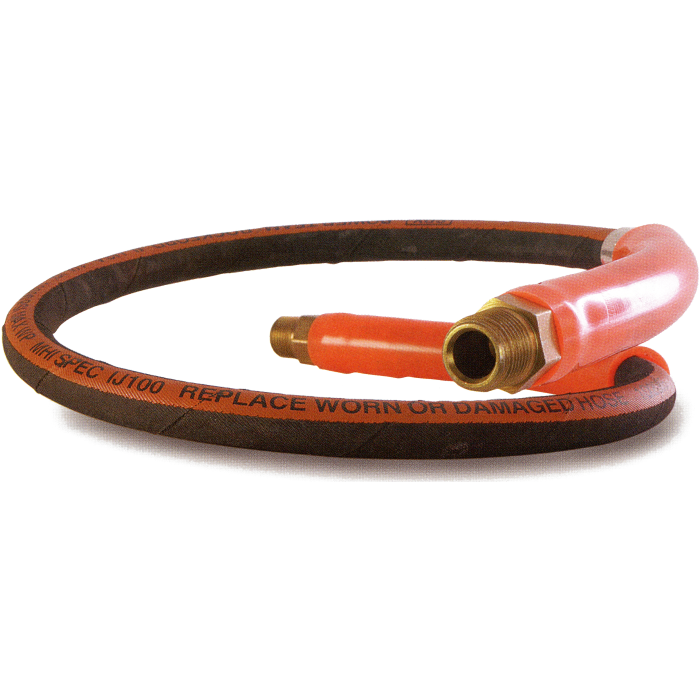

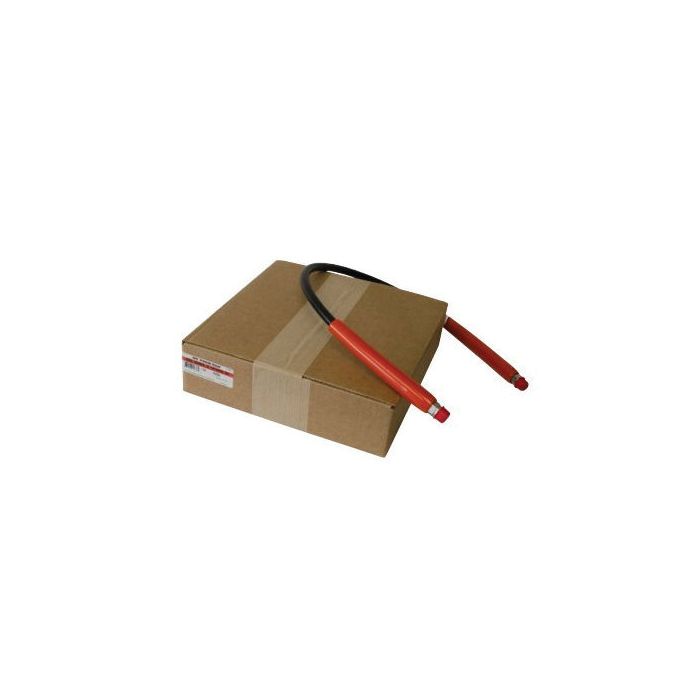

Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

Description & Features

Rated for continuous service at 10,000 psi, this 20-foot assembly is built for high-pressure hydraulic applications where durability and compliance matter. The Rubber, Wire-braid Hydraulic Hose Assembly, 0.38 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI from SPX Hydraulic Technologies features a 2-ply construction reinforced with two braids of high-tensile steel wire, and an oil- and weather-resistant rubber covering suited to demanding industrial environments.

With a 3/8-inch internal diameter and 3/8" NPTF fittings on both ends, the assembly connects directly to standard hydraulic tooling and equipment. A plastic hose guard provides added protection against abrasion and mechanical wear. The hose carries Msha approval and conforms to Mhi standard IJ100, making it appropriate for use in mining and other regulated settings. Burst pressure is rated at 20,000 psi.

SKU: 9778

Supplier Part Number (MPN): 9778

Alternate Part Numbers: C1KL22

Specifications

Brand Power Team®	Cover Material Rubber	Fitting Connection Type FNPT	Fitting Size 3/8 in	grp Non Conductive Hose For Applications Requiring Electrical Isolation By the Hose, Non-Conductive Hose Has A Leakage Factor of Less Than 50 mA, Considered A Safe Level of Conductivity By SAE Standards, the Covering Is Polyurethane and Colored Orange for Easy Identification As	grp Polyurethane Hose Made Up of Nylon Core Tube with Polyester Fiber Reinforcement Which Will Withstand the Minimum SAE Bend Radius Without Shortening Service Life, These Hoses Last Up to Seven Times Longer Than Rubber Hose and are Suitable for Continuous Service At Temperatu	grp Rubber Hose 2-Ply Rated Hose Reinforced with Two Braids of High-Tensile Steel Wire, the Rubber Covering Is Oil and Weather-Resistant, These Hoses are MSHA Approved	Guard Type Plastic	Hose Type High-Flow	Inside Diameter 0.38 in	Resistance Properties Oil, Weather	Tube Material Rubber

Similar Products

Model Number	Materials	I.D.	Fittings	Length	Guard Type	Includes	Maximum Operating Pressure	Burst Pressure
9754 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	Coupler & Dust Cap	10000	20000
9756 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	None	10000	20000
9733 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	3 ft	Plastic	None	10000	20000
9757 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	8 ft	Plastic	None	10000	20000
9758 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9759 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	12 ft	Plastic	None	10000	20000
9760 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
9764 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	Coupler & Dust Cap	10000	20000
9765 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	2 ft	Spring	None	10000	20000
9766 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	3 ft	Spring	None	10000	20000
9767 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	None	10000	20000
9769 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	10 ft	Spring	None	10000	20000
9771 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	20 ft	Spring	None	10000	20000
9775 High Pressure Hose Assembly	Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	40000
9777 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
TWH15 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	15 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH20 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH50 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	50 ft	Plastic	Coupler & Dust Cap	10000	40000

Product Questions & Answers (2)

Question by: Earl T on Jan 14, 2026, 6:34 PM

this hose rated for mining use, or is that only certain versions?

Answer by: Customer Support on Jan 16, 2026, 6:36 AM

MSHA approval covers this rubber wire-braid assembly, so it meets the requirements for mining environments. It also conforms to MHI standard IJ100, which is the compliance benchmark across the full line of rubber hose assemblies in this group. The 10,000 psi operating pressure and the oil and weather-resistant rubber covering make it well suited for the kind of tough conditions you run into underground or in heavy industrial settings.

Question by: Todd H on Apr 22, 2025, 10:21 AM

Reckon this hose is okay for a hydraulic press application? Just need somethin' reliable.

Answer by: Customer Support on Apr 23, 2025, 3:35 PM

Designed for high-pressure hydraulic systems, this hose assembly is rated to handle continuous service at up to 10,000 psi, making it suitable for many hydraulic press setups.
