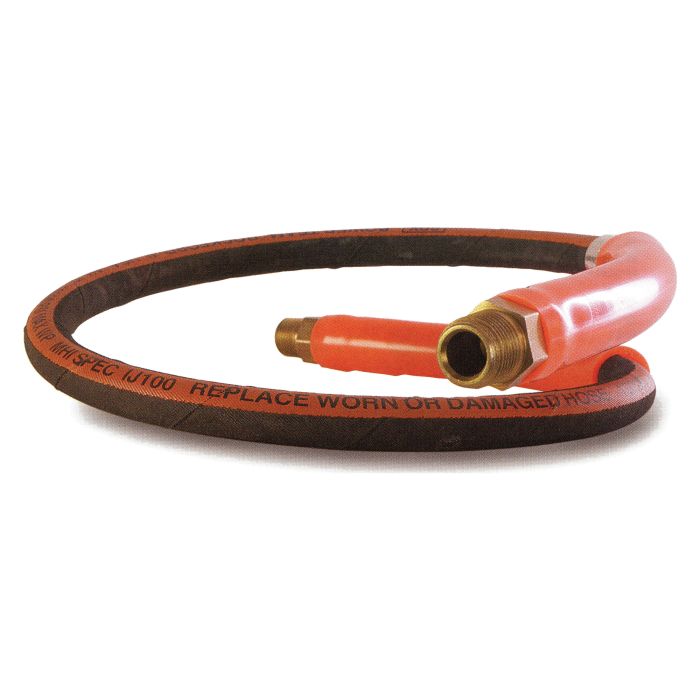

Dual-Line Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 15 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

Description & Features

Engineered for demanding industrial applications, the Dual-Line Non-Conductive Hydraulic Hose Assembly offers a 0.25-inch inner diameter and a 15-foot length, providing reliable performance in high-pressure environments. This assembly is equipped with 3/8 NPTF fittings and a plastic guard for enhanced durability and protection.

Constructed from non-conductive materials, this hose assembly is designed to maintain electrical isolation with a leakage factor under 50 microamperes, meeting SAE safety standards. It features a polyurethane cover colored orange for easy identification and superior moisture resistance. With a maximum operating pressure of 10,000 PSI and a burst pressure of 40,000 PSI, it is ideal for tasks requiring robust pressure handling capabilities.

SKU: TWH15

Supplier Part Number (MPN): TWH15

Alternate Part Numbers: C1KG41

Specifications

Brand SPX-FLOW	Cover Material Polyurethane	Fitting Connection Type FNPT	Fitting Size 3/8 in	For Use With Topside Torque Wrench	grp Non Conductive Hose For Applications Requiring Electrical Isolation By the Hose, Non-Conductive Hose Has A Leakage Factor of Less Than 50 mA, Considered A Safe Level of Conductivity By SAE Standards, the Covering Is Polyurethane and Colored Orange for Easy Identification As	grp Polyurethane Hose Made Up of Nylon Core Tube with Polyester Fiber Reinforcement Which Will Withstand the Minimum SAE Bend Radius Without Shortening Service Life, These Hoses Last Up to Seven Times Longer Than Rubber Hose and are Suitable for Continuous Service At Temperatu	grp Rubber Hose 2-Ply Rated Hose Reinforced with Two Braids of High-Tensile Steel Wire, the Rubber Covering Is Oil and Weather-Resistant, These Hoses are MSHA Approved	Guard Type Plastic	Hose Color Orange	Hose Type Standard Twin Line	Inside Diameter 1/4 in	Series TWH Series	Tube Material Polyurethane

Similar Products

Model Number	Materials	I.D.	Fittings	Length	Guard Type	Includes	Maximum Operating Pressure	Burst Pressure
9754 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	Coupler & Dust Cap	10000	20000
9756 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	None	10000	20000
9733 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	3 ft	Plastic	None	10000	20000
9757 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	8 ft	Plastic	None	10000	20000
9758 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9759 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	12 ft	Plastic	None	10000	20000
9760 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
9764 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	Coupler & Dust Cap	10000	20000
9765 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	2 ft	Spring	None	10000	20000
9766 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	3 ft	Spring	None	10000	20000
9767 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	None	10000	20000
9769 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	10 ft	Spring	None	10000	20000
9771 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	20 ft	Spring	None	10000	20000
9775 High Pressure Hose Assembly	Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	40000
9777 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9778 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
TWH20 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH50 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	50 ft	Plastic	Coupler & Dust Cap	10000	40000

Product Questions & Answers (1)

Question by: Eddie M on Sep 19, 2025, 12:36 PM

got a setup that needs electrical isolation, is this hose actually non-conductive or is that just talk

Answer by: Customer Support on Sep 20, 2025, 8:12 PM

For jobs where the hose needs to provide electrical isolation, this dual-line assembly is built as a non-conductive hose with a leakage factor under 50 microamperes, which SAE considers a safe level of conductivity. It also uses an orange, non-perforated polyurethane cover so moisture does not get in and change the hose’s conductivity.
