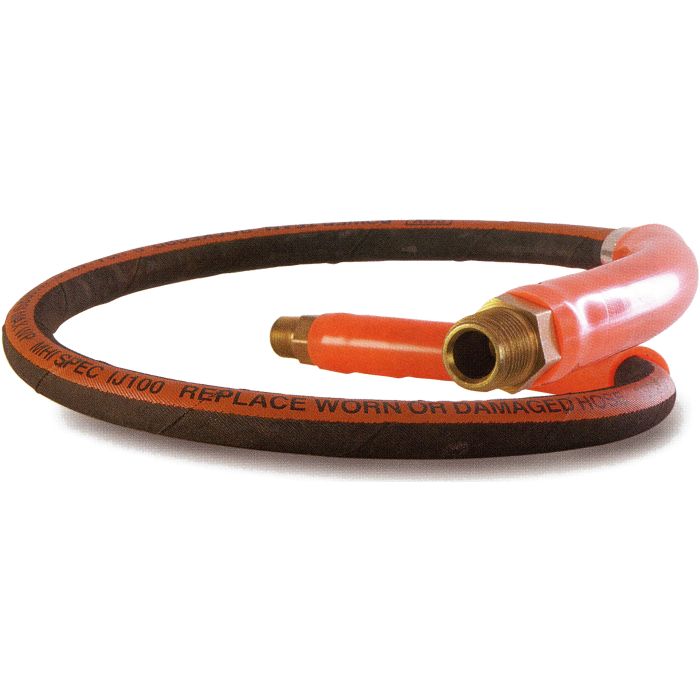

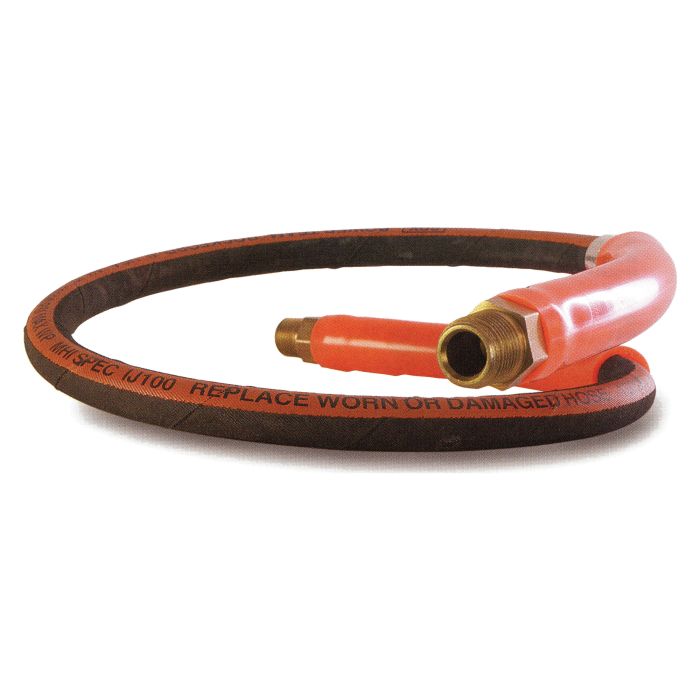

Dual-Line Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 20 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

Description & Features

This dual-line, non-conductive hydraulic hose assembly from SPX Hydraulic Technologies is designed for applications requiring electrical isolation. The hose features a polyurethane covering, colored orange for easy identification, and has a leakage factor of less than 50 microamperes, which meets SAE standards for safe conductivity.

With 3/8" NPTF fittings on both ends, this high-pressure hose assembly has a 0.25-inch ID and a length of 20 feet. All hoses have plastic guards. It is designed for a maximum operating pressure of 10,000 PSI and a burst pressure of 40,000 PSI.

SKU: TWH20

Supplier Part Number (MPN): TWH20

Alternate Part Numbers: C1KG42

Specifications

Brand SPX-FLOW	Cover Material Polyurethane	Fitting Connection Type FNPT	Fitting Size 3/8 in	For Use With Topside Torque Wrench	grp Non Conductive Hose For Applications Requiring Electrical Isolation By the Hose, Non-Conductive Hose Has A Leakage Factor of Less Than 50 mA, Considered A Safe Level of Conductivity By SAE Standards, the Covering Is Polyurethane and Colored Orange for Easy Identification As	grp Polyurethane Hose Made Up of Nylon Core Tube with Polyester Fiber Reinforcement Which Will Withstand the Minimum SAE Bend Radius Without Shortening Service Life, These Hoses Last Up to Seven Times Longer Than Rubber Hose and are Suitable for Continuous Service At Temperatu	grp Rubber Hose 2-Ply Rated Hose Reinforced with Two Braids of High-Tensile Steel Wire, the Rubber Covering Is Oil and Weather-Resistant, These Hoses are MSHA Approved	Guard Type Plastic	Hose Color Orange	Hose Type Standard Twin Line	Inside Diameter 1/4 in	Series TWH Series	Tube Material Polyurethane

Similar Products

Model Number	Materials	I.D.	Fittings	Length	Guard Type	Includes	Maximum Operating Pressure	Burst Pressure
9754 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	Coupler & Dust Cap	10000	20000
9756 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	None	10000	20000
9733 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	3 ft	Plastic	None	10000	20000
9757 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	8 ft	Plastic	None	10000	20000
9758 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9759 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	12 ft	Plastic	None	10000	20000
9760 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
9764 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	Coupler & Dust Cap	10000	20000
9765 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	2 ft	Spring	None	10000	20000
9766 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	3 ft	Spring	None	10000	20000
9767 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	None	10000	20000
9769 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	10 ft	Spring	None	10000	20000
9771 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	20 ft	Spring	None	10000	20000
9775 High Pressure Hose Assembly	Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	40000
9777 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9778 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
TWH15 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	15 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH50 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	50 ft	Plastic	Coupler & Dust Cap	10000	40000

Product Questions & Answers (2)

Question by: Johnny M on Dec 25, 2025, 4:53 PM

Non-conductive hose, what exactly does that mean for something running at this kind of pressure, and is the orange color just for looks or does it actually serve a purpose?

Answer by: Customer Support on Dec 27, 2025, 6:15 AM

At 10,000 PSI, electrical isolation matters a lot in certain environments, especially around energized equipment or aerial work. Non-conductive means the hose is built so electricity can't travel through it, and this one holds to less than 50 microamperes of leakage, which SAE recognizes as a safe conductivity threshold. The orange covering isn't decorative. It's an industry standard color used specifically to flag non-conductive hose so workers can identify it at a glance without having to trace labels or markings. The covering is also solid polyurethane with no perforations, which keeps moisture out. Moisture getting into the hose wall would compromise conductivity ratings, so that sealed covering is doing real protective work, not just holding color.

Question by: Larry C on Jan 8, 2026, 1:36 PM

What size fittings come on this hose?

Answer by: Customer Support on Jan 9, 2026, 5:21 PM

It comes with 3/8" NPTF fittings on both ends, so it should hook right up to standard hydraulic equipment.
