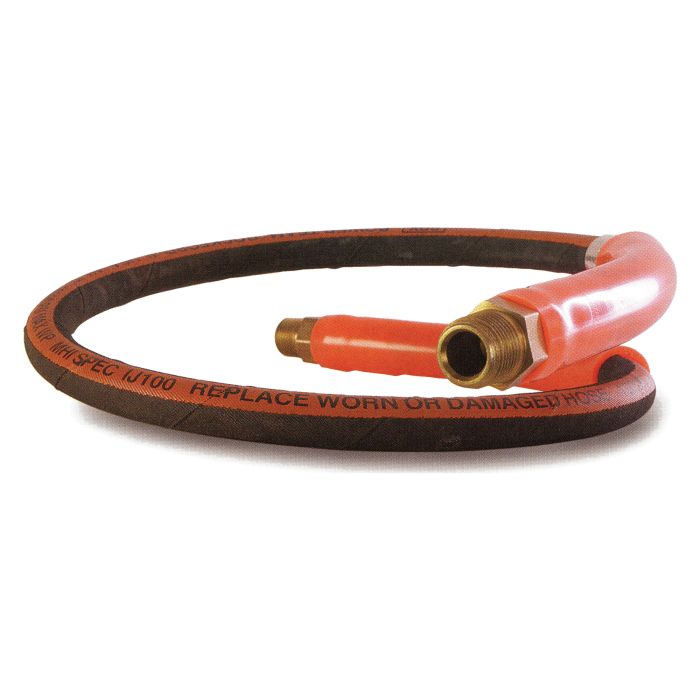

Dual-Line Non-Conductive Hydraulic Hose Assembly, 0.25 Inch ID Hose, 50 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

Description & Features

Designed for demanding hydraulic applications, this dual-line non-conductive hydraulic hose assembly boasts a compact 0.25-inch internal diameter and a robust 50-foot length, ensuring ample reach for industrial tasks. Engineered to withstand a maximum operating pressure of 10,000 PSI, it features 3/8 NPTF fittings on both ends for secure and reliable connections. The polyurethane covering is colored orange for easy identification, reinforcing its non-conductive properties with a leakage factor below 50 microamperes, adhering to SAE safety standards.

The assembly is fortified with a plastic guard to protect against abrasion and enhance durability. It consists of a nylon core tube with polyester fiber reinforcement, offering a long-lasting service life up to seven times longer than traditional rubber hoses, and performs reliably in temperatures ranging from -40° to 150°F. This product aligns with MHI standard IJ100, marking it as an essential component for environments requiring high-pressure hydraulic solutions.

SKU: TWH50

Supplier Part Number (MPN): TWH50

Alternate Part Numbers: C1KG43

Specifications

Brand SPX-FLOW	Cover Material Polyurethane	Fitting Connection Type FNPT	Fitting Size 3/8 in	For Use With Topside Torque Wrench	grp Non Conductive Hose For Applications Requiring Electrical Isolation By the Hose, Non-Conductive Hose Has A Leakage Factor of Less Than 50 mA, Considered A Safe Level of Conductivity By SAE Standards, the Covering Is Polyurethane and Colored Orange for Easy Identification As	grp Polyurethane Hose Made Up of Nylon Core Tube with Polyester Fiber Reinforcement Which Will Withstand the Minimum SAE Bend Radius Without Shortening Service Life, These Hoses Last Up to Seven Times Longer Than Rubber Hose and are Suitable for Continuous Service At Temperatu	grp Rubber Hose 2-Ply Rated Hose Reinforced with Two Braids of High-Tensile Steel Wire, the Rubber Covering Is Oil and Weather-Resistant, These Hoses are MSHA Approved	Guard Type Plastic	Hose Color Orange	Hose Type Standard Twin Line	Inside Diameter 1/4 in	Series TWH Series	Tube Material Polyurethane

Similar Products

Model Number	Materials	I.D.	Fittings	Length	Guard Type	Includes	Maximum Operating Pressure	Burst Pressure
9754 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	Coupler & Dust Cap	10000	20000
9756 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	None	10000	20000
9733 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	3 ft	Plastic	None	10000	20000
9757 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	8 ft	Plastic	None	10000	20000
9758 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9759 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	12 ft	Plastic	None	10000	20000
9760 High Pressure Hose Assembly	Rubber, Wire-braid	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
9764 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	Coupler & Dust Cap	10000	20000
9765 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	2 ft	Spring	None	10000	20000
9766 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	3 ft	Spring	None	10000	20000
9767 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	None	10000	20000
9769 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	10 ft	Spring	None	10000	20000
9771 High Pressure Hose Assembly	Polyurethane	0.25 in	3/8 NPTF	20 ft	Spring	None	10000	20000
9775 High Pressure Hose Assembly	Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	40000
9777 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9778 High Pressure Hose Assembly	Rubber, Wire-braid	0.375 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
TWH15 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	15 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH20 High Pressure Hose Assembly	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	Coupler & Dust Cap	10000	40000
