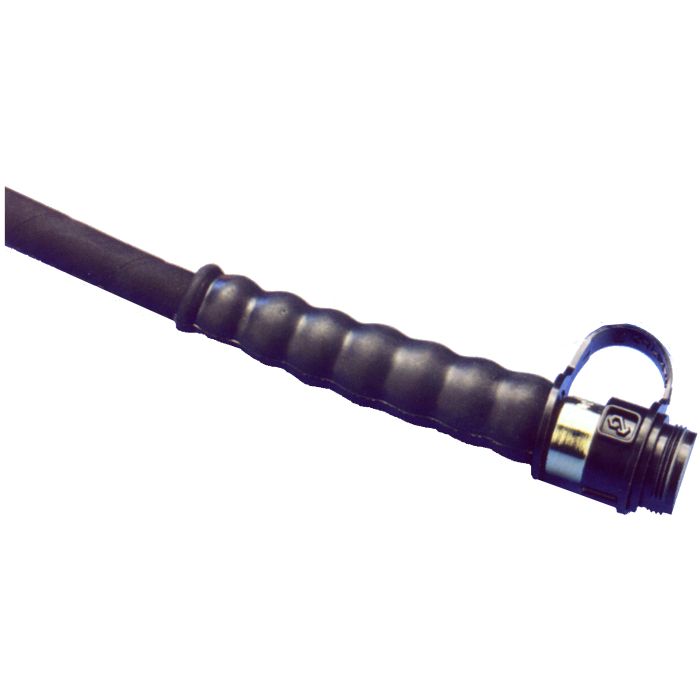

High Pressure Rubber Hydraulic Hose

Description & Features

Features	Rubber cover with 2 layers of braided steel. Designed to comply with Material Handling Institute IJ-100 hose specification. Flexible, with little ''memory'', is the best choice for long hose runs. Crimped-on rubber strain relief for improved life and durability.
Hose Oil Capacity	When using longer hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. Use the following formulas to determine the hose oil capacity. For 1/4 ID hoses: Capacity (in³) = 0.5892 x Length (ft). For 3/8 ID hoses: Capacity (in³) = 1.3608 x Length (ft).
Inside Diameter	1/4 and 3/8 inch.
Length	2-50 feet.
Maximum Operating Pressure	10,000 PSI.
Warning	Do not exceed 10,000 PSI maximum pressure. Do not handle hoses which are under pressure.

Model Number	Hose I.D.	Length	End 1	End 2	Price	Action
HC-9210 High Pressure Rubber Hose	0.25	10	3/8 NPT	CH-604 Male Coupler Half
