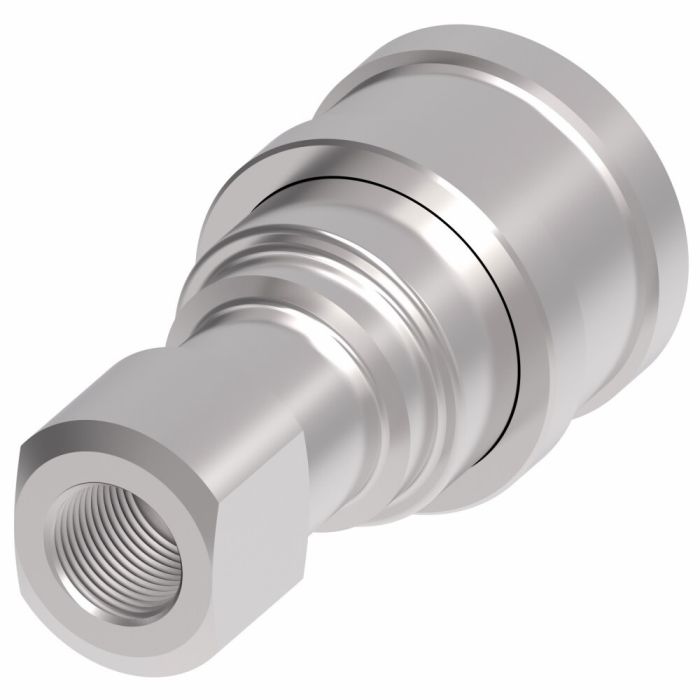

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Female Half, -04 Coupling, 1/4-18 Female NPT

Description & Features

Optimized for diverse fluid transfer applications, the Eaton HK Series Steel Quick Disconnect is engineered to meet dimensional requirements to ISO standard 7241-1 Series B. Featuring a self-sealing poppet valve design, it ensures robust sealing performance under various pressure conditions.

This female half coupling, with a -04 size and 1/4-18 NPTF thread, is designed for push-to-connect operations. Constructed using high-grade steel, it incorporates Buna-N seal material, providing a temperature range from -40deg;F to +250deg;F and minimal fluid loss of 0.90 cubic centimeters.

Additional seal options are available, including PTFE, Neoprene, FKM, EPDM, and Kalrezreg;, ensuring compatibility with numerous environments such as agriculture, hydraulic tools, general industry, construction, chemical, oil and gas, and aerospace sectors.

Back-up rings in the socket enhance durability, making it suitable for stringent applications like military, law enforcement/rescue, and medical fields.

MPN: 9143

Supplier Part Number: 2H16

Specifications

Brand
Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Style
Manual
Connection Type
FNPT
Connection Type 1
Female NPTF
Connection Type 2
Female NPTF
Dimensions
1.14 in Dia x 2.26 in L
Finish
Zinc Trivalent
Fitting Type
Coupling
Fluid Compatibility
Hydraulic Fluids
Hex Size
3/4 in
Latch Type
Push/Pull
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
HK1-8 Series
Thread Size
1/4-18
Valve Type
2-Way

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Connection Type 2 Connection Type Price Action
HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Female Half, -10 Coupling, 1/2-14 Female NPT

4HP26 HK Series Quick Disconnect

1/2 in

Female NPTF

1/2 in

Female NPTF

FNPT

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Female Half, -02 Coupling, 1/8-27 Female NPT

1H11 HK Series Quick Disconnect

1/8 in

Female NPTF

1/8 in

Female NPTF

FNPT

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Female Half, -16 Coupling, 1-11-1/2 Female NPT

8HP36 HK Series Quick Disconnect

1 in

Female NPTF

1 in

Female NPTF

FNPT

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Female Half, -12 Coupling, 3/4-14 Female NPT

6HP31 HK Series Quick Disconnect

3/4 in

Female Quick Disconnect

3/4 in

FNPTF

Female Quick-Disconnect, FNPT

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Female Half, -06 Coupling, 3/8-18 Female NPT

3H21 HK Series Quick Disconnect

3/8 in

Female NPTF

3/8 in

Female NPTF

FNPT

Danfoss / Eaton Cplng HK Series

1H4

1/8 in

Female ORB

7/16 in

Female ORB

Female ORB

Danfoss / Eaton Cplng HK Series

2H6

1/4 in

Female ORB

9/16 in

Female ORB

Female ORB

Danfoss / Eaton Cplng HK Series

2H6143

1/4 in

Female Push-to-Connect

9/16 in

Female 37 deg Swivel

Female JIC Swivel, Push-Fit

DANFOSS / EATON/HANSEN CPLNG

2H16118

1/4 in

Female NPTF

1/4 in

Female NPTF

FNPT

Danfoss / Eaton FEMale/ Socket Half

2H16143

1/4 in

Female NPTF

1/4 in

Female NPTF

FNPT

Danfoss / Eaton Cplng HK Series

2H16192

1/4 in

Female NPTF

1/4 in

Female NPTF

FNPT

Danfoss / Eaton FemaleSocket Half

3H21143

3/8 in

Female NPTF

3/8 in

Female NPTF

FNPT

Danfoss / Eaton Cplng HK Series

4HP10

1/2 in

Female ORB

1/2 in

Female ORB

Female ORB

Danfoss / Eaton FEMale/ Socket Half

4HP26143

1/2 in

Female NPTF

1/2 in

Female NPTF

FNPT

Product Questions & Answers (1)

Question by: Chad E on Feb 21, 2025, 9:45 AM
got one of these laying around the shop but it's beat up - what thread size is this female fitting again?
Answer by: Customer Support on Feb 22, 2025, 6:50 PM
Uses 1/4-18 female NPT threading for connection to your hydraulic system. Being part of the HK Series Industrial Interchange, it's built from steel construction to handle repeated connections and disconnections in shop environments.
