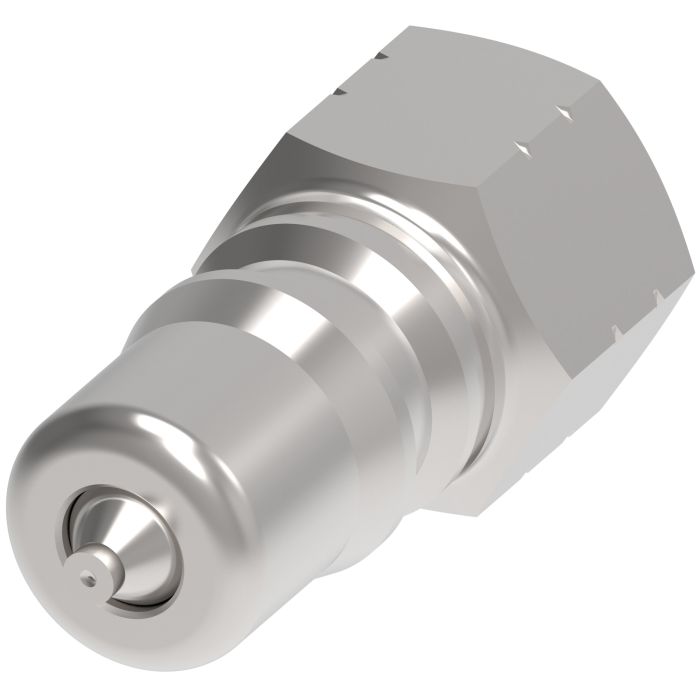

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Male Half, -04 Coupling, 1/4-18 Female NPT

Description & Features

The Danfoss / Eaton Hansen HK Series Quick Disconnect Couplings Plug is designed for various industries including agriculture, construction, transportation, and oil & gas. It meets ISO 7241-1 Series B standards and features a two-way self-sealing poppet valve for reliable pressure sealing.

The coupling has a -04 size with 1/4-18 NPTF threads, providing secure and efficient connections. Standard Buna-N seals offer durability, with optional seals available in PTFE, Neoprene, FKM, EPDM, and Kalrezreg; for different applications. The coupling is engineered to minimize fluid loss, with a maximum air inclusion of 1.20 cubic centimeters and fluid loss of 0.90 cubic centimeters.

Operating temperatures range from -40deg;F to +250deg;F for Buna-N, making it suitable for demanding environments. The male half quick disconnect coupling ensures easy installation and maintenance, with PTFE backup rings enhancing socket integrity. This product is compliant with ECCN EAR99 regulations, ensuring it meets export control requirements.

Supplier Part Number: 2K16

Specifications

Brand
Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Style
Manual
Connection Type
FNPT
Connection Type 1
Female NPTF
Connection Type 2
Female NPTF
Dimensions
0.87 in Dia x 1.52 in L
Finish
Zinc Trivalent
Fitting Type
Coupling
Fluid Compatibility
Hydraulic Fluids
Hex Size
3/4 in
Latch Type
Push/Pull
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
HK1-8 Series
Thread Size
1/4-18
Valve Type
2-Way

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Connection Type 2 Connection Type Price Action
HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Male Half, -02 Coupling, 1/8-27 Female NPT

1K11 HK Series Quick Disconnect

1/8 in

Female NPTF

1/8 in

Female NPTF

FNPT

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Male Half, -12 Coupling, 3/4-14 Female NPT

6KP31 HK Series Quick Disconnect

3/4 in

Female NPTF

3/4 in

Female NPTF

FNPT

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Male Half, -10 Coupling, 1/2-14 Female NPT

4KP26 HK Series Quick Disconnect

1/2 in

Female NPTF

1/2 in

Female NPTF

FNPT

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Male Half, -06 Coupling, 3/8-18 Female NPT

3K21 HK Series Quick Disconnect

3/8 in

Female NPTF

3/8 in

Female NPTF

FNPT

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Male Half, -16 Coupling, 1-11-1/2 Female NPT

8KP36 HK Series Quick Disconnect

1 in

Female NPTF

1 in

Female NPTF

FNPT

Danfoss / Eaton Cplng HK Series

1K4

1/8 in

Female ORB

7/16 in

Female ORB

Female ORB

Danfoss / Eaton Cplng HK Series

2K6

1/4 in

Male Push-to-Connect

9/16 in

Female 37 deg Swivel

Female JIC Swivel, Push-Fit

Danfoss / Eaton Cplng HK Series

2K16BS

1/4 in

Female BSPP

1/4 in

Female BSPP

Female BSP

Danfoss / Eaton Cplng HK Series

2K6143

1/4 in

Male Push-to-Connect

9/16 in

Female 37 deg Swivel

Female JIC Swivel, Push-Fit

DANFOSS / EATON/HANSEN CPLNG

2K16118

1/4 in

Female NPTF

1/4 in

Female NPTF

FNPT

Danfoss / Eaton Male/Plug Half

2K16143

1/4 in

Female NPTF

1/4 in

Female NPTF

FNPT

Danfoss / Eaton Cplng HK Series

2K16192

1/4 in

Male Push-to-Connect

1/4 in

Female NPTF

FNPT, Push-Fit

Danfoss / Eaton Male/Plug Half

3K21143

3/8 in

Female NPTF

3/8 in

Female NPTF

FNPT

Danfoss / Eaton Cplng HK Series

4KP10

1/2 in

Female ORB

1/2 in

Female ORB

Female ORB

Danfoss / Eaton Male/Plug Half

4KP26143

1/2 in

Female NPTF

1/2 in

Female NPTF

FNPT

Product Questions & Answers (3)

Question by: Todd M on Aug 21, 2025, 11:47 AM
trying to swap out an old Series B plug, is this the male half with a 1/4-18 female NPT thread?
Answer by: Customer Support on Aug 22, 2025, 8:04 PM
It is the male half (plug) for an Industrial Interchange ISO 7241-1 Series B style coupling, and the threaded end is 1/4-18 female NPTF.
Question by: Melvin G on Dec 24, 2025, 5:17 PM
trying to swap out an old plug, what size and thread is this one?
Answer by: Customer Support on Dec 26, 2025, 11:32 AM
It is a -04 (1/4 inch) male half plug with 1/4-18 female NPTF threads, and it follows the ISO 7241-1 Series B (industrial interchange) dimensions.
Question by: Kurt S on Jul 20, 2025, 11:42 AM
Will this quick disconnect work with other brands that meet the Series B standard?
Answer by: Customer Support on Jul 22, 2025, 6:40 AM
Because it meets ISO 7241-1 Series B standards, it should be compatible with other couplings made to that spec.
