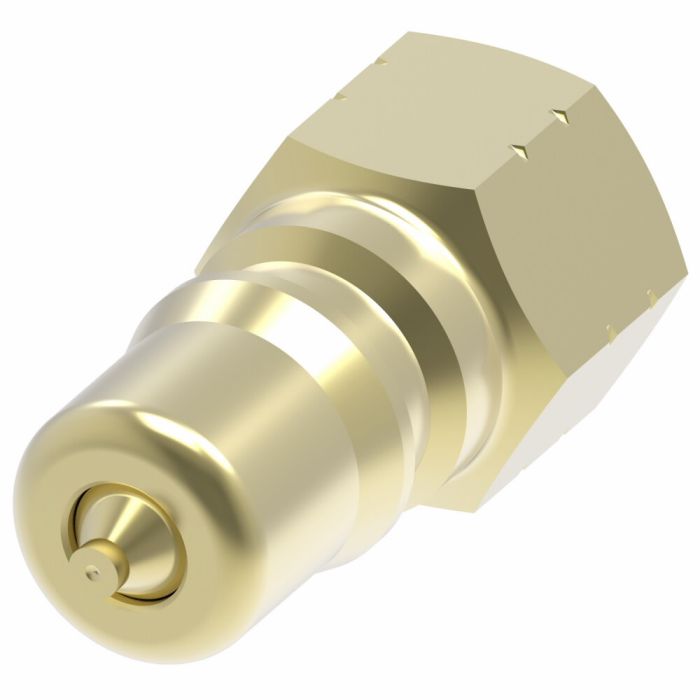

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -04 Coupling, 1/4-18 Female NPT

Ask A Question

Description & Features

The Danfoss / Eaton Hansen HK Series Quick Disconnect Couplings Plug is designed for a wide range of demanding applications including agriculture hydraulic tools general industry construction and fluid transfer.

Brass construction with stainless steel springs assures corrosion resistance and compatibility with various fluids. This coupling meets ISO standard 7241-1 Series B dimensional requirements.

The self-sealing poppet valves provide reliable high and low pressure sealing with standard Buna-N seals. Optional seal materials available include PTFE Neoprene FKM EPDM and Kalrezreg;.

Operating temperature ranges from -40deg;F to +250deg;F with Buna-N seals and up to +400deg;F with FKM seals. Featuring a 1/4-18 NPT thread and push-to-connect end type it ensures secure and efficient connectivity.

Fluid loss is minimized to 0.90 cubic centimeters and air inclusion is limited to 1.20 cubic centimeters. This coupling has no safety locking mechanism and does not use thread sealant.

Supplier Part Number: B2K16

Specifications

A
1.52
Air Inclusion Max
1.20 Cubic_centimeter
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
Coupling Size
-04
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.25
End Size 2
0.25
End Type 1
Push to Connect
End Type 2
NPTF
Fluid Loss
0.90 Cubic_centimeter
Minimum Working Temperature
-40
Safety locking Mechanism
None
Seal Material
Buna-N
Supplier Part Number
B2K16
Thread 1
1/4-18
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1KV78, Alternate Part Number MI-06194510, Alternate Part Number MINO-00015X32615, Alternate Part Number MINO-00925X12179
Product Weight
0.09 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A Price Action
HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -02 Coupling, 1/8-27 Female NPT

B1K11 HK Series Quick Disconnect

-02

1/8-27

Buna-N

1.26

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -06 Coupling, 3/8-18 Female NPT

B3K21 HK Series Quick Disconnect

-06

3/8-18

Buna-N

1.76

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -08 Coupling, 1/2-14 Female NPT

B4KP26 HK Series Quick Disconnect

-08

1/2-14

Buna-N

2.03

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -12 Coupling, 3/4-14 Female NPT

B6KP31 HK Series Quick Disconnect

-12

3/4-14

Buna-N

2.36

Product Questions & Answers (1)

Question by: Harvey C on Sep 28, 2025, 8:39 PM
Running this on a piece of ag equipment that sees everything from late-season mud to chemical exposure. The brass hold up alright in those conditions, or is that gonna be a weak point?
Answer by: Customer Support on Sep 30, 2025, 6:09 AM
Brass construction paired with stainless steel springs gives this coupling solid corrosion resistance across a wide range of fluids and environments. For straight hydraulic and general fluid transfer work in ag settings, it holds up well. If you're running it in contact with more aggressive chemicals regularly, the seal material is worth paying attention to. Standard seals are Buna-N, but you can spec it with Neoprene, FKM, EPDM, or Kalrez if the fluid compatibility requires something different.
