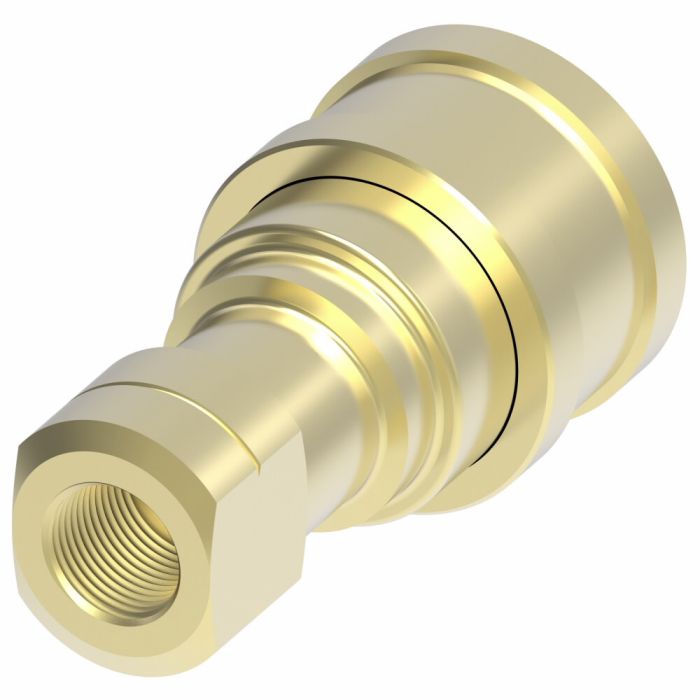

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Female Half, -08 Coupling, 1/2-14 Female NPT

Ask A Question

Description & Features

The HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect Female Half -08 Coupling 1/2-14 Female NPT is engineered for reliable performance in demanding fluid transfer hydraulic and related applications. Equipped with self-sealing poppet valves it ensures effective high and low-pressure sealing.

Constructed from brass with stainless steel springs this quick disconnect offers enhanced corrosion resistance and compatibility with diverse fluids. It supports a temperature range of -40deg;F to +250deg;F for Buna-N seals extending to +400deg;F for FKM seals making it suitable for various environments.

Designed according to ISO standard 7241-1 Series B the coupling features Push to Connect and NPTF end types with an end size of 0.5 inches. The lack of a safety locking mechanism and presence of Buna-N standard seals contribute to its streamlined design.

Ideal for sectors such as agriculture hydraulic tools general industry construction fluid transfer transportation military law enforcement/rescue chemical oil and gas HVAC food and beverage trucks aerospace and medical this product meets a broad spectrum of industry needs.

MPN: B4HP26

Supplier Part Number: B4HP26

Specifications

A
2.96
Air Inclusion Max
3.60 Cubic_centimeter
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
B
1.86
Coupling Size
-08
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.50
End Size 2
0.50
End Type 1
Push to Connect
End Type 2
NPTF
Fluid Loss
3.50 Cubic_centimeter
Minimum Working Temperature
-40
Safety locking Mechanism
None
Seal Material
Buna-N
Supplier Part Number
B4HP26
Thread 1
1/2-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1KV79, Alternate Part Number MI-06230731, Alternate Part Number MINO-00015X08855, Alternate Part Number MINO-00402F32436
Product Weight
0.91 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Action
HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Female Half, -02 Coupling, 1/8-27 Female NPT

B1H11 HK Series Quick Disconnect

-02

1/8-27

Buna-N

1.91

0.98

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Female Half, -04 Coupling, 1/4-18 Female NPT

B2H16 HK Series Quick Disconnect

-04

1/4-18

Buna-N

2.26

1.14

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Female Half, -06 Coupling, 3/8-18 Female NPT

B3H21 HK Series Quick Disconnect

-06

3/8-18

Buna-N

2.56

1.42

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Female Half, -08 Coupling, 1/2-14 Female NPT

B4HP26 HK Series Quick Disconnect

-08

1/2-14

Buna-N

2.96

1.86

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Female Half, -12 Coupling, 3/4-14 Female NPT

B6HP31 HK Series Quick Disconnect

-12

3/4-14

Buna-N

3.48

2.22

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Female Half, -16 Coupling, 1 - 11-1/2 Female NPT

B8HP36 HK Series Quick Disconnect

-16

1 - 11-1/2

Buna-N

4.13

2.61

Product Questions & Answers (3)

Question by: Wes K on Feb 23, 2026, 1:55 PM
what seal options come with this thing, and can I swap 'em out for something that handles higher temps?
Answer by: Customer Support on Feb 25, 2026, 6:41 AM
Buna-N is the standard seal that ships with it, rated from -40°F up to 250°F. If your application runs hotter than that, FKM seals are available as an option and push the upper limit to 400°F. There are also PTFE, Neoprene, EPDM, and Kalrez options depending on what fluids or temperatures you're working with. EPDM tops out around 300°F, and Neoprene is good down to -65°F but only up to 212°F on the high end.
Question by: Tony H on Dec 16, 2025, 6:17 PM
got a 1/2-14 female npt port here. is this the right female half to screw in, and what size coupling is it
Answer by: Customer Support on Dec 18, 2025, 5:37 PM
The threaded end on this female half is 1/2-14 female NPTF, and the coupling size is -08. It is the socket side (female half) in the HK Series Industrial Interchange, ISO 7241-1 Series B style.
Question by: Randy W on Jan 22, 2026, 9:36 AM
Will this here fitting work alright with hydraulic fluid, or is it more for somethin' else?
Answer by: Customer Support on Jan 23, 2026, 9:21 PM
This quick disconnect is well-suited for hydraulic fluid, thanks to its brass construction and stainless steel springs which offer good corrosion resistance and fluid compatibility.
