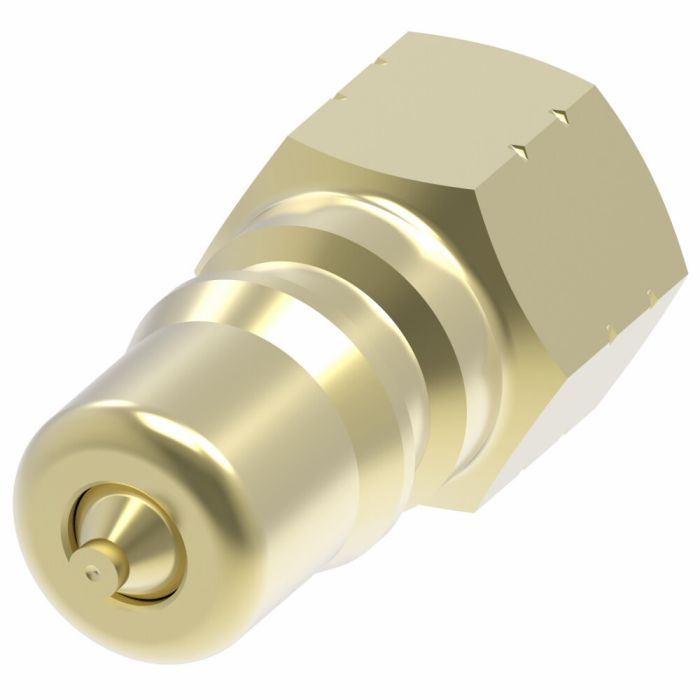

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -08 Coupling, 1/2-14 Female NPT

Ask A Question

Description & Features

The HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect Male Half -08 Coupling 1/2-14 Female NPT by Danfoss Power Solutions (II LLC Aeroquip) is engineered for diverse applications including agriculture fluid transfer transportation and aerospace. Featuring robust brass construction paired with stainless steel springs this coupling provides exceptional corrosion resistance and fluid compatibility.

Designed to meet ISO 7241-1 Series B dimensional requirements this hydraulic quick disconnect ensures reliable performance. The self-sealing poppet valves offer outstanding sealing capabilities across both high and low pressures.

Standard seal material is Buna-N and various seal options are available including PTFE Neoprene FKM EPDM and Kalrezreg;. The coupling operates effectively within a temperature range of -40deg;F to +250deg;F for Buna-N seals extending up to +400deg;F for FKM seals. Additionally its push-to-connect and NPTF end types allow for secure and efficient connections.

Maximum fluid loss during disconnection is limited to 3.50 cubic centimeters and air inclusion is restricted to 3.60 cubic centimeters. This model does not include a safety locking mechanism.

MPN: B4KP26

Supplier Part Number: B4KP26

Specifications

A
2.03
Air Inclusion Max
3.60 Cubic_centimeter
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
Coupling Size
-08
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.50
End Size 2
0.50
End Type 1
Push to Connect
End Type 2
NPTF
Fluid Loss
3.50 Cubic_centimeter
Minimum Working Temperature
-40
Safety locking Mechanism
None
Seal Material
Buna-N
Supplier Part Number
B4KP26
Thread 1
1/2-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1KV80, Alternate Part Number MI-06230748, Alternate Part Number MINO-00015X08869, Alternate Part Number MINO-00402F32492
Product Weight
0.29 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A Price Action
HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -02 Coupling, 1/8-27 Female NPT

B1K11 HK Series Quick Disconnect

-02

1/8-27

Buna-N

1.26

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -04 Coupling, 1/4-18 Female NPT

B2K16 HK Series Quick Disconnect

-04

1/4-18

Buna-N

1.52

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -06 Coupling, 3/8-18 Female NPT

B3K21 HK Series Quick Disconnect

-06

3/8-18

Buna-N

1.76

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -08 Coupling, 1/2-14 Female NPT

B4KP26 HK Series Quick Disconnect

-08

1/2-14

Buna-N

2.03

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -12 Coupling, 3/4-14 Female NPT

B6KP31 HK Series Quick Disconnect

-12

3/4-14

Buna-N

2.36

Product Questions & Answers (3)

Question by: Earl D on Mar 24, 2026, 6:56 PM
got a -08 hose setup already, does this plug end match up with the ISO 7241-1 Series B stuff?
Answer by: Customer Support on Mar 26, 2026, 3:05 PM
For interchange fit, it’s built to meet ISO 7241-1 Series B dimensional requirements and it’s a -08 coupling size, so it’s intended to mate within that Industrial Interchange Series B style.
Question by: Hank C on Feb 5, 2026, 7:08 PM
What kinda fluids can I run through this thing without messin' up the seals?
Answer by: Customer Support on Feb 6, 2026, 7:50 PM
Buna-N seals are standard, good for general use. But you've also got options like PTFE, Neoprene, FKM, EPDM, and Kalrez if you need something more specialized for different fluids or temps.
Question by: Terry R on Jul 8, 2025, 3:43 PM
What kind of seal does this coupling come with standard, and can it handle something like hydraulic oil or maybe some chemical fluids if I swap the seal out?
Answer by: Customer Support on Jul 10, 2025, 2:11 PM
Buna-N is the standard seal, which covers most hydraulic oils and general fluid transfer work just fine. If you're running something more aggressive like certain chemicals or need higher heat tolerance, there are other seal options available: PTFE, Neoprene, FKM, EPDM, and Kalrez. FKM pushes the upper temp limit all the way to 400 degrees F, so that's the go-to for hotter or more chemically demanding setups. Just make sure you match the seal material to whatever fluid you're running.
