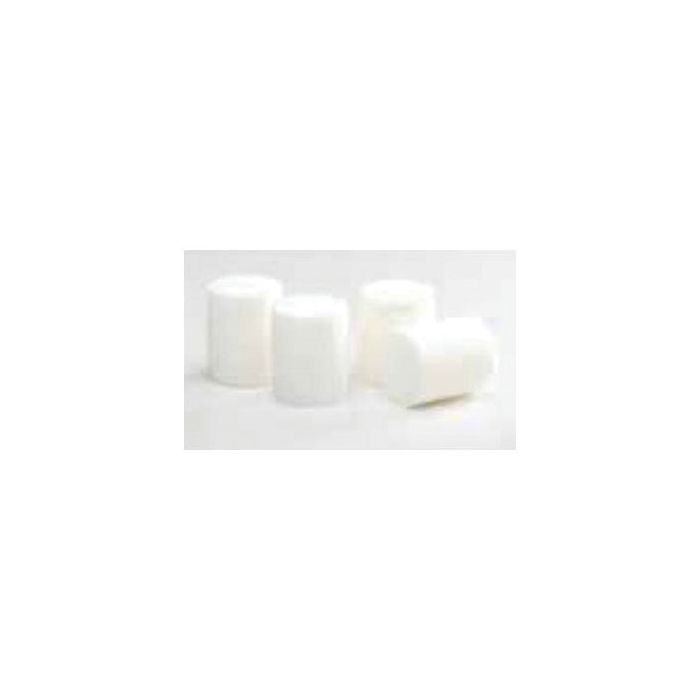

Hose/Tube Cleaning Projectile For 1.42 Inch ID

Ask A Question

Description & Features

The ULTRA CLEAN TECH CORP Hose/Tube Cleaning Projectile UC36 is engineered for efficient cleaning of hydraulic and pneumatic lines fuel lines food and beverage lines steam pipes heat exchangers condensers air conditioning and refrigeration systems. Designed to fit a 1.42-inch inner diameter hose or tube it ensures thorough internal cleaning removing contaminants and debris.

The product features a 1-inch Schedule 40 projectile that fits a variety of nozzles including hose and pipe BSP JIC and tube styles. This flexibility makes it suitable for diverse industrial applications. For optimal results the projectile should be approximately 20% larger than the I.D. for sizes 2 inches or less.

The launcher unit includes an air inlet port with quick disconnect coupling a trigger mechanism for firing the projectile and O-ring seals for positive sealing. The locking faceplate allows for easy nozzle size change. The pressure range for effective use spans from a minimum of 85 PSI to a maximum of 150 PSI.

For more details on compatible nozzles and application assistance please contact us. The wide range of available nozzle sizes ensures compatibility with various industrial setups enhancing the versatility of this cleaning system.

MPN: {{ecc_mpn}}

Supplier Part Number: UC36

Specifications

Brand
Ultra Clean®
Diameter
1.4173 in ID
Series
UC Series
Sg Launcher Unit
Locking Faceplate Pivots Away from Body for Easy Nozzle Size Change, O-ring Seals are Used for Positive Sealing, Air Inlet Port with Quick Disconnect Coupling, Trigger Mechanism for Firing Projectile
Sg Nozzles
A Wide Range of Nozzle Sizes are Available in Four Basic Styles, Hose and Pipe - the Nozzle is Inserted into the Hose or Pipe, JIC - the Male Flared End of the JIC Nozzle Butts Against the Female Flare of the Hose or Tube Fitting, Tube - the Nozzle is Ins
Sg Sizing
To Clean an ID of 2 in or Less, the OD of the Projectile Should be Approximately 20% Larger than the ID if ID is Larger than 2 in, Projectile Should be Approximately 10% Larger than the ID (Individual Circumstances May Require A Smaller or A Larger Projec
Suitable For Use With
1-1/8 in ID Hoses and H25OD Tubes/Pipes

Similar Products

Model Number I.D. Nozzle Package Qty. Price Action
Hose/Tube Cleaning Projectile For 0.28 Inch ID

UC07 Hose/Tube Cleaning Projectile

0.2756 in

For Hose ID: 1/4, For Tube/Pipe OD: H06

100

Hose/Tube Cleaning Projectile For 0.87 Inch ID

UC22 Hose/Tube Cleaning Projectile

0.8661 in

For Hose ID: 5/8, For Tube/Pipe OD: H16

100

Hose/Tube Cleaning Projectile For 1.57 Inch ID

UC40 Hose/Tube Cleaning Projectile

1.5748 in

For Hose ID: 1-1/4, For Tube/Pipe OD: H32

30

Hose/Tube Cleaning Projectile For 1.02 Inch ID

UC26 Hose/Tube Cleaning Projectile

1.0236 in

For Hose ID: 3/4, For Tube/Pipe OD: H19

50

Hose/Tube Cleaning Projectile For 1.30 Inch ID

UC33 Hose/Tube Cleaning Projectile

1.2992 in

For Hose ID: 1, For Tube/Pipe OD: H25

40

Hose/Tube Cleaning Projectile For 1.97 Inch ID

UC50 Hose/Tube Cleaning Projectile

1.9685 in

For Hose ID: 1-1/2, For Tube/Pipe OD: H38

20

Hose/Tube Cleaning Projectile For 2.36 Inch ID

UC60 Hose/Tube Cleaning Projectile

2.3622 in

For Hose ID: 2, For Tube/Pipe OD: H50

15

Hose/Tube Cleaning Projectile For 0.24 Inch ID

UC06 Hose/Tube Cleaning Projectile

0.2362 in

For Hose ID: 3/16, For Tube/Pipe OD: H06

100

Hose/Tube Cleaning Projectile For 2.76 Inch ID

UC70 Hose/Tube Cleaning Projectile

2.7559 in

For Hose ID: 2-1/2, For Tube/Pipe OD: H50

15

Product Questions & Answers (2)

Question by: Jerry D on Oct 23, 2025, 3:33 PM
got a hose that measures about 1.42 on the inside. is UC36 the right projectile size for that?
Answer by: Customer Support on Oct 25, 2025, 6:17 AM
Fit is based on hose or tube inside diameter. UC36 is meant for a 1.42 inch I.D. line (listed I.D. is 1.4173 in). For I.D. sizes 2 inches or less, the projectile outside diameter is typically about 20% larger than the I.D. so it wipes the inside as it travels.
Question by: Ronnie W on Apr 22, 2025, 6:59 AM
what's the right pressure to run one of these projectiles through a 1.42 inch line? got an air supply but not sure if what i got is enough
Answer by: Customer Support on Apr 24, 2025, 6:26 AM
Anywhere from 85 to 150 PSI will get the job done. Below 85 and you're not likely to get a clean pass through, and you don't want to push past 150 either. Most shop air setups in that range will work fine as long as your supply stays steady through the shot.
