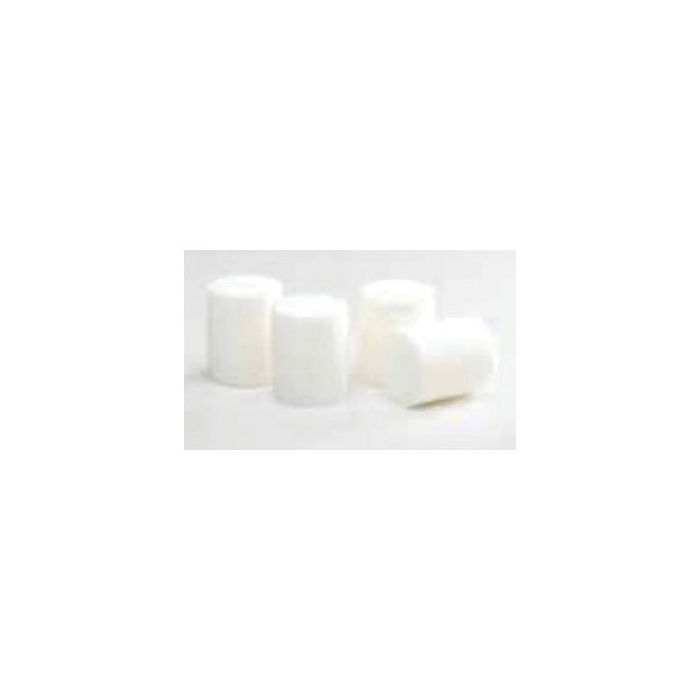

Hose/Tube Cleaning Projectile For 2.36 Inch ID

Ask A Question

Description & Features

Designed for comprehensive cleaning in various industrial applications, the Ultra Clean Tech Corp Hose/Tube Cleaning Projectile UC60 is tailored for hydraulic and pneumatic lines, fuel lines, food and beverage lines, steam pipes, and more.

This projectile is engineered with a 2.3622-inch internal diameter to provide optimal cleaning performance. It features a versatile range of nozzle options suited for hoses and tubes, including JIC, BSP, and tube-specific nozzles.

Operating within a pressure range of 85 to 150 PSI, the UC60 ensures effective cleaning without compromising the integrity of the system. The sizing strategy recommends a projectile that is approximately 10% larger than the internal diameter for IDs greater than 2 inches, ensuring thorough removal of contaminants.

For ease of use, the cleaning system includes a launcher unit with a pivoting faceplate for quick nozzle changes, O-ring seals for secure fit, and a quick-disconnect air inlet port. Detailed application assistance and information on launcher and nozzle compatibility are available upon request.

Supplier Part Number: UC60

Specifications

Brand
Ultra Clean®
Diameter
2.3622 in ID
Series
UC Series
Sg Launcher Unit
Locking Faceplate Pivots Away from Body for Easy Nozzle Size Change, O-ring Seals are Used for Positive Sealing, Air Inlet Port with Quick Disconnect Coupling, Trigger Mechanism for Firing Projectile
Sg Nozzles
A Wide Range of Nozzle Sizes are Available in Four Basic Styles, Hose and Pipe - the Nozzle is Inserted into the Hose or Pipe, JIC - the Male Flared End of the JIC Nozzle Butts Against the Female Flare of the Hose or Tube Fitting, Tube - the Nozzle is Ins
Sg Sizing
To Clean an ID of 2 in or Less, the OD of the Projectile Should be Approximately 20% Larger than the ID if ID is Larger than 2 in, Projectile Should be Approximately 10% Larger than the ID (Individual Circumstances May Require A Smaller or A Larger Projec
Suitable For Use With
2 in ID Hoses and H50OD Tubes/Pipes

Similar Products

Model Number I.D. Nozzle Package Qty. Price Action
Hose/Tube Cleaning Projectile For 0.28 Inch ID

UC07 Hose/Tube Cleaning Projectile

0.2756 in

For Hose ID: 1/4, For Tube/Pipe OD: H06

100

Hose/Tube Cleaning Projectile For 0.87 Inch ID

UC22 Hose/Tube Cleaning Projectile

0.8661 in

For Hose ID: 5/8, For Tube/Pipe OD: H16

100

Hose/Tube Cleaning Projectile For 1.57 Inch ID

UC40 Hose/Tube Cleaning Projectile

1.5748 in

For Hose ID: 1-1/4, For Tube/Pipe OD: H32

30

Hose/Tube Cleaning Projectile For 1.02 Inch ID

UC26 Hose/Tube Cleaning Projectile

1.0236 in

For Hose ID: 3/4, For Tube/Pipe OD: H19

50

Hose/Tube Cleaning Projectile For 1.30 Inch ID

UC33 Hose/Tube Cleaning Projectile

1.2992 in

For Hose ID: 1, For Tube/Pipe OD: H25

40

Hose/Tube Cleaning Projectile For 1.97 Inch ID

UC50 Hose/Tube Cleaning Projectile

1.9685 in

For Hose ID: 1-1/2, For Tube/Pipe OD: H38

20

Hose/Tube Cleaning Projectile For 0.24 Inch ID

UC06 Hose/Tube Cleaning Projectile

0.2362 in

For Hose ID: 3/16, For Tube/Pipe OD: H06

100

Hose/Tube Cleaning Projectile For 2.76 Inch ID

UC70 Hose/Tube Cleaning Projectile

2.7559 in

For Hose ID: 2-1/2, For Tube/Pipe OD: H50

15

Hose/Tube Cleaning Projectile For 1.42 Inch ID

UC36 Hose/Tube Cleaning Projectile

1.4173 in

For Hose ID: 1-1/8, For Tube/Pipe OD: H25

40

Product Questions & Answers (2)

Question by: Danny W on Dec 13, 2025, 7:12 AM
what happens if one of these gets stuck halfway through my hose
Answer by: Customer Support on Dec 14, 2025, 8:35 AM
Shooting an empty discharge into the opposite end of the line will push it right back out. Firing issues usually happen if the projectile is too large for the inner diameter or if your air pressure drops below the 85 PSI minimum.
Question by: Terry W on Nov 29, 2025, 9:24 AM
these projectiles come in a pack of 15, right? just want to make sure i'm ordering enough for a full cleaning job on our 2.36 inch lines
Answer by: Customer Support on Nov 30, 2025, 11:18 AM
Correct, the UC60 comes 15 per package. For a 2.36 inch ID line, the sizing guidance calls for a projectile roughly 10% larger than the internal diameter since it's over 2 inches, and this one is spec'd at 2.3622 inches to hit that target. Whether 15 is enough depends on how many passes and how many lines you're running, but that's the standard pack quantity for this projectile.
